Brand Name: Baiyilun
Model Number: BYL102B
Place of Origin: Zhejiang, China (Mainland)

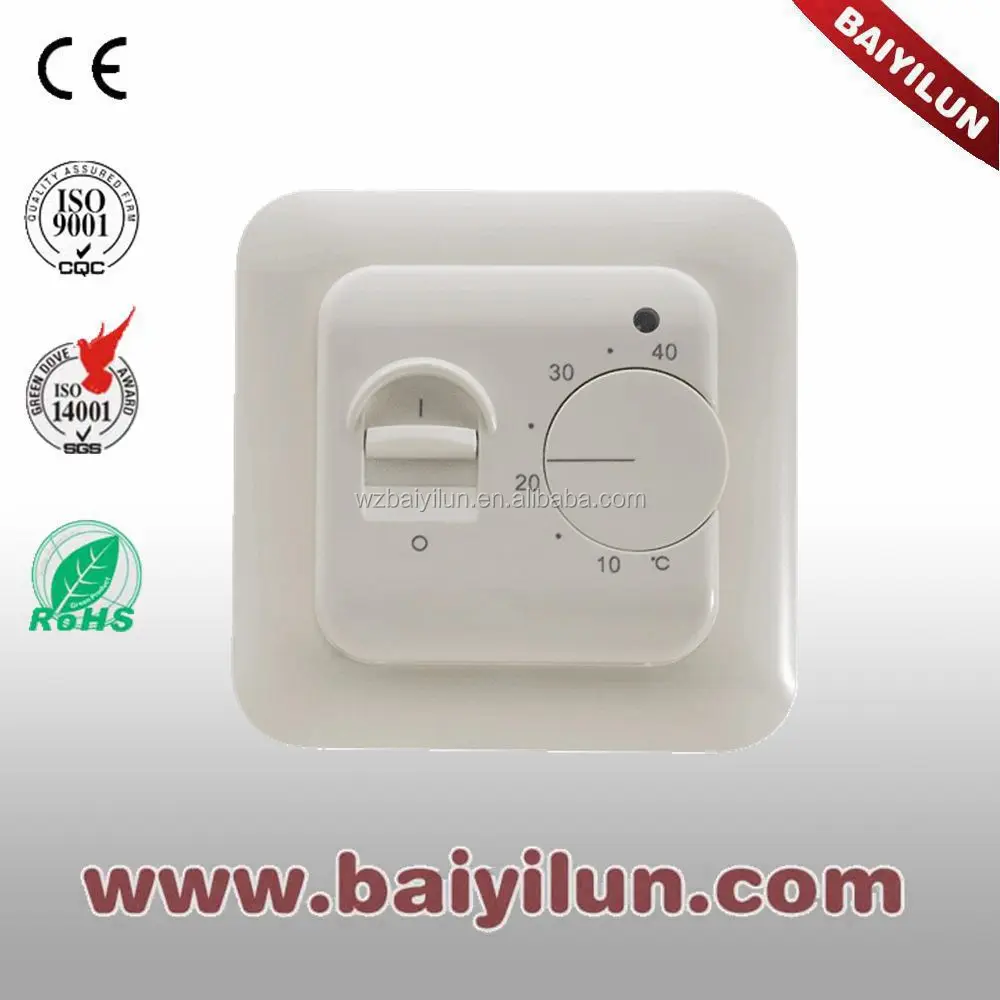

CE 16A Electronic Thermostatic for room thermostat
Avonflow Baiyilun TRV Co.,Ltd. specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.
Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
Operation:
1. I–ON . O - OFF
2. Temperature setting:5-40 °C
3. LED light: red on heating
BYL102B easy heating thermostat manual
Type :floor Heating or heating
Imax=16A
Shell: anti-flammable PC
with floor sensor
It is mounting in a standard back box.
LED indicates when the heating is on.
Mini size junction box and suitable for the entire world.
CE Certificated
Technical parameters:
Power supply: 230 V 50 Hz
Power consumption: 5 W
Adjusting range: 5°C ~ 40°C
Differential per. temp. : 0.5°C
Operating temperature: - 5°C ~ 50°C
Degree of protection: IP20
Material: self-extinguishing PC
Floor sensor: NTC sensor 3 m
Product features
The thermostat has a range of +5°C to +40°C. When the heat is on, the LED is red. When turned off, the LED is not lit. Through setting wheel set the desired temperature. When the temperature of the heating element reaches the desired temperature at the heat controller, the unit will go into sleep mode while the temperature of the heating element does not fall below 2 degrees of temperature regulators installed on the temperature. After that, the thermostat will switch the load on the heating element.
About Packing
50 sets per carton with paper box ,carton size:51x36x22 cm;
40 sets per carton for blister packing, carton size : 48x35x29 cm;
100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
About 20000 sets /20” container with blister packing;
About 25000 sets/20” container with carton box;
Pallet packing is available.
About Guarantee:
2 Years guarantee counted from the days arrived in your warehouse.
Specifications
Size:DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'') Angle valve ,Straight valve, 3 way valve, H valve
Used Connection Pipe:
PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe
OEM condition
Logo for the thermostatic head, the MOQ is 3000 pieces.
Logo for the thermostatic valve body, the MOQ is 10000 pieces.
Payment terms:
30%TT as deposit payment,70%TT against the Copy of B/L
L/C is available.
Delivery terms:
FOB NINGBO or FOB SHANGHAI can be choosed.
The production time is 25 days normally.
