Brand Name: Baiyilun
Model Number: BYL106B
Place of Origin: Zhejiang, China (Mainland)

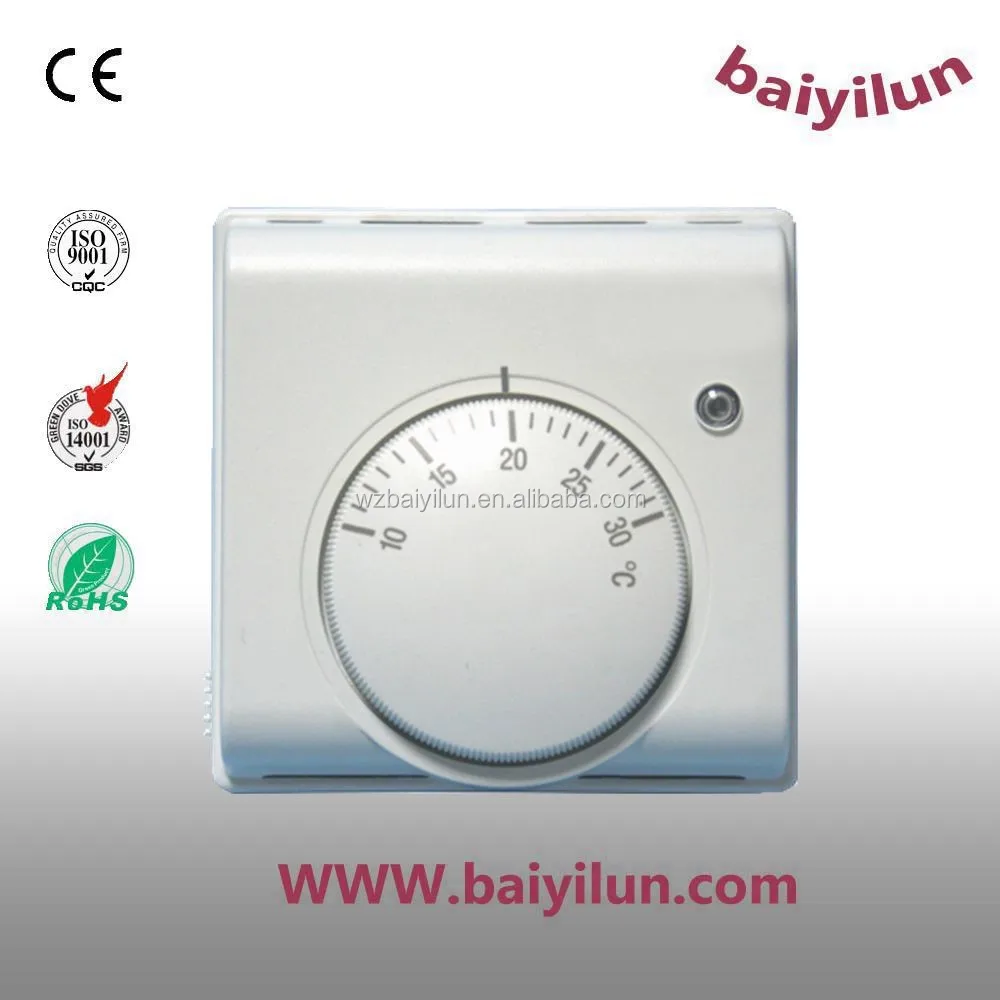

underfloor 3A mechanical room smart electric thermostat
Avonflow Baiyilun TRV Co.,Ltd. specialized in the manufacture of thermostatic radiator valve and room thermostat.We have produced these products for more than ten years and got a lot of experiences in this line.
Since now,we have exported our goods to over 30 countries,such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
BYL106B thermostat for under floor heating system.
Mechanical heating thermostats adopt mechanical contact to control the on/off of the motorized valve. BYL106B electronic thermostat for mounting in standard wall box, the thermostat is adjustable to required temperature from +5/+40 celsius degree, the LED shows that the heat is ON, the thermostat is recommended for control of electric heating devices or ON/OFF valve actuator used for in water-based heating systems.
Used to control the fan coil, electric valve, air valve and other equipment, refrigeration / heating, in order to maintain the indoor temperature.
CE Certificated
Adjusts temperature scope:10Celsius to 30Celsius
Display:at 20Celsius <1 Celsius
Temperature sensor:Inflated film case
Electric appliance parameter:
Thermostat 16A 220VAC 50/60Hz
Mount height:1.5meter
Control mode:heating
Shell material: flame-retardant PC
Protective casing : IP20
Product features
Double metal diaphragm pneumatic membrane box control, ensure the accuracy of temperature
The temperature sensitive, accurate temperature measurement
The long service life, more than 100000 times
The two / three line control valve
The light display, convenient operation
Technical parameters
Rated voltage: 220VAC ±10%, 50/60Hz
Ambient temperature: -25 ~55℃
Temperature control accuracy: ±1℃
Temperature control range: 10-30℃
Self power consumption: <2W
Shell: the use of flame retardant PC material
Terminal: screw fixation, can accept the maximum 4mm2 wire
About Packing
50 sets per carton with paper box ,carton size:51x36x22 cm;
40 sets per carton for blister packing, carton size : 48x35x29 cm;
100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
About 20000 sets /20” container with blister packing;
About 25000 sets/20” container with carton box;
Pallet packing is available.
About Guarantee:
2 Years guarantee counted from the days arrived in your warehouse.
Specifications
Size:DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'') Angle valve ,Straight valve, 3 way valve, H valve
Used Connection Pipe:
PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe
OEM condition
Logo for the thermostatic head, the MOQ is 3000 pieces.
Logo for the thermostatic valve body, the MOQ is 10000 pieces.
Payment terms:
30%TT as deposit payment,70%TT against the Copy of B/L
L/C is available.
Delivery terms:
FOB NINGBO or FOB SHANGHAI can be choosed.
The production time is 25 days normally.
