Brand Name: SANHENG
Model Number: SH-6510/7
Place of Origin: Zhejiang, China (Mainland)

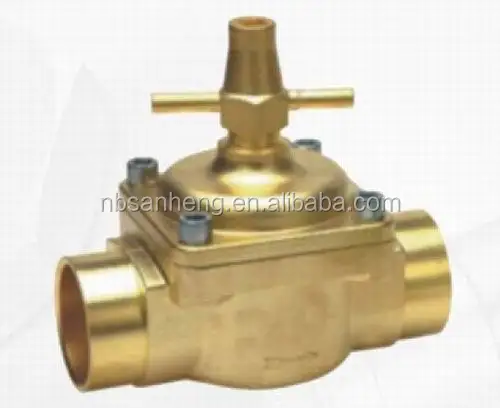

SH-6510/7 Good Quality Globe Valve
Product Introduction
Globe valve could be installed in commercial refrigeration system, civil and industrial air-conditional systems. The spindle is automatic closed; it can be installed in any position which needs to change the direction.
Features
1)Valve plate of polyamide nylon to give complete shut-off with minimum torque.
2)Valve handles with special design, can be shut-off without the use of tools.
3)Adapt to R22, R502, R134a, R407C, R410, R404a, R600a refrigerants and so on.
4)Maximum working prossure: 4.5Mpa (Air); 6.8Mpa (Hydraulic)
5)Working temperature:-40℃~+140℃
Specification
Model | ODS | DN | B | H | M | L | C |
(inch) | mm | mm | mm | mm | mm | mm | |
SH-6510/7 | 7/8 | 25 | 20 | 27 | M10 | 100 | 132 |
SH-6510/9 | 1-1/8 | 22 | |||||
SH-6510/11 | 1-3/8 | 32 | 25 | 34 | 118 | 140 | |
SH-6510/13 | 1-5/8 | 38 | 30 | 37 | 141 | 160 | |
SH-6510/17 | 2-1/8 | 48 | 30 | 42 | 172 | 174 |
PRODUCT APPLICATION
Used in air conditioner.
v Pay by T/T, LC
v Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse
paypal fee when you choose it.
v Loading Port: ShangHai or NingBo, China
v Samples are available within 7-10 working days.
v Mass Production Delivery: 20 -50days after sample confirmation
