Home > Products > Materials > Insulation Material

fire resistant embossed aluminum foil XPS polystyrene expanded board Foam Duct sheet Panel

fire resistant embossed aluminum foil XPS polystyrene expanded board Foam Duct sheet Panel

Price:

US 3-4 / Square

Min.Order Quantity:

1000 Square Meter/Square Meters

Supply Ability:

per

Port:

Shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: Plastic films
Delivery Detail: --

Specifications

XPS Extruded Polystyrene Insulation Shee

Item No.: WT2-2A
Material: Double side aluminum foil+Polystyrene(XPS)Foam
Thickness of aluminum foil: 40um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)

Length can be cut as your requirement


Item No.: WT2-2B
Material: Double side aluminum foil+FR Polystyrene(XPS) Foam
Thickness of aluminum foil: 40um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)

Length can be cut as your requirement

Technical Data Sheet of Polystyrene(XPS) Foam Insulation Panel
ITEM	UNIT	SPECIFICATION
Density	Kg/m3	40
Thermal conductivity, 90 days, 10°C	W/mK	0.027~0.03
Compressive strength	kPa	≥300
Flexural Strength	Mpa	1.06
Tensile strength	kPa	≥300
Water absorption rate	%	≤ 1.00
Water vapor permeance	Ng/(m.s.pa)	≤3
Dimension Change Rate	%	≤ 2
combustion performance	~	Flame Retardancy B1
Temperature limits	°C	-50 to 75°C
Standard Size	mm	3000120020

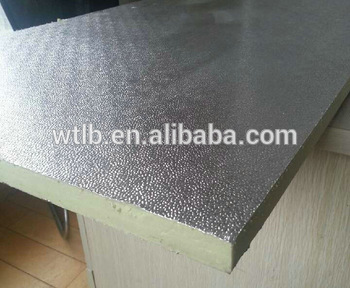

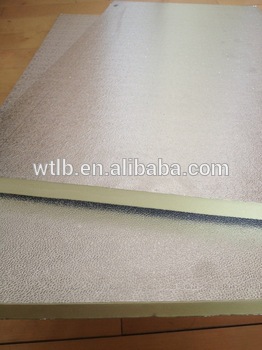

Product pictures:

WT-aluminum foil common XPS board (1)

Application:

Pre-Insulated-Air-Ducting-Panel 10-1
