World Golden Quality Steel Vessel Vulcanizer

Price:

US 7500-65000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

30 Set/Sets per Month

Port:

QINGDAO

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: standard package
Delivery Detail: --

Specifications

World Golden Quality Steel Vessel Vulcanizer

OVERVIEW

1. Electric heating air.

2. Evenly heat distribution.

3. Pre-set and pre-adjust tem & pressure.

4. High quality thermal insulation material

5. High temperature silicone seal ring and flange to seal

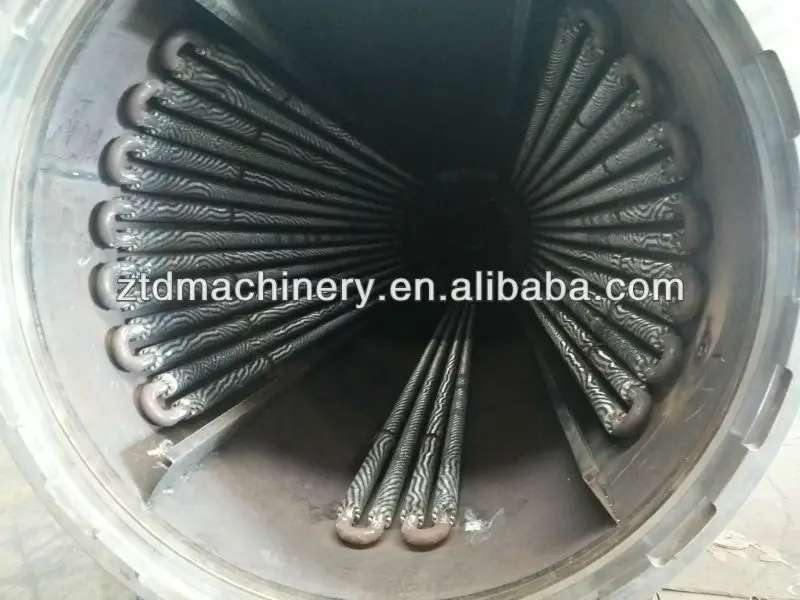

innerpart of electric heating steam heating tube steam direct heating autoclave

APPLICATION

Widely used for rubber product: natural, nitrile, neoprene, butyl, polyurethane, silicone, carbon fiber rubber

Rubber product vulcanizing: rubber covered roller, hose, shoes, cable, LCD, old tyre,

Wood drying, wood impregnation,

Rubber precure, tread precure

Textile steaming,

DETIALED TECHNOLOGY

1.Tank gate Manual, electrical or pneumatic opening

2. High safety Six sets of safety interlocks is adopted.

3. Inflatable seal Good sealed, no leckage.

4. Heat preservation Insulation layer reduce heat lost

5. Automatic Industrial computer control, PLC system, running automatic

6. Air blower To make heat distribute evenly

7. View panel Display running state,

8. Recorder Paper recorder or digital recorder

9. Alarm Alarm automatic after finish working or stoppage happen

SAFETY INTERLOCK AUTOMATIC CONTROL BOX

PUEUMATIC OPEN GATE ELECTRICAL OPEN

Technical parameters

MOLD	CONTROL	POWER	DIA (mm)	LEN (mm)	MDM	PRE (Mpa)	TEM (°C)
DL1504A.3	Automatic	ELECTRIC	1500	4,000	Air	0.15~0.65	120~310
DL0206A.3			2000	6,000			120~310
DL0304A.3			3000	4,000			120~310
DL0410A.3			4000	10,000			120~310
DL0509A.3			5000	9,000			120~310
DL0610A.3			6000	10,000			120`310
RELATED TYPE:
DL10-03B.3 DL15-05B.3 DL20-06B.3 DL30-08B.3 DL40-05B.3 DL60-07B.1 DL70-20B.1 DL80-50B.1 DL80-75B.1 DL90-100B.1 DL10-03B.2 DL10-05B.2 DL15-07B.2 DL20-08A.2 DL20-10A.2


Wood Drying Autoclave

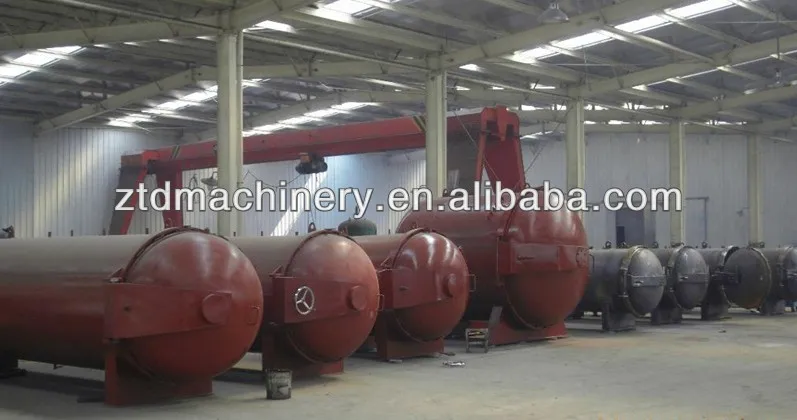

Workshop

Shipping Scene

Certification
