Brand Name: COOL TEMP
Model Number: FNH49
Place of Origin: Zhejiang, China (Mainland)

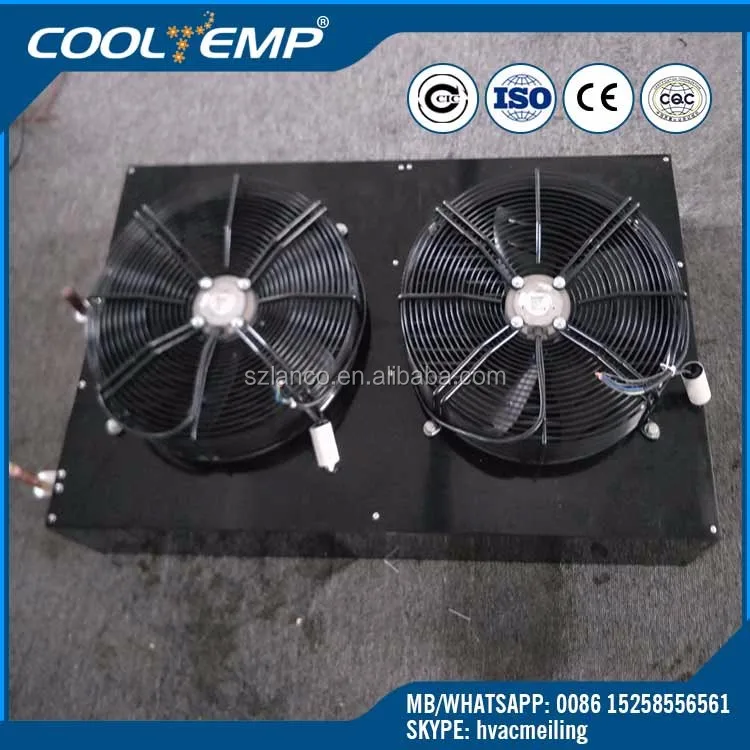

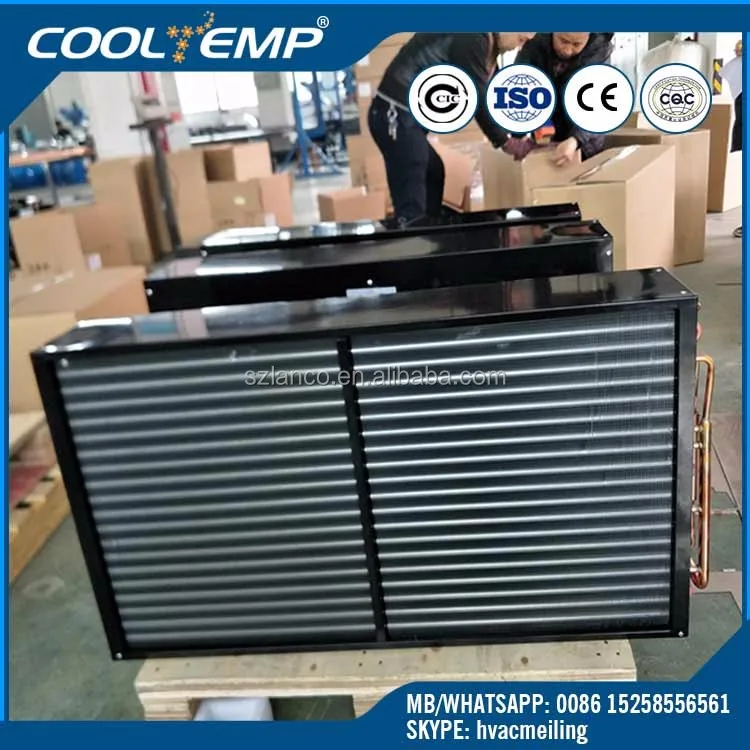

Refrigeration Air-Cooled Condenser For Wine Cellar

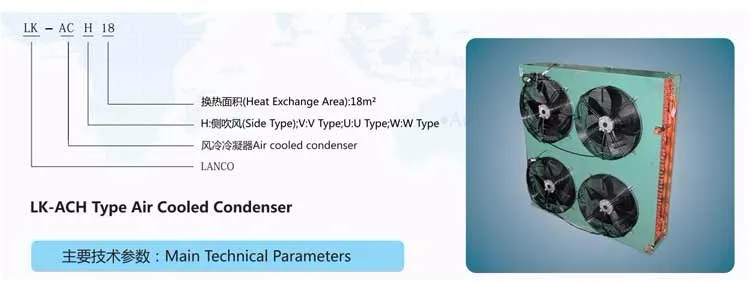

1. HOW To Named Our Air Cooled Condenser Model?

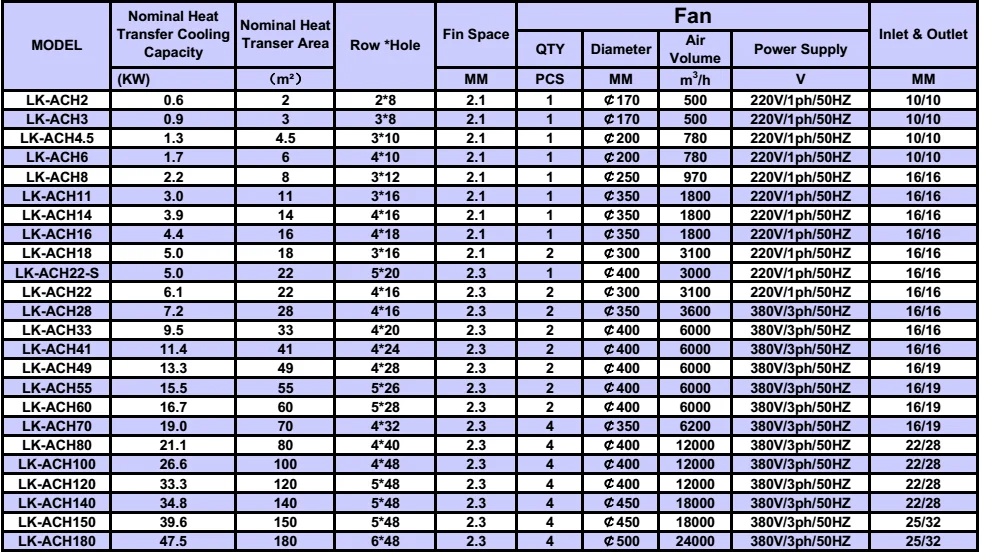

2. WHAT'S Air Cooled Condenser's Technical Inforamtion?

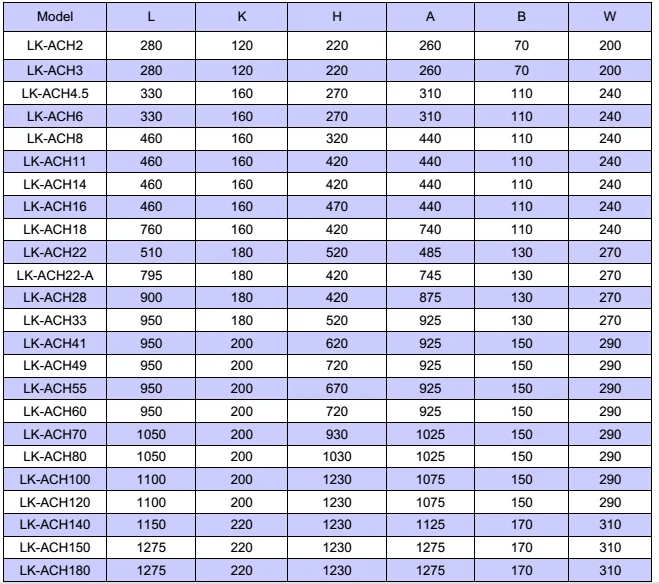

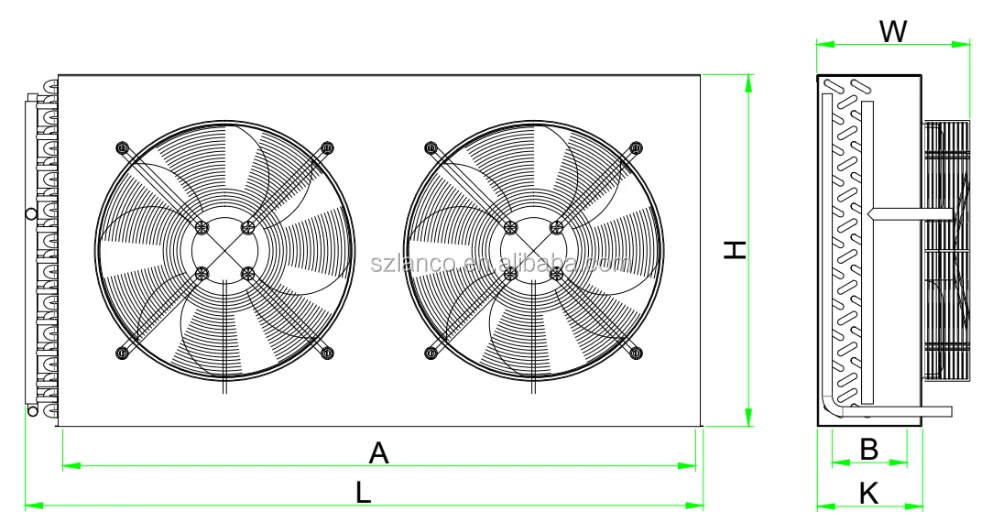

3. WHAT'S Air Cooled Condenser's Installing Dimension?
Remarks:
Casing material can be Galvanized sheet,Stainless Steel, Aluminum and Galvanized coating aluminum etc material .
1.we take very strict inspection for each product before shipping ,and the soldering by our professional and experienced workers ;
2.and we have kinds of mould for your choose as below:
No. |
Diameter Of Copper Tube (mm) |
Moulds | Pitch Of Fins (mm) | Smooth Copper Tube | Inner Grooved Copper Tube | Remarks |
1 |
9.52 |
25*21.65 | 1.8 ~ 6 | Yes | Yes | |
2
|
7.94 |
25*21.65 | 3.5~5.5 | Yes | Yes | |
3 |
7.94 |
22*19.05 | 1.8~4.6 | Yes | Yes | |
4
|
7.94 |
21*18.19 | 1.8~2.5 | Yes | Yes | |
5 |
7 |
21*12.7 | 1.2~25 | Yes | Yes | |
6 |
14.5 |
52*45 | 3.5~9.5 | Yes | Yes | |
7 |
12.7 |
31.75*27.5 | 1.8~6 | Yes | Yes | |
8 |
9.52 |
31.75*27.5 | 3.5~7 | Yes | Yes | |
9 |
12.7 |
38.1*33 | 4.5~9 | Yes | Yes |
1.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
2. We and our shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
We Manufacture Work of Arts for HVAC System in our Standard Workshop.
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.
Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 - 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
