0~10V AC Unit Thermostat with Five Speed (S600D2)

FOB Price:

Open price

Min.Order Quantity:

200 Piece

Supply Ability:

25000 Piece per Month

Port:

SHANGHAI

Place of Origin:

ZHEJIANG

Payment Terms:

T/T, PayPal

Brand:

OKONOFF

Products Model:

S600D2

Products Details
Company Profile

Quick Details

Brand Name: OKONOFF

Model Number: S600D2

Place of Origin: ZHEJIANG

Packaging & Delivery

Packaging Details: CARTON
Delivery Detail: 25DAYS

Specifications

Feature:
1. LCD screen display, relay contact output
2. Manual (Stepless speed) or auto fan speed
Manual (Five speed) or auto fan speed
3. RS485 communication, Modbus RTU protocol, baud rate: 4800
4. Key lock function (Via communication way to fulfill)
5. It has 0~10V speed signal and 10V switch signal. (It could control 0~10V fan coil unit. It could control 0~10V fan coil unit with 10V switch)
6. Internal sensor or External sensor to control temperature

Technical parameter:
Working voltage:AC220V+-10%
Power:<1W
Current load:3A ( resistive load )
Temperature control precision:+-0.5ºC
Storing environment temperature:-20~70ºC,
Relative humidity: RH<93%(Non-condensate)
Working environment:-10~60ºC
Shell material: Flame retardant PC
Dimension:86*86*40.5mm
Installation:86 type standard box

Model spec:

Model	Device	The way of temperature control	0~10V	10V switch	Five speed	Stepless speed
S600D1	2-pipe	Internal sensor	√	√	√
S600D2	2-pipe	External sensor	√		√
S600D1S	2-pipe	Internal sensor	√	√		√
S600D2S	2-pipe	External sensor	√			√
S600DF1	4-pipe	Internal sensor	√	√	√
S600DF2	4-pipe	External sensor	√		√
S600DF1S	4-pipe	Internal sensor	√	√		√
S600DF2S	4-pipe	External sensor	√			√

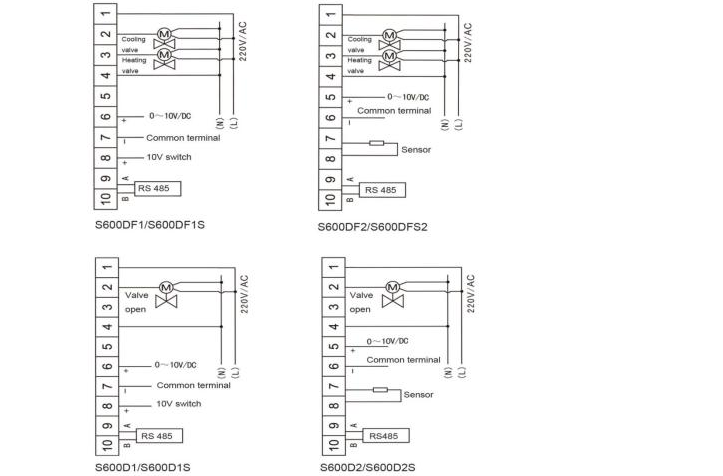

Wiring diagram:
