Water Mixing Temperature Control System (HS240)

FOB Price:

Open price

Min.Order Quantity:

20 Set

Supply Ability:

2000 Set per Month

Port:

SHANGHAI

Place of Origin:

ZHEJIANG

Payment Terms:

L/C, T/T, PayPal

Brand:

OKONOFF

Products Model:

HS240

Products Details
Company Profile

Quick Details

Brand Name: OKONOFF

Model Number: HS240

Place of Origin: ZHEJIANG

Packaging & Delivery

Packaging Details: CARTON
Delivery Detail: 20DAYS

Specifications

Technical parameter:
Temperature setting range: 35ºC~60ºC (factory set 50ºC)
Temperature control precision: ±3ºC
With linkage input or output function
System circulating pump lift: 6M; maximum lift: 40L/MIN
System nominal pressure: 1MPa
Voltage: AC220±10% 50/60Hz
Power consumption: 100W (when pump in high speed)
Condition: supply water temperature≤95ºC
Environment temperature: -10ºC~50ºC
Relative humidity: RH≤80%
System with freeze proofing and manual operation function
External dimension:

the overall thickness: 160mm

Feature:

LCD screen display
Operating easily, temperature controlling is quickly and accurate.
Mistaken code displaying function
Temperature adjustment
Key lock function
Anti-blocking function
High temperature protection function
Having mainframe linkage function with room thermostat or centralized controller.

Model spec:

Model	Climate Compensation	Display Panel	Antifreeze	Linkage Input	Linkage Output	Flooding Water Direction	Tank
HS240	×				×	Left	×
HS240B	×				×	Left	1

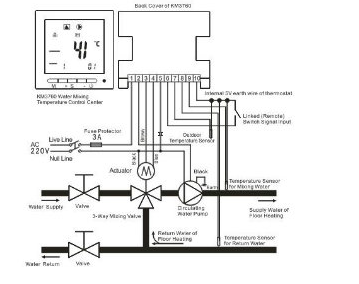

Installation:
