Home > Products > Air Conditioner > Residential Air-conditioner

Small 12000 btu 1 ton wall mounted split type air conditioner

Small 12000 btu 1 ton wall mounted split type air conditioner

Price:

US 135-299 / Set

Min.Order Quantity:

100 Set/Sets

Supply Ability:

500000 Set/Sets per Year

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

AKL or OEM

Products Model:

KF-35GW/X

Products Details
Company Profile

Quick Details

Brand Name: AKL or OEM

Model Number: KF-35GW/X

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 1pc/carton box
Delivery Detail: 20-35days after all information confirmed and payment

Specifications

Small 12000 btu 1 ton wall mounted split type air conditioner

1:Use the known brand rotary type compressor;
2:High Efficient Internal Thread Copper pipe;
2:LED digital display, Fault Self-Diagnose Code Showing;
3:Self-diagnose capability, error code showing;
4:Intelligent Defrost,Independent Dehumidification,Sleep Mode,Quiet Operation;
5:Low Voltage Startup,Auto—protection,Auto Restart;
6:Optional Refrigerant:R410A & R22 ;
7:Optional Voltage:220V/50Hz & 220V/60Hz;
8:8:With CE,RoHS ,ISO9001, ISO14001 standard;

9:Sales Area:Mid East,Africa ,South America,Europe,Asia,Central America,Oceania;

X-Series
Model	9000BTU	12000BTU	18000BTU	24000BTU
0.75Ton	1Ton	1.5Ton	2Ton
Factory Model	Cooling	KF-25GW/X	KF-35GW/X	KF-50GW/X	KF-70GW/X
Cooling&Heating	KFR-25GW/X	KFR-35GW/X	KFR-50GW/X	KFR-70GW/X
Optional Power Supply	Ph-V-Hz	1.220V-240V/50Hz 0r 1.208V-230V/60Hz
Rated Cooling Capacity	w	2500	3500	5000	7000
Rated Cooling input	w	960	1370	1920	2750
Rated Cooling Current	A	4.4	6.2	8.7	12.5
EER	Btu/w.h,w/w	9.4/2.6	8.8/2.55	9.4/2.6	8.7/2.55
Rated Heating Capacity	w	2550	3500	5050	7050
Rated Heating input	w	940	1320	1900	2710
Rated Heating current	A	4.3	6	8.7	12.3
COP	(w/w)	2.7	2.65	2.65	2.6
Operation temp	°C	18-30	18-30	18-30	18-30
Ambient temp	°C	-7-53	-7-53	-7-53	-7-53
Indoor / Outdoor unit Noise	dB(A)	36/50	38/52	39/55	42/62
Indoor / Outdoor unit Weight	Kg	8/28,	10/35,	14/48,	17/55,
Outdoor Unit Net Dimension	mm	640240490	710260540	780260540	810285640
Outdoor Unit Packing Dimension	mm	720310550	790340600	860340600	910390710
Indoor unit Net Dimension	mm	680188245	790187270	900220302	1020215320
Indoor unit Packing Dimension	mm	745253305	875285345	970285370	1100290390
Qty ’ per 20’ /40'HQ	set	135/350	120/270	110/240	70/180
Note:All the data in the brochure is only for reference,designs and specifications might be changed without prior notice for;

X-Series

Model

9000BTU

12000BTU

18000BTU

24000BTU

0.75Ton

1Ton

1.5Ton

2Ton

Factory Model

Cooling

KF-25GW/X

KF-35GW/X

KF-50GW/X

KF-70GW/X

Cooling&Heating

KFR-25GW/X

KFR-35GW/X

KFR-50GW/X

KFR-70GW/X

Optional Power Supply

Ph-V-Hz

1.220V-240V/50Hz 0r 1.208V-230V/60Hz

Rated Cooling Capacity

2500

3500

5000

7000

Rated Cooling input

960

1370

1920

2750

Rated Cooling Current

4.4

6.2

8.7

12.5

EER

Btu/w.h,w/w

9.4/2.6

8.8/2.55

9.4/2.6

8.7/2.55

Rated Heating Capacity

2550

3500

5050

7050

Rated Heating input

940

1320

1900

2710

Rated Heating current

4.3

8.7

12.3

COP

(w/w)

2.7

2.65

2.6

Operation temp

°C

18-30

Ambient temp

°C

-7-53

Indoor / Outdoor unit Noise

dB(A)

36/50

38/52

39/55

42/62

Indoor / Outdoor unit Weight

8/28,

10/35,

14/48,

17/55,

Outdoor Unit Net Dimension

640*240*490

710*260*540

780*260*540

810*285*640

Outdoor Unit Packing Dimension

720*310*550

790*340*600

860*340*600

910*390*710

Indoor unit Net Dimension

680*188*245

790*187*270

900*220*302

1020*215*320

Indoor unit Packing Dimension

745*253*305

875*285*345

970*285*370

1100*290*390

Qty ’ per 20’ /40'HQ

set

135/350

120/270

110/240

70/180

Note:All the data in the brochure is only for reference,designs and specifications might be changed without prior notice for;

AKL Heat Pump Technology Co., Ltd founded in 2002, is a professional manufacturing enterprise that specializes in the development & research, manufacturing and sales of air conditioner and air source heat pump. We are located in the port city, Ningbo which is a household appliance producing base in china.

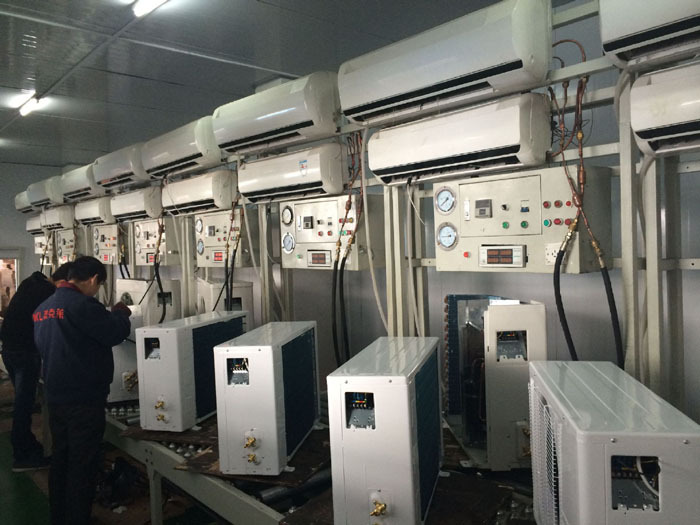

Our company has the advanced product performance laboratory and perfect inspection equipment for production. The people in charge of technical development and quality management are all the professionals from the industry, so we have strong abilities of technical development and quality management. We have passed the international quality certificates like CCC, CE, SASO, ISO9001, ISO1400, RoHS, etc.

So far, AKL Company has an annual output of air conditioner and air source heat pump about 600,000 sets. We have rich experience in producing OEM products. More than 80% of air conditioners and air source heat pumps are sold to more than 50 countries and regions, such as Europe, Africa, South America, Asia, Taiwan, etc. We have the qualification to self-operate import and export
