Grade A boiler supplier HTEG 75 3 82 M circulating fluidized bed boiler

Grade A boiler supplier HTEG 75 3 82 M circulating fluidized bed boiler

FOB Price:

US 500000-1000000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Year

Port:

Qingdao

Place of Origin:

China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

HTEG

Products Model:

HTEG-375/3.82-M

Products Details
Company Profile

Quick Details

Brand Name: HTEG

Model Number: HTEG-375/3.82-M

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy package
Delivery Detail: Shipped in 45 days after payment

Specifications

Description:

Grade A boiler supplier HTEG-75/3.82-M circulating fluidized bed boiler

CFB boiler was introduced to market application in the 1980's. Because its fuel (and desulfurizing agent) is combusted repeatedly at low temperature with desulfurization reactions under the fluidized bed condition, it is a new generation of multiple-effect, low pollution, clean combustion boiler.

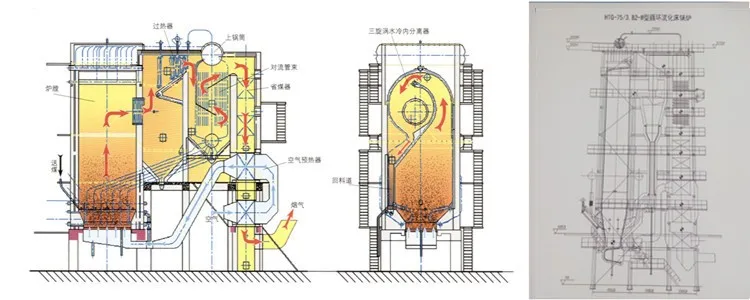

1.The boiler stucture is (single) double cylinder transversal natureal circulation

2.the hearth outlet is equipped with high -temperature vortes separator ,which runs smooth and has a high separating rate

3.It adopts imported refractory steel to manufacture the voetes throat ,which resists to high remprature and abrasion

4.The recycle decice is composed of two small U valve and used them to recyle ,which lead to the uniform distribution of the recycle material and avoids the local accumulation on the frid plate so as no to influence the fuildization quality

5.U-shapre materla recycle device can automatically balance the intake flow and re reclyle fow withour manual adjsutmentunder operation

6. The water-cool wall pipes and funnel pipes attatched to the under body of hearth are all equipped with abrasion resistance device to assure the life expectancy of th heated part

7.There is no heat surhace of buried pipes which lay inside the hearth ,which avoids the abrasion problem of buried pipes

8The fluided bed hearth and vortes separeator adopt fluided bed abrasion rsistent modling bricks and fluideized bed abrasion resistant casting material ,to secure the long termopration of boilers

Application HTEG-75/3.82-M circulating fluidized bed boiler:

CFB steam boiler is widly used in power station or power plant.

Technical Parameters

Boiler Main Design Parameters
Description	Unit	Data
Rated evaporation	T/h	75
Rated steam pressure	Mpa	3.82
Rated steam temp.	℃	450
Feed water temp.	℃	150
Primary and secondary air preheating temp.	℃	150
Available fuel	soft coal,blind coal,lean coal,lignite coal
Heat efficiency(coal type:soft coal)	%	89.3

Boiler basic structure Parameters
Description		Data(mm)
boiler chamber width		5292
boiler chamber depth		3240
boiler chamber height		24700
drum central line level		32400
boiler highest point level		33900
boiler steel frame central width		12860
boiler steel frame central depth		6620
