Pressure Sensor for Auto Toyota Camry

Product Description

1. Product introduction
The sensor uses MEMS technology, automobile manufacturing and ASIC design. It is especially suitable for harsh automotive environment.
2. Technical features/Parameters
Electric characteristics:
Power supply voltage: 5 ± 0.25VDC
Working Current: ≤ 10mA
Output voltage: 0.5 ~ 4.5VDC,
Response time of pressure signal: ≤ 2.0ms
Overvoltage protection: 16VDC
Specification:
Power supply voltage: 4.75-5.25VCD
Supply Current: 10mA MAX
Working pressure: 0.1-3.2Mpa
Working temperature: -30-120 degree celsius
Output load: 51KΩ,
Safe pressure: 5.88Mpa
Breaking pressure: 9.8Mpa
Output range: 10-90%Vcc
Tolerance: +/-3%Vcc

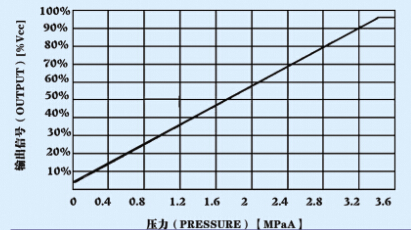

3. Output Characteristic:

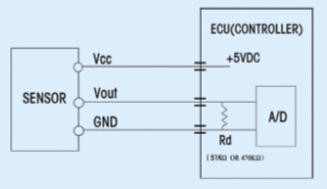

4. Electrical Connection:

5. Special Point of LEILI:

1. Create your own brand logo
2. Strict quality control
3. On time delivery schedule

6. Our Service:

1. Reply your inquiry in 24 working hours
2. Customized design is available. OEM&ODM are welcome
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff
4. Special disount are provided to our distributor.

7. About Us:
We are a high-tech enterprises dedicating to research, development, manufacture and service. Since nearly 20 years of development, we have accumulated rich experience in  product design and manufacture, quality control, warranty and after service. Our company possesses UL of the United States, VDE of Germany and CQC product certificate of China quality certification center. We have already passed ISO9001 quality management system certification and SO/TS16949 quality management system certification, and develop products with AQPQ advanced product quality planning process to meet customer requirements. With the concept of "People oriented and technology innovation, we have introduced senior and mid-level technical and management personal with rich practical experience and strong quality consciousness and innovation ability, and established a wide range of technical information with industry association cooperation network which aims to ensure the quality of products, at the same time, to keep the product technology and innovation always standing at the top in the industry.
