Brand Name: F&C
Model Number: DR18RI-S10N R2M
Place of Origin: Hunan, China (Mainland)
M18 10-30v dc 10cm diffuse reflective photoelectric sensor
Product Description

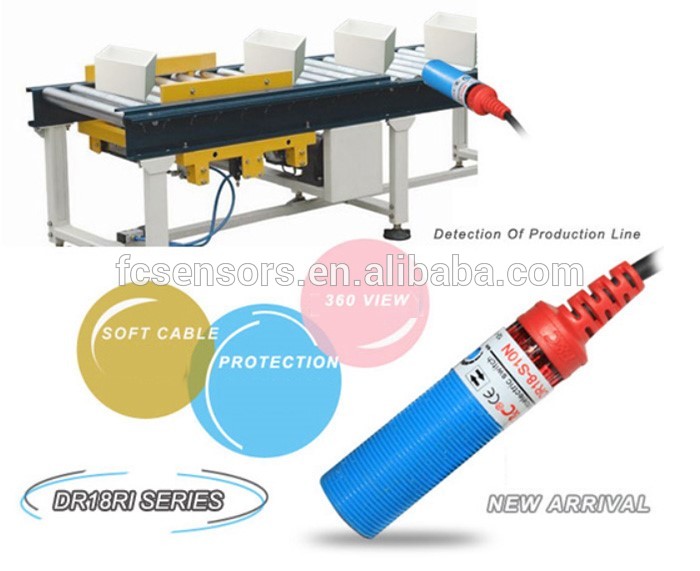

Application
M18 diffuse reflective photoelectric sensors are widely used on the automation flow, conveyor system to insepct the goods etc.
Advantage
1. Integrated structure, waterproof grade can reach IP66.
2. Through-beam, retro-reflective, diffuse photoelectric sensor for option
3. Standard sensing distance:10cm,40cm,2M, 5M, 10M and detection distance can be customized
4. 90 degree connecting and direct connecting are available.
Specification
| M18 10-30v dc 10cm diffuse refelective photoelectric sensor | |
| Model | DR18RI-S10N R2M |
| Output Method | NPN NO |
| Detection Type | Diffuse |
| Standard Detection Object | 10cm*10cm(White Paper) |
| Detection Distance | 10cm |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |

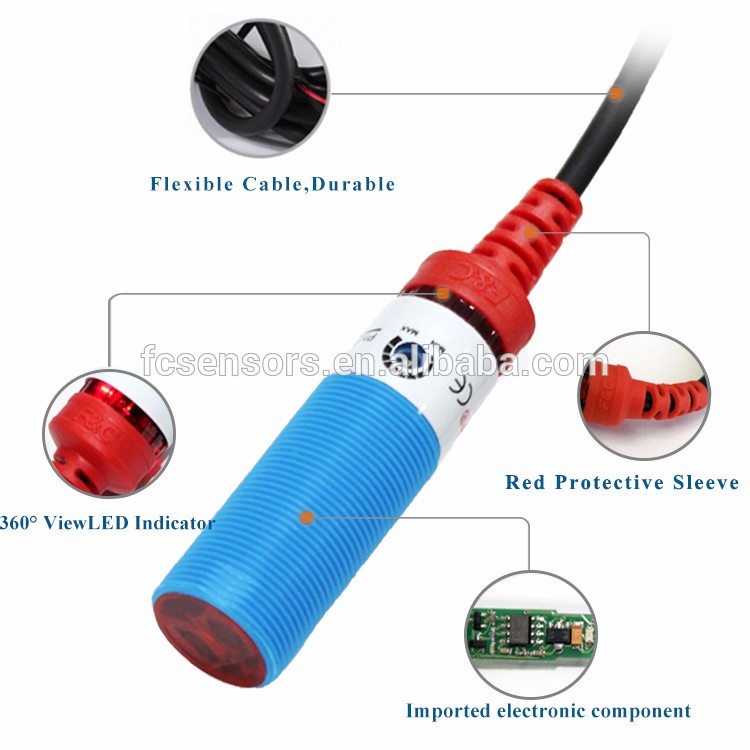

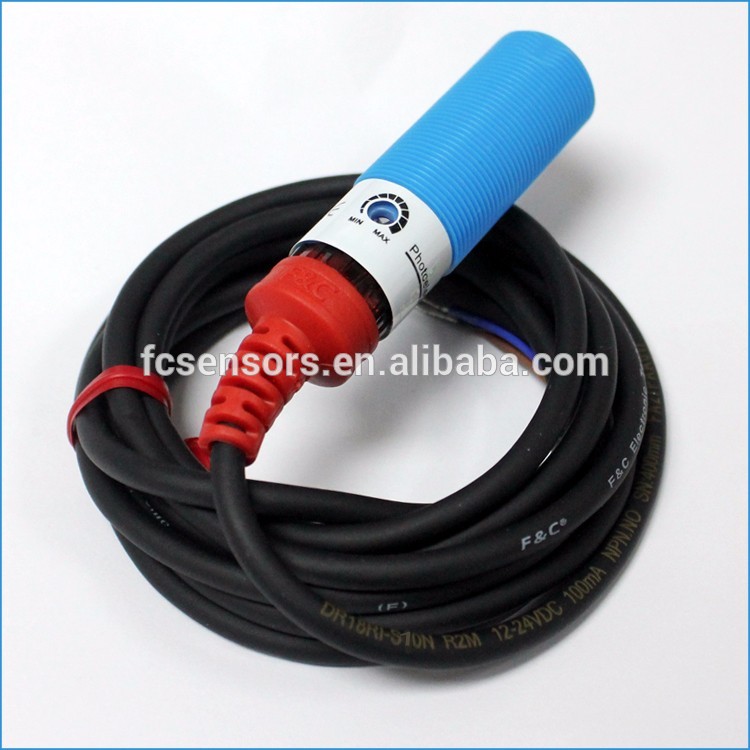

Product Display
M18 10-30v dc 10cm diffuse reflective photoelectric sensor can be adjusted by end-user, each photoelectric sensor has one screw driver for end-user to do some micro adjustment.
Product Drawing

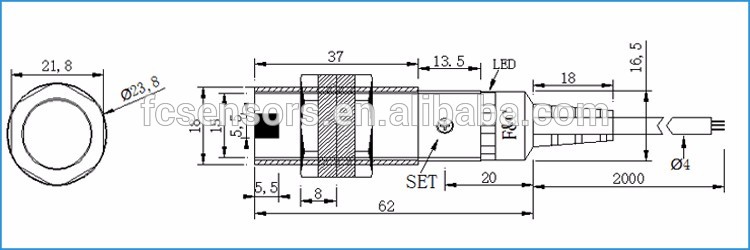

Dimension Drawing
Our Services
Before-sales Services
1.24-hours online service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the prices of our sensors are quite negotiable. We have large discount for big quantity.
After-sales Services
1. The warranty period is 18 months.
2. If we send the wrong parts to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
FAQ
1.Why Choose F&C Sensing Technology?
Diversified product:F&C has over 5000 kind of sensors for option, so all the sensors you need can be bought from F&C at one time. It can save your shipment cost and your precious time to communicate with many suppliers at the same time.
Competitive price: As we believe the quality is the most important, all our key components are bought from first world class manufacturer. We will provide the best quality fiber optic amplifier, fiber optic sensor, inductive proximity sensor, photoelectric sensor, magnetic sensor etc. with reasonable price.
High quality: As a professional and reliable manufacturer in the field of sensors, we used first grade imported component to make sure our product has strong anti-interference and good performance. We are experienced in the Quality Inspection and Control. We do 100% burning-in test and do functional test for every sensors. Every product will be strictly inspected before shipment.
Rapid Shipment: Most of parts are in stock and once our customer places a firm order, we can arrange shipment within a very short period of time.
2.What kind of payment terms are available?
We prefer T/T and West Union in advance. We are a trade assurance supplier of alibaba. If you worried about the payment safety, you can handle with the payment through alibaba.
3. How about lead time?
The lead time is from 1-7days according to the quantity of the products.
Sample: 1 day
Mass production order:2-7days
4. What about your after-sales services?
Warranty period of all F&C product is 18 months.
If we send the wrong parts to you, free replacement will be available.
As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
5. Do you accept OEM order?
Yes, actually we have many years OEM experience.
Certifications

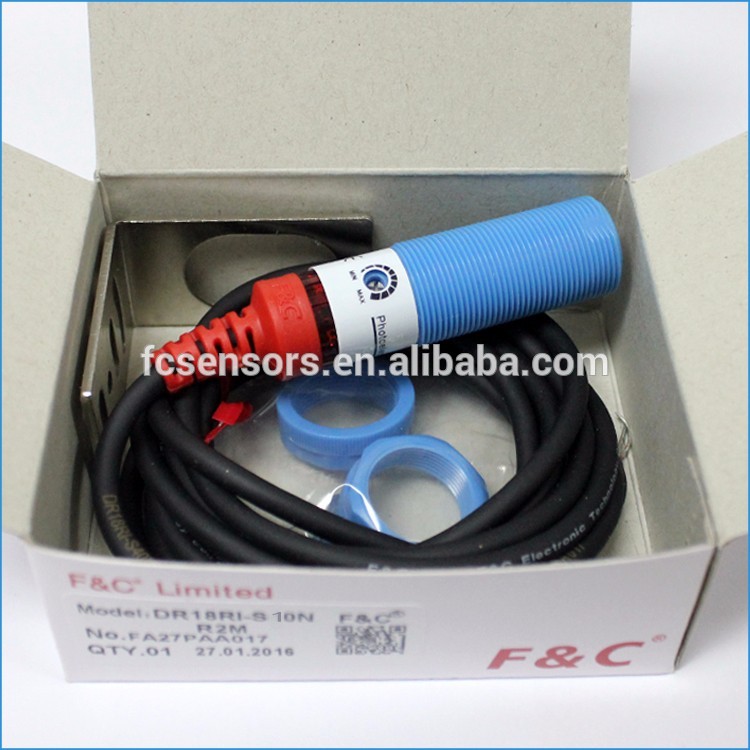

Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application. Our Target is “What you need can be found in F&C Sensing Technology”
