Cost-effective Recirculating Chiller with cooling and heating capacity

FOB Price:

USD 1000-5400 / Set

Min.Order Quantity:

1000 Set

Supply Ability:

10 Set per Day

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

T/T

Brand:

LNEYA

Products Model:

SUNDI-270

Products Details
Company Profile

Quick Details

Brand Name: LNEYA

Model Number: SUNDI-270

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: standard wooden case
Delivery Detail: Shipped in 20 days after payment

Specifications

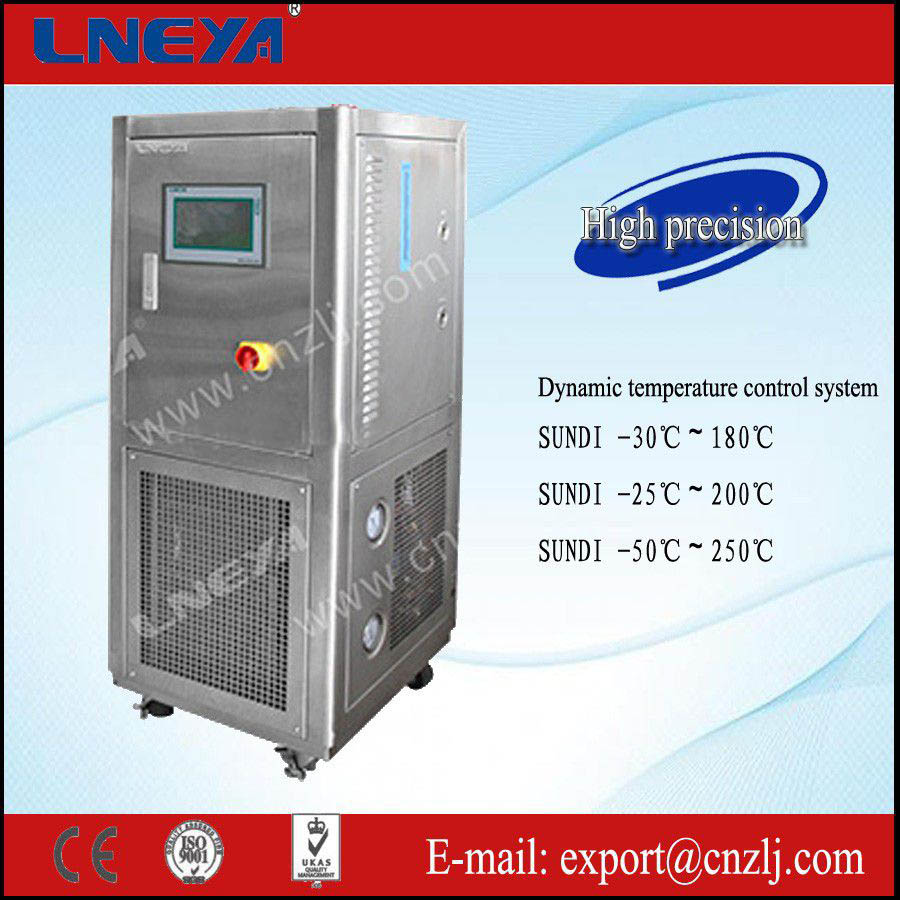

Cost-effective Recirculating Chiller with cooling and heating capacity

Typical Applications

Reactor Systems Autoclaves
Pilot Systems
Mini Plant Systems
Scale up for Operational Development
Double wall reactors
Advanced-Flow Reactors
Distillation Systems
Material Testing
Combinational Chemistry
Semiconductor Industry
Vacuum Chamber

Advantages & Functions

Wide working temperatures

Previously unachievable performance

Intelligent temperature control
Maximum process stability and reproducibility
Adop plate heat exchager,Pipeline heating,the fastest heating and cooling rates.
High cooling power

Large temperature range without fluid change
Closed system,extend thermal fluid lifetime
Incredibly compact

7-inch,10-inch color TFT touch screen display
Comprehensive warning and safety functions
Rapid cooling down from high temperature

Use magnetic drive pump,solve the circulation pump leakage

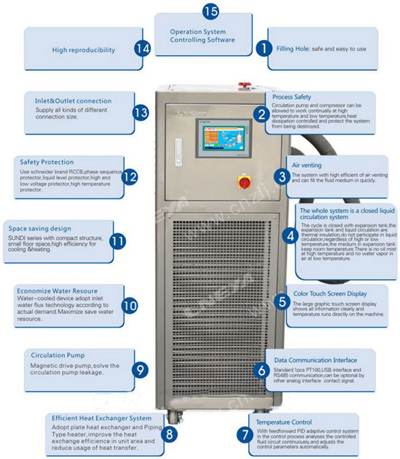

Structure design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃. Therefore, during the process the risk of imbibing and volatilization of the heat conducting medium is reduced. There following advantages for the user.

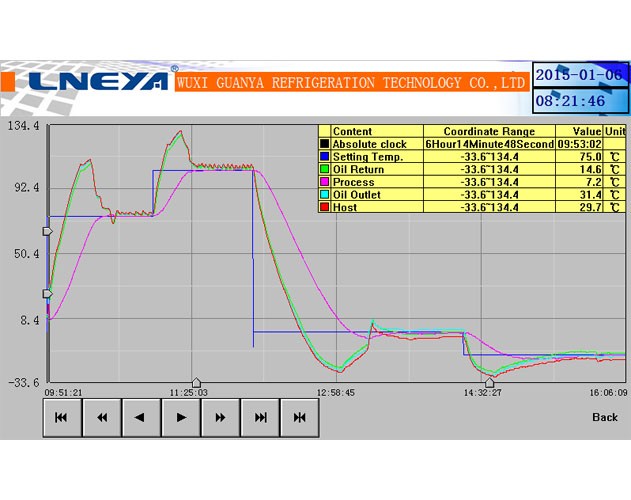

Display funcation

Technical Parameters

Model		SUNDI-225	SUNDI-235W SUNDI-235	SUNDI-255W SUNDI-255	SUNDI-270W SUNDI-270	SUNDI-2A10W SUNDI-2A10	SUNDI-2A15W SUNDI-2A15
Temperature range ℃		-25℃~200℃
Control Mode		Feed forward PID + Our special dynamic control calculation, PLC controller
Temp. control		Option: process temperature control or jacket oil temperature control
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		20 programs, each program can edit 45 steps.
Communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium: PT100 Raw material process: PT100
Temp. accuracy		±1℃	±1℃	±1℃	±1℃	±1℃	±1℃
Heating power		2.5kW	3.5kW	5.5kW	7kW	10kW	15kW
Cooling capacity	200℃	2.5kW	3.5kW	5.5kW	7kW	10kW	15kW
	100℃	2.5kW	3.5kW	5.5kW	7kW	10kW	15kW
	20℃	2.5kW	3.5kW	5.5kW	7kW	10kW	15kW
	-5℃	2kW	3 kW	4.5kW	6.6kW	8kW	12kW
	-20℃	1kW	1.8kW	2.8kW	3.8kW	4.6kW	7kW
Circulation pump		Max35L/min 2BAR	Max35L/min 2BAR	Max50L/min 2BAR	Max50L/min 2BAR	Max50L/min 2BAR	Max110L/min 2.5BAR
Compressor		Copeland	Copeland	Copeland	Copeland	Copeland	Copeland
Expansion valve		Danfoss	Danfoss	Danfoss	Danfoss	Danfoss	Danfoss
Oil separator		LNEYA	LNEYA	LNEYA	LNEYA	LNEYA	LNEYA
Evaporator		KAORI Plate heat exchanger
Optional		7-inch color touch screen controller, temperature curve record, data export to excel format.
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Refrigerant		R-404A
Connection size		DN-20 or M24*1.5	DN20 or M30*1.5	DN20 or M30*1.5	DN20 or M30*1.5	DN20 or M30*1.5	DN-25 M38*1.5
Water-cooled type W (cooling water at 20℃)			800L/H 1.5bar~4bar	1000L/H 1.5bar~4bar	1200L/H 1.5bar~4bar	1600L/H 1.5bar~4bar	2000L/H 1.5bar~4bar
Dimension	water-cooled		5006801050	6007001150	6007001150	6007001150	6007001150
Dimension	air-cooled	4006001050	5006801350	5506801450	5506801650	6206801550	7507501750
Weight	water-cooled		135kg	160kg	205kg	250kg	280kg
Weight	air-cooled	115kg	165kg	185kg	230kg	280kg	300kg
Power		AC 220V 50HZ 4kW (max)	AC 380V 50HZ 6kW (max)	AC 380V 50HZ 8kW (max)	AC 380V 50HZ 11kW(max)	AC 380V 50HZ 14kW (max)	AC 380V 50HZ 21kW (max)
Case material		SUS 304	SUS 304	SUS 304	SUS 304	SUS 304	SUS304
Optional		Optional Ethernet interface, configure PC operating software
Optional		Optional outside touch screen display controller (separated), the communication line distance is 10 meter.
Optional power		220V 60HZ three-phase, 440V~480V 60HZ three-phase

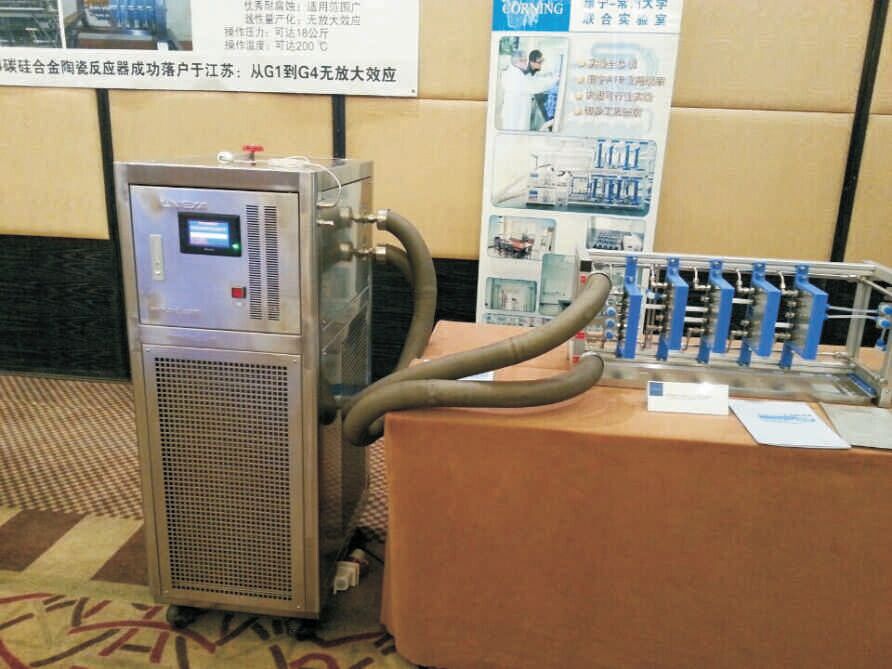

Exhibition

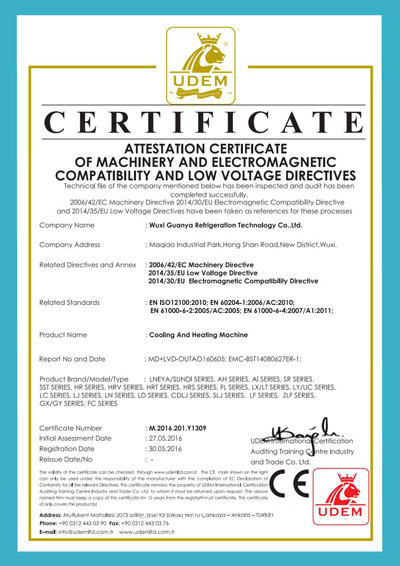

Certificate

Packaging & Shipping

Wuxi Guanya Refrigeration Technology Co., Ltd. Specialized in rerfigeration equipment, ultra-low temperature freezer, cooling and heating temperature control system, heating circulation system, explosion-proof electric equipment. Automatic integrated disparate control system, laboratory apparatus. We are the technology leader for high precision thermoregulation solutions in Research and Development Industry. Our products ensure precise temperature control throughout the whole world in laboratories, pilot plants and production processes. Our product range offers temperature control solutions for applications from minus 152 to 350 degree.
