Soloon Electric Control Valve S6063 (DN25-65)

S6063 Series (2025-2065DTC/PTC)

Electric Control Valves

Summary

The S6063 Series (2025-2065DTC/PTC) of electric control valves are mainly used in HVAC systems to regulate the flow of high temperature water and steam in response to the demand of a controller.

Specification:

• Complete range from DN 25 to DN 65.
• 2 way/3way single or balance seat valve
• Screwed and Flanged connection

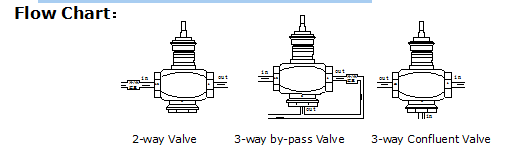

• 2 way normally open, 3 way Mixing and Diverting
• Forged brass body
• Valve seal：V-type seal and Teflon
• Valve Spindle：Stainless steel AISI302
• Pressure：1.6MPa;
• Working Water Medium temperature:-10～95℃
• Connection: BSP whorl (BS21),
• Leakage : Less than KV 0.05%
• High close-off pressure actuator satisfies demanding requirements of high-rise buildings and high-pressure pumping systems
• PN 16 or 232 PSI system operating pressure
• Actuator can be factory or field installed
• Equal percentage/linearity flow characteristic

Model and Parameter：

Model and Parameter：

DTC: Screwed connection, single seat, brass, normal Temperature.

PTC: Screwed connection, balance seat, brass, normal Temperature

Mounting:

• Rinse the pipe before installing the valve.
• The pipes should be concentrically connected to the valves with the screw thread and pipes locked tightly making sure that the arrow on the valve conforms to the flow direction.
• The valve should preferably be installed vertically with the actuator up but it can be installed at an angle or horizontally if necessary. Ensure sufficient space is allowed for daily maintenance.
• During daily maintenance ensure that the power is turned off. There should not be any pressure in the water system.
