Air Velocity Transmitter

FOB Price:

USD 65-80 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

500 Piece per Month

Port:

Shanghai

Place of Origin:

Shanghai

Payment Terms:

L/C, T/T, Western Union, MoneyGram, Credit Card, Cash

Brand:

CH-BA

Products Model:

ASP-U-D

Products Details
Company Profile

Quick Details

Brand Name: CH-BA

Model Number: ASP-U-D

Place of Origin: Shanghai

Packaging & Delivery

Packaging Details: normal
Delivery Detail: within 3 days after receive the payment

Specifications

VAV Air Velocity Transmitter Features

² Duct velocity measurement

² Simple and secure installation

² 0-10V or 4-20mA output

² Compact and fashionable design

² No drift and high accuracy

Model & Information

Model	Description
ASP-U1-D	ADC24V; 0-10V or 4-20mA; 0-20m/s;accuracy: 0.4%
ASP-U2-D	ADC24V; 0-10V or 4-20mA; 0-5m/s;accuracy: 0.3%
ASP-U3-D	ADC24V; 0-10V or 4-20mA; 0-2m/s;accuracy: 0.3%

Techincal data

Messurement Indication
Detection Range	2-10m/s,2-20m/s,2-30m
Output (tow type products)	0-10V
	4-20mA
Accuracy Under 20 degree C,45%r.h.	2-10m/s ±(0.2m/s+3%messured value) 2-20m/s ±(0.3m/s+3%messured valve) 2-30m/s ±(0.3m/s+4%messured valve)
Overall Indication
Power supply	SELV 24VAC/DC+/-10%
Current loss	Max: 120mA
Connection with the wind direction azimuth	Ifα<10, less than 3% of the messurd value

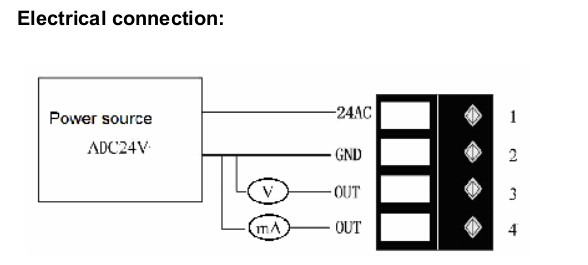

Electrical connection	BSPT Max 1.5mm2
Electromagnetic Compatibility	EN50081-1 EN50082-1	CE
	EN50082-2
Housing Materials	Polycarbonate IP65
Temperature Range	Woring Temperature:-10~+5 degree C
	Storage Temperature:–30~+60 degree C

Applicable medium	Air and Non-flammable gas
Weight	230 g
Stability	Full Range×+/-1%/year
Pressure Limit	Max:1 psi Burst Pressure:10 psi
Power Consumption	Max: 2VA
Electric Access	1/2” NPS connector
Electrical connection	BSPT Max: 1.5mm2
Installation Direction	Vetically to the velocity direction
Temperature Range	Working Temperature:-10~+50 degree C
Temperature Range	Storage Temperature:–30~+60 degree C
