SANHE Refrigerant Gas Leak Detector Model CPU-C

SANHENG Refrigerant Gas Leak Detector Model CPU-C

Brief introduction

    As a practical product of the CPU family serial, the comparability between quality and price of SH-CPU-C is high. The product deals with the signals by using the microcomputer and because of its powerful digital ability to process, it can better control its wire system and the signal from the sensor, even the tiny change of the signalcan be detected.

Features

Displaying quantity of the leak with single color

Seven-level sensitivity adjustable

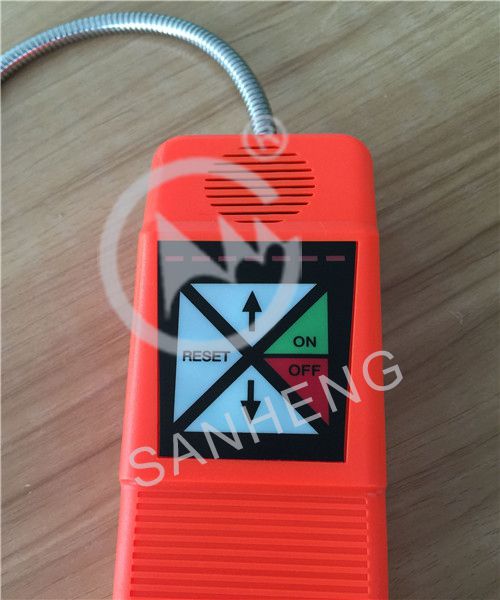

Trigger key board

Real-time sensitivity adjustable

Battery voltage display

Ability to all the halogen gases 14-inch (35.5cn) soft stainless probe

Application Range: Halogen check for lines of freezing, refrigeration and air-conditioning

Leak check for Serial of vehicle-use air conditioners

Leak for other systems and storage/recovery vessel.

The product takes effect to all the halogenating refrigeratingmedium with chlorine and fluorine included, which include but are not limited to: CFCs e.g. R12, R11, R500, R503 etc. HCFCs e.g. R22, R123, R124, R502 etc. HFCs e.g. R134a, R404a, R125 etc.

It can also detect other mixers such as AZ-50, HP62, MP39, etc.

Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the homogenate carrier gas). Detect SF-6 in high voltage circuit breakers.

Detect most gases that include Chlorine, Fluorine and Bromine (halogen gases).

Detect cleaning agents used in dry-cleaning equipment such as carbon tetrachloride.

Detect perchloroethyl in fire extinguishing system.

Parameters

1) Power supply: DC3V, Size 2 Alkaline batteries(2)

2) Maximum sensitivity: R12, R22 and R134a have got approved.14g/y

3) Limit sensitivity: fitting for halogenating refrigeratingmedium 3g/yr

4) Sensor life expectancy: about 20 hours

5) Battery life expectancy: About 30 hours under normal condition

6) Mode: Continous and no limit

7) Reaction time: Instantaneous

8) Warm-up time: 6 seconds

9) Reset time: 2 seconds

10) Size:22.9cm×6.5cm×6.5cm

11) Length of the probe: 35.5cm

12) Gross Weight: 1550G/PC

13) Packing: 8 PCS/CTN

14) Measurement of the carton: 57×36×39cm

Pay by T/T, LC

Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refusepaypal fee when you choose it.

Loading Port: ShangHai or NingBo, China

Samples are available within 7-10 working days.

Mass Production Delivery: 20 -50days after sample confirmation
