Swimming Pool Heat Exchanger Alfa Laval M6/M6M Replacement 300KW - 800kW 16 kg/s Gasket Plate Heat Exchanger BB60/BH60 Series

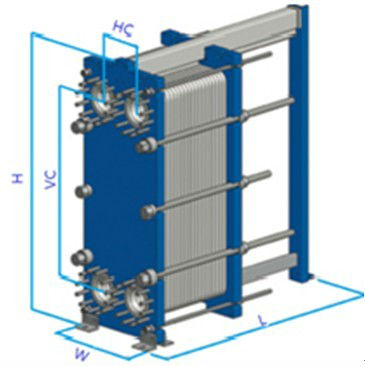

(Measurment in mm, N means the number of the plates)

Application
Swimming pool water heating. Simple, strong, compact and
highly reliable, the Baode Gasket Plate heat exchanger BH60B is designed to efficiently reheat
and maintain temperature of water in swimming pools of all
dimensions and capacities from primary heat source such as
boiler, solar installation, heat pump etc.

Standard design
Complete packaged module including:
Stainless steel or titanium plate heat exchanger, for operation with sea water or slightly corrosive water (balneo-therapy,
thermal spring water), NBR or EPDM clip-on gaskets.

Typical capacities

Liquid flow rate

Up to 16 kg/s (250 gpm), depending on media, permitted

Pressure drop and temperature program.

Water heating by steam

300 to 800 kW

Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Short delivery time.

High quality

Reasonable price

Customer made

Know-how design and customer support

Certified by ISO9001, CE, UL, WRAS, ROHS, CCS etc.
