- Products Details
Quick Details
-
Brand Name: HOOCON

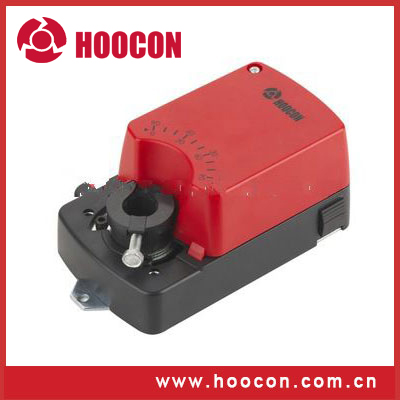

Model Number: DA4/6MU230-D/DS
Place of Origin: Zhejiang, China (Mainland)
Packaging & Delivery
- Packaging Details: 1 piece per inner box, 12 pieces per master carton, each inner box with instruction manual, metal handler, torque arm, screws provice OEM service.
- Delivery Detail: 30 Day
Specifications
Product Description
Specifications
1) For operation of air control dampers in HVAC system
2) On/Off /2-Point/3-Point
3) -DS type include 2 group of auxiliary switches
|
Technical Specification |
|||||||||||||||||||||||||||||
|
|
DA4MU230-D/DS |
DA6MU230-D/DS |
|||||||||||||||||||||||||||
|
Electrical |
Nominal voltage |
AC100...240V 50/60Hz |
|||||||||||||||||||||||||||
|
Nominal Voltage range |
AC85...265V |
||||||||||||||||||||||||||||
|
Power consumption |
3W@Nominal toque |
||||||||||||||||||||||||||||
|
Wire sizing |
0.5mm2 |
||||||||||||||||||||||||||||
|
Functional |
Torque |
4/6Nm |
|||||||||||||||||||||||||||
|
Damper size |
0.8m2 |
1.2m2 |
|||||||||||||||||||||||||||
|
Direction of rotation |
Manual regulation |
||||||||||||||||||||||||||||
|
Manual override |
Gearing latch disengaged by push button, self-resetting |
||||||||||||||||||||||||||||
|
Angle of rotation |
Max.90° |
||||||||||||||||||||||||||||
|
Running time |
<50S(90°) |
<70S(90°) |
|||||||||||||||||||||||||||
|
Sound power level |
45dB |
||||||||||||||||||||||||||||
|
Position indication |
Mechanical |
||||||||||||||||||||||||||||
|
Working |
Protection class |
II (totally insulated) |
|||||||||||||||||||||||||||
|
Protection degree |
IP44 |
||||||||||||||||||||||||||||
|
Ambient temperature |
-20…+50℃ |
||||||||||||||||||||||||||||
|
Inventory temperature |
-30…+80℃ |
||||||||||||||||||||||||||||
|
Humidity test |
95%RH, non condensing/EN 60730-1 |
||||||||||||||||||||||||||||
|
Dimensions |
Dimensions |
See “Dimensions” |
|||||||||||||||||||||||||||
|
Shaft length |
>50mm |
||||||||||||||||||||||||||||
|
Shaft diameter |
6...16mm / 8X8...12 X12mm |
||||||||||||||||||||||||||||
|
Weight |
<0.75Kg |
||||||||||||||||||||||||||||
|
Wiring Diagram |
|
|
Actuator
|
Auxiliary switch
Resistance load 3A,230V Inductive load 1.5A,230V
|
