Dehumidifier Compressor GQR16TCD, WZ series, R134A gas, 115V, MBP, HBP, 1/2+HP
- Products Details
Quick Details
-
Brand Name: SIKELAN
Model Number: GQR16TCD
Place of Origin: CHINA, ZHEJIANG
Packaging & Delivery
- Packaging Details: 1pcs per carton, 100 cartons per pallet.
- Delivery Detail: 15 DAYS SINCE RECEIVE PAYMENT
Specifications
1.Product Performance
1)GQR16TCD, WZ series, use R134A refrigerant;
2)Voltage application 110V to 120V;
3)Frequency for 50/60HZ;
4)Motor type: CSIR;
5)Cooling type: Fan;
6)Starting device is Current Relay;
7)Application: Middle/High Back Pressure;
8)Nominal power is 1/2+HP;
9)COP is 2.30 with the cooling capacity 1696W.
Basing on Test Condition(ASHRAE)
Evaporating Temperature: 7.2 degree
Ambient Temperature: 35 degree
Subcooling Temperature: 46.1 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 35 degree

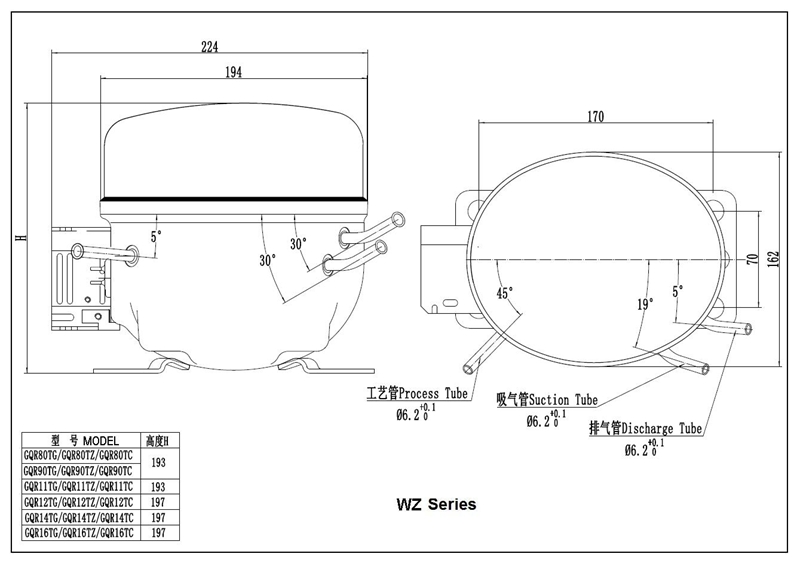

2.Compressor Dimensions
3.Compressor Specification
| Serial | Model | HP | V/Hz | Dispt (cm3) | Cooling Capacity -ASHRAE | Motor type | Starting Device | Starting capacitor (uF) | Running capacitor (uF) | Cooling Type | |||||
| Test Conditions:+7.2℃(45F) | |||||||||||||||
| Capacity (W) | Capacity (Btu/h) | lnput Power(w) | Current (A) | COP | EER | ||||||||||
| L | GQR30TCD | 1/10 | 110-120V/50-60Hz | 3.0 | 295 | 1007 | 134 | 1.8 | 2.2 | 7.51 | RSIR | PTC/Current Starting Relay | / | / | F |
| GQR35TCD | 1/9 | 3.5 | 465 | 1587 | 211 | 2.0 | 2.2 | 7.52 | RSIR | / | / | F | |||
| MS | GQR45TCD | 1/6 | 4.5 | 540 | 1842 | 245 | 2.1 | 2.2 | 7.52 | RSIR | / | / | F | ||
| GQR55TCD | 1/6+ | 5.5 | 665 | 2269 | 316 | 2.9 | 2.1 | 7.18 | RSIR | / | / | F | |||
| MK | GQR60TCD | 1/4 | 6.5 | 786 | 2682 | 341 | 3.5 | 2.3 | 7.86 | RSIR | / | / | F | ||
| GQR70TCD | 1/4 | 7.0 | 862 | 2941 | 410 | 3.8 | 2.1 | 7.17 | RSIR | / | / | F | |||
| GQR80TCD | 1/4+ | 8.0 | 964 | 3289 | 438 | 4.2 | 2.2 | 7.51 | RSIR | / | / | F | |||
| GQR90TCD | 1/3- | 9.1 | 1074 | 3664 | 488 | 3.8 | 2.2 | 7.51 | RSIR | / | / | F | |||
| WZ | GQR80TCD | 1/4+ | 8.0 | 964 | 3289 | 438 | 4.2 | 2.2 | 7.51 | CSIR | Current Starting Relay | 93-169 | / | F | |
| GQR90TCD | 1/3- | 9.1 | 1074 | 3664 | 488 | 4.4 | 2.2 | 7.51 | CSIR | 93-169 | / | F | |||
| GQR11TCD | 3/8 | 11.0 | 1155 | 3941 | 502 | 5.2 | 2.3 | 7.85 | CSIR | 93-169 | / | F | |||
| GQR12TCD | 3/8+ | 12.8 | 1325 | 4521 | 602 | 5.5 | 2.2 | 7.51 | CSIR | 93-169 | / | F | |||
| GQR14TCD | 1/2 | 14.2 | 1457 | 4971 | 633 | 5.8 | 2.3 | 7.85 | CSIR | 93-169 | / | F | |||
| GQR16TCD | 1/2+ | 15.3 | 1696 | 5787 | 737 | 6.0 | 2.3 | 7.85 | CSIR | 93-169 | / | F | |||
4. Compressor Packing and Container Loading
5.Compressor Certificate
6.Our Production View
7.Our Show Room
8.Introduction of Company
