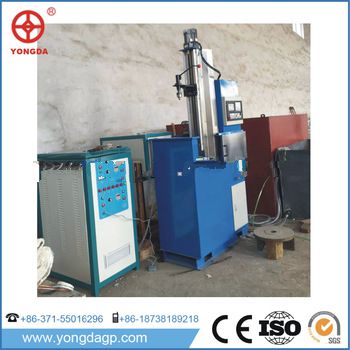

Railway spring fasteners forging induction heating machine Yongda WZP-450A/260KW

Railway spring fasteners forging induction heating machine Yongda WZP-450A/260KW

Price:

US 6000-25000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-260KW

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-260KW

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Wooden cases(plywood) for packing forging induction heating machine 2. One for generator, one for transformer. 3. Transport by vessel or by air
Delivery Detail: 5-7 days after 30% advance payment

Specifications

Railway spring fasteners forging induction heating machine Yongda WZP-450A/260KW

Product Description

Spring fasteners forging induction heating machine , fully automatic degree, my company has experience about this job.

Equipment has :

1- Induction heating machine: Recommend Yongda WZP-450A/260KW induction heater

2- Forging press equipment: Fully auto degre forging press machine.

Technical parameters of 260KW forging induction heating machine

Model	WZP-260 KW
Work power	3 phase 380V+/-10%, 50-60HZ
Input voltage	320V-420V or 480V(Customized)
Input current	6-450A
Input power	10-260KW(power adjusted stepless)
Oscillation frequency	8-15 KHZ
Cooling water pressure	0.3 MPA
Size of generator: Transformer	10807401280mm 1055558570mm
Weight of generator ; transformer	190kgs; 150kgs
Water cooling protection point	Below 50 degree celsius

Hot forging fastener: forging press machine

Application	Definition	Scope of application	Selection of frequency	Selection of power
Heat forging	heat forging is a heating process which enable the internal temperature of heated part to be equal to the surface temperature approximately.	Hot forging and hot rolling of fastner, hardware tool, automobile /motorcycle fittings, rigging, pipe fitting,twist drill.	If diameter of work piece is bigger,frequency selected shall be lower, E.g.Through heating of bar stock.	If the diameter of workpiece is bigger or the heating required is quicker, the power selected will be higher. diameter 16*40 fastener:WZP-90 or WZP-120

Application

Definition

Scope of application

Selection of frequency

Selection of power

Heat forging

heat forging is a heating process which enable the internal temperature of heated part to be equal to the surface temperature approximately.

Hot forging and hot rolling of fastner, hardware tool, automobile

/motorcycle fittings, rigging, pipe fitting,twist drill.

If diameter of work piece is bigger,frequency selected shall be lower,

E.g.Through heating of bar stock.

If the diameter of workpiece is bigger or the heating required is quicker, the power selected will be higher.

diameter 16*40

fastener:WZP-90 or WZP-120

Applications forging induction heating machine
(1) Forging round steel categories:
A. Hot forging bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. heating forging stainless steel tableware, stainless steel bolts and nuts
C. Forging tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) Induction forging heating steel sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

Packaging & Shipping

Packing for forging induction heating machine

1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

2.Accessories: induction coils,foot switch and installing and operating instructions

3.Shipping: by sea LCL(less than container load) or by air.

Contact Information

How to contact us ?

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
