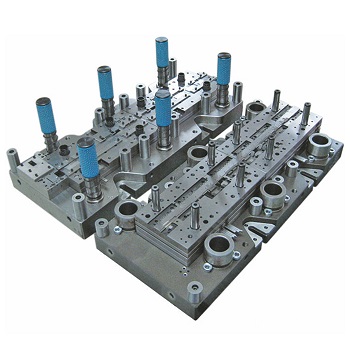

Forming process deep drawing progressive die progressive dies deep draw die

Forming process deep drawing progressive die progressive dies deep draw die

Price:
US 500-5000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
800 Set/Sets per Year
Port:
Shenzhen
Place of Origin:
Guangdong, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
Heju
Products Model:
BDM328
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Heju

    Model Number: BDM328

    Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

  • Packaging Details: In plastic box,with wooden case after fumigation or according to customer's requirement
  • Delivery Detail: In 25-60 days after your order

Specifications



Product Description

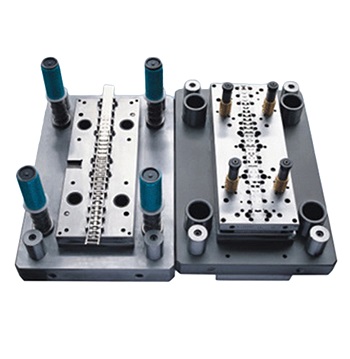

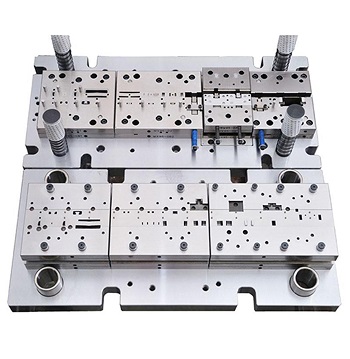

      Metal Stamping Die



  • Die Insert Tolerence:  +/-0.005mm



  • Stamping Speed:  1000SPM/min



  • Tooling Life:   50-300 million times






Die Detail Components

........................................................................................................................................................................













 How It Works

........................................................................................................................................................................

















Equipment

........................................................................................................................................................................





OEM Service
General Capabilities Design Modeling (2-D, 3-D) Die Location Technical Support Inspection
Detail Tooling Documentation DFMEA/PFMEA Quick Building Prototypes
Die Types Forming Dies Precision Progressive Stamping Dies Secondary Dies
High Speed Steel Dies Precision Blanking Dies
Tooling Material Carbide(CD650,V3,KD20) ASP-23 ASP-60
S55C---45#55 AL7075 SKD11
Tooling Life 50 Million to 300 Million Times
Die Concept 2-Plate Die 3-Plate Die Module Die
Production Equipment CNC SODICK Nice Surface EDM P/G
Drill SODICK Wire Cutting Machine J/G
Milling Machine WAIDA Profile Grinder Machine
Stamping Equipment AIDA PURDER KYOL
MICO
Stamping Product Custom Stamping SIM Spring Spring
Battery Spring Shield Drawing Press-Fit Terminal
Lead Frame Power Terminal PC Terminal
Additional Services Provided Custom Packing Packaging Heat Treat
Plating
Delivery 3-6 Week 4-8 Week

         If you have any questions, you can just click to contact us.

                                         -------Our team will help you solve problems within 12 hours.



      CLICK FREE SAMPLES

Company Information







 In 2008, Heju Advantange Include:
  • OEM/ODM manufacturer
  • 4 senior engineers more than 10 years experience
  • 14 high-speed press machine,20kkpcs per day.
  • Stamping parts,terminal,progressive metal stamping die





Stamping Process Technology Capability:



A: The min. pitch 0.4mm


B: Highest stamping speed 1000SPM/min


C: Precision could be ±0.003mm


D: Rate of hole diameter and thickness 0.85:1


E: Stamping material thickness could be 0.05-2.0mm



F:  Zero loss of material use.

















Certifications







                              NO.501288 QM08                                           NO.501288 UM                                                    NO.T702B





FAQ

Q: What’s your manufacture capability?

---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.005mm.



Q: Can you make all the dimensions are according to our design/sample?

---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.



Q:Did the stamping die suit for my press machine?

---The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.



Q:What’s your advantage compare with other supplier’s on the market?

----We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.



----All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.



----All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM.



----We are ISO/TS certificated factory,all our works are according to it.



----We have been approvaled by the thrid party,if you want,i can show you the report.
