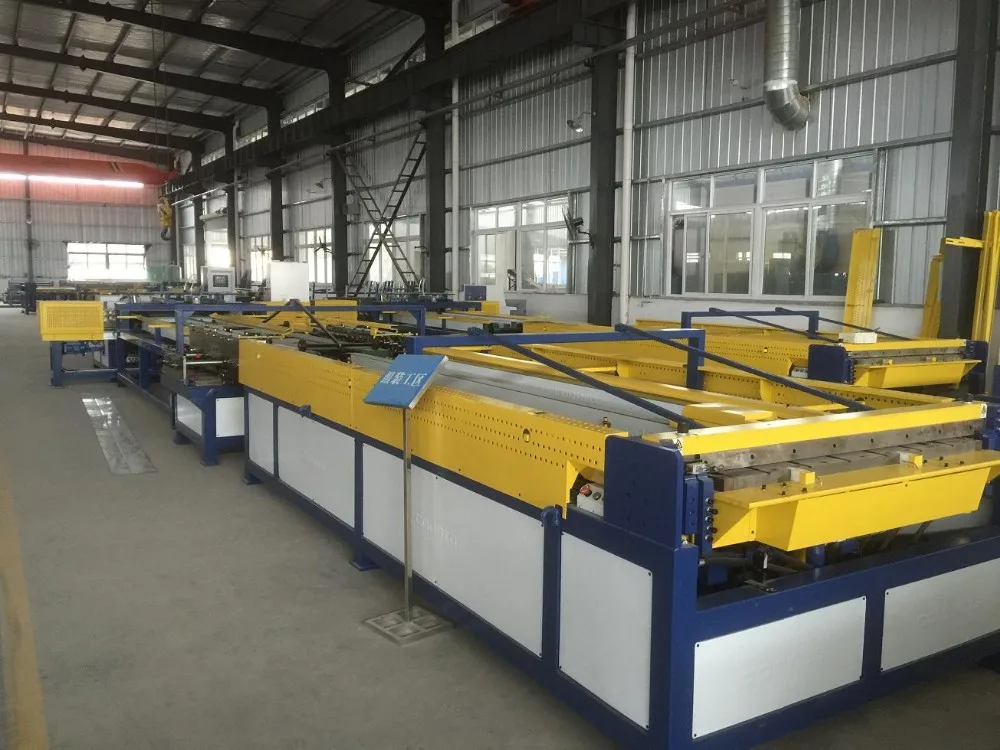

super auto duct line 5 tianjin coorig factory

Features:

* Linear structure reduces sheets transferring time and improve production efficiency.

* The material frame is controlled by the speed adjustable converter motor

* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness

* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.

* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.

* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.

* require only one person to operate the machine, two persons can take away the ducts.

* The speed of each part can be adjusted as needed.

* A processing counting function for statistics and management with day count and total count.

* support print function for production management.

Function:

This line is mainly for producing the square ducts with TDF flange, the processing capacity is more than 1000 square meters per day. after input the dimensions of the TDF flange ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, Pittsburgh locking, TDF flange forming and Hydraulic folding.

Optional material auto selecting system.

Basic Configurations:

* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)

* Optional 8tons or 10 tons of hydraulic material frame

* A material supporting frame

* A main machine

* A manipulator for material clutch, transferring and positioning platform.

* A movable high-speed Pittsburgh lock forming machine

* A Duplex TDF flange forming machine

Technical data

  Eva wang

FEATURES:

 Linear structure;streamline in production and small and occupation;

 All coilers being driven by the speed adjustable independent frequency converter motor ;

 with the material processing saving mode ,users can reduce the waste of sheet metal significantly to less than

 20mm per material coiler.

 With the feature of the servo motor driven in folding process and accurate positioning,it has the obvious advantage, especially when producing the shaped duct.

 Need at least 1 person to operate the machine, the production capacity per shift can reach 2000M3

 The speed of each part can be adjusted as needed

 With production management function for day count and total count

 Support production data records export and print function (optional)

BASIC EQUIPMENTS:

 A motor driven speed adjustable decoiler (Optional 8 or 10 tons of hydraulic decoiler)

 Optional 8 tons or 10 tons of hydraulic material frame

 A material supporting frame

 A main machine

 A manipulator for materil clutch,transferring and positing platform

 A movable high-speed Pittsburgh lock forming machine

 A duplex angle steel flange forming machine

 A duplex TDF flange forming machine

 A servo motor driven material feeding and folding platform

 A hydraulic folding machine

 A CNC System and a set of production software

PARTS:

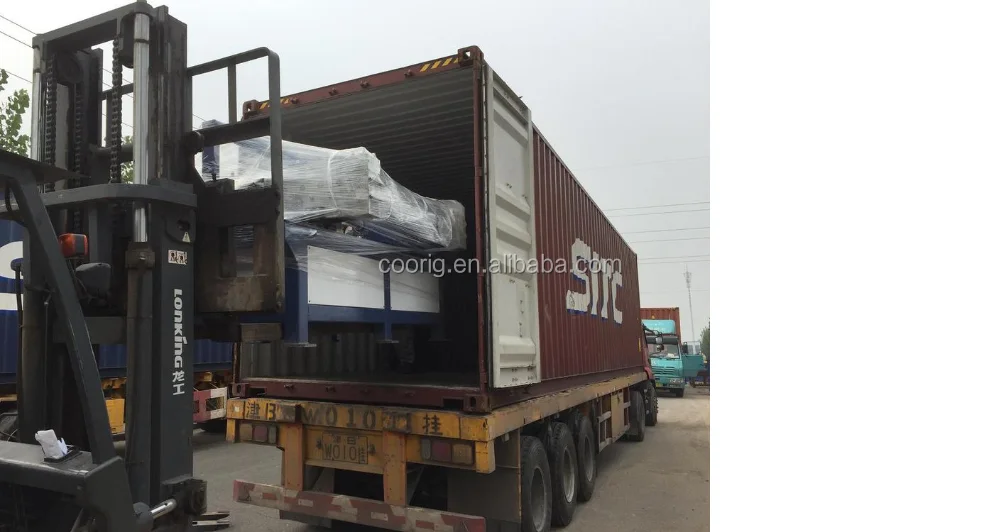

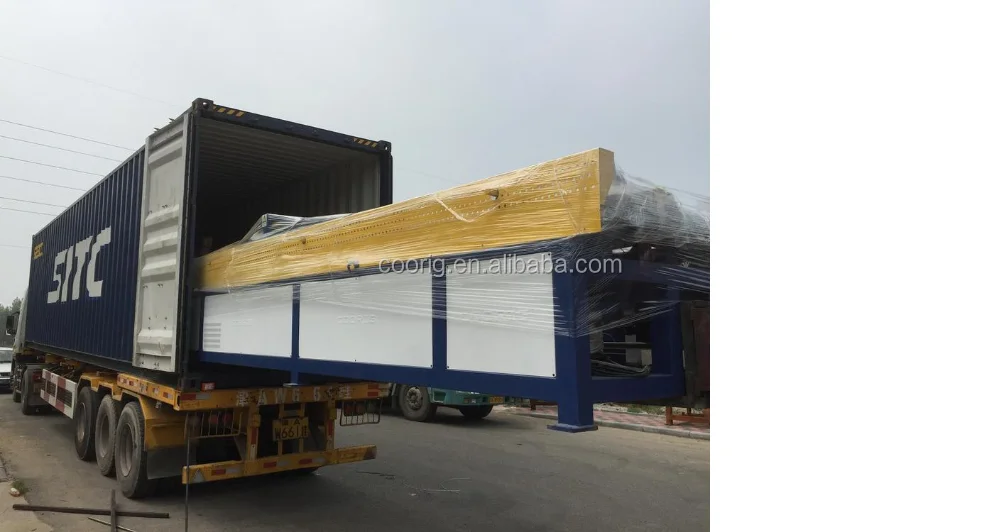

Packaging & Shipping

Packaging: 2pcs of 40ft container

Our Services

After service and maintenance

The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance
