duct machine, Auto duct line 3

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

15 Set/Sets per Month

Port:

Tianjin Port

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

T/T

Brand:

COORIG

Products Model:

ADL-3-1500

Products Details
Company Profile

Quick Details

Brand Name: COORIG

Model Number: ADL-3-1500

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: A 20ft Container
Delivery Detail: 25 Days after confirmation of P/I and receive 30% deposit.

Specifications

Auto Duct Line 3

Auto duct line 3 is a high cost-effective equipment which is suitable for the production of TDF flange, Angle steel flange as well as the TDC Flange. Sheets with the angle steel flange and TDC flange can be folded into rectangular ducts on the machine automatically.

English and Chinese language for the CNC system can be easily converted.

The max feeding speed of this line is 15m/min. The length tolerance is ±0.5mm and diagonal tolerance is ±0.8mm.

BASIC EQUIPMENTS:

A material frame(2 coils; the max loading per coil is 7 tons)

A transmission frame

A main machine

A CNC system

Main Technical Data

No.	Model	Capacity in mild-steel thickness range (mm)	Max-width(standard) (mm)	Max-working speed (m/min)	Coiler max-weight (Kg)	LWH (mm)	Power (Kw)	Weight (Kg)
1003-3	ADL-3-1250	0.5-1.2	1250	15	7000	220018001300	10	3000
1003-4	ADL-3-1500	0.5-1.2	1500	15	7000	220020001300	11	3500

No.

Model

Capacity in mild-steel thickness range

(mm)

Max-width(standard)

(mm)

Max-working speed

(m/min)

Coiler max-weight

(Kg)

L*W*H

(mm)

Power

(Kw)

Weight

(Kg)

1003-3

ADL-3-1250

0.5-1.2

1250

7000

2200*1800*1300

3000

1003-4

ADL-3-1500

0.5-1.2

1500

7000

2200*2000*1300

3500

Technical details and specifiations:

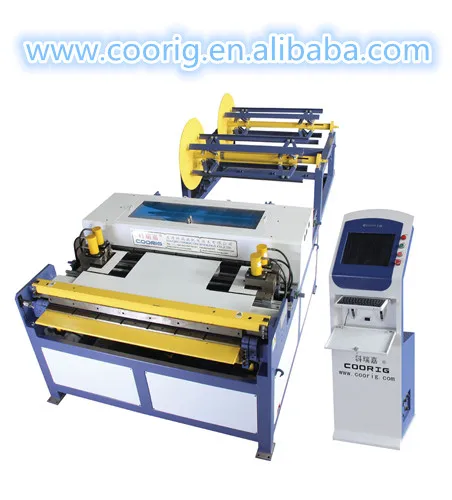

Appearance of the Machine:

Certificate:

Tianjin Coorig Technology Co., Ltd. was established in 2004.which is a professional manufacturer and supplier for varous HVAC Duct forming machines in Tianjin, China. our company has passed ISO9000 certification and is the member of China Refrigeration Association and China Association of installation.
The company's headquarter is located in Jinghai economic developing zone, Tinjin, China. the factory covers an area of 8000 square meters , a standard industrial plant of 6000 square meters. currently we have 140 staff. our Hubei production base covers an area of 40000 square meters with standard industrial plant of 16000 square meters and an independent office building of 4000 square meters. our company has set up the direct sales offices in Singapore, Australia, Beijing, Shanghai Chengdu, Wuhan. Shandong, Shenyang, Harbin, Taiyuan, Zhengzhou, Guangzhou and Lanzhou etc to provide sales and after-sales service to our customers in China and abroad. we uphold the "product automation" and "fast and efficient service"as the core concept and always adhere to technological innovation, independent research and development of new products to meet the diverse needs of customers; Value creating services, technology leading the treand, processional achieve the future, Coorig is your trusted partner!!
