Deron air source swimming pool/spa heat pump water heater(CE,heating or cooling)

FOB Price:

US 499-2,999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON or OEM brand

Products Model:

DE-27,36,46,52W/DY

Products Details
Company Profile

Quick Details

Brand Name: DERON or OEM brand

Model Number: DE-27,36,46,52W/DY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package,carton or plywooden package
Delivery Detail: within 25 working days upon receipt of 30%T/T as deposit

Specifications

Deron air source normal swimming pool/spa heat pump water heater-for heating or cooling or fish rising

Feature

1) With titanium(outer PVC,inner titanium)heat exchanger,its max.pool temp.is 40°C

2) Other titanium( outer steel,inner titanium) heat exchanger is on your option,its max. pool temp. is 60°C.

3) Suitable for -10°C~+45°C ambient temperature.

4) Safety: Eliminated the problems of traditional normal water generator.

5) Reliable: Service life can reach up to 15 years. Low maintenance cost.

6) Modular design: We can add on more units according to user’s requirement.

7) All weather operation: Running without being effected by weather, even snow or rain.

8) Environment protection: No pollution and waste needs to discharge in entire working cycle.

9) Economy: The running costs of a heat pump can be less than those of a traditional gas boiler heating system.

10)Simple installation: It can be placed on the roof top, balcony, yard, or basement, and it doesn’t need special room.

11) We usually adjust outlet water temperature at the range of 28°C~30°C(normal) for swimming pool use, also according to user’s requirement.

Main components

1.Copeland/Daikin scroll with R410a/R417a/R134a/R407c environmental refrigerant.

2.Titanium Condenser.

3.Emerson expansion valve.

4.Saginomiya-4-way valve.

Parameter list

Small swimming pool heat pump for commercial use

Model	DE-27W/DY	DE-36W/DY	DE-46W/DY	DE-52W/DY
Power supply(V/ph/Hz)	380/3/50(60)	380/3/50(60)	380/3/50(60)	380/3/50(60)
Compressor rated power(kw)	2.7	3.6	4.6	5.2
Heating capacity(kw)	11	14.5	18	22
Power input(kw)	1.9	2.7	3.1	3.7
Refrigerant	R410a
Refrigerant weigh(g)	1850	2000	2300	2500
Max.current(A)	7.5	10	13	15
Rated water temp.(°C)	28	28	28	28
Level against electric shock	I	I	I	I
Water-proof grade	IPX4	IPX4	IPX4	IPX4
Net weight(kg)	90	120	130	140
Net size(mm)	700690860	8007801000	8007801000	8007801000
Required water flow rate(m3/h)	4.5	6	7.5	9
Water connection(mm)	50mm	50mm	50mm	50mm
Operation temp.range(°C)	-10-45	-10-45	-10-45	-10-45
Noise dB(A)	≤60	≤64	≤64	≤64
Test condition	Ambient temp.(DB/WB):20°C/15°C Water temp.(Initial/Final):15°C/28°C The above data is for reference only,the specific data should be subject to the product nameplate.

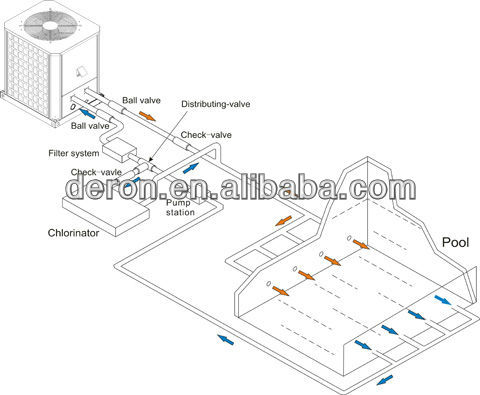

Installation view

Factory Scenes

Our products have been widely sold to more than 30 countries and enjoyed a good sales in the markets.

♥ If you want to know more about our products welcome to contact us in any time, And welcome to Deron company!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
