Hot Water Floor Heating Cooling High Capacity Gas Air to Water Multifunctional Heat Pump Air Source Heat Pump for Hotel Projec...

FOB Price:

US 500-2,999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON/ OEM brand

Products Model:

DE-150W/D

Products Details
Company Profile

Quick Details

Brand Name: DERON/ OEM brand

Model Number: DE-150W/D

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Fibre complex board/ ply-wood package
Delivery Detail: 20~25 working days

Specifications

Hot Water Floor Heating Cooling High Capacity Gas Air to Water Multifunctional Heat Pump Air Source Heat Pump for Hotel Project

Air to water heat pump features:

1) Multiple protections to protect the compressor and the heat exchanger.

2) With auxiliary heating control, circulation pump control.

3) Optional modular controller is available.

4) With timer function.

5) Adjustable defrosting according to different weather conditions.

6) Stable water flow switch .

7) With terminal for indoor thermostat, starting or standby the heat pump.

8) Air exchanger (fin-coil) with hydrophilic coating.

9) Anti-corrosion case: durable coating; no-screw design with stainless steel bolts and nuts,no rust.

10)Simple installation: can be placed on roof top, balcony, yard, or basement.

11)Low noise fan motor. Long lifespan up to 15 years.

12)Modular design: We can add on more units according to user’s requirement.

13)All weather operation: Running without being effected by weather, even snow or rain.

14)Environment protection: No pollution and waste needs to discharge in entire working cycle.

15) Economy: The running costs of a heat pump can be less than those of a traditional gas boiler heating system.

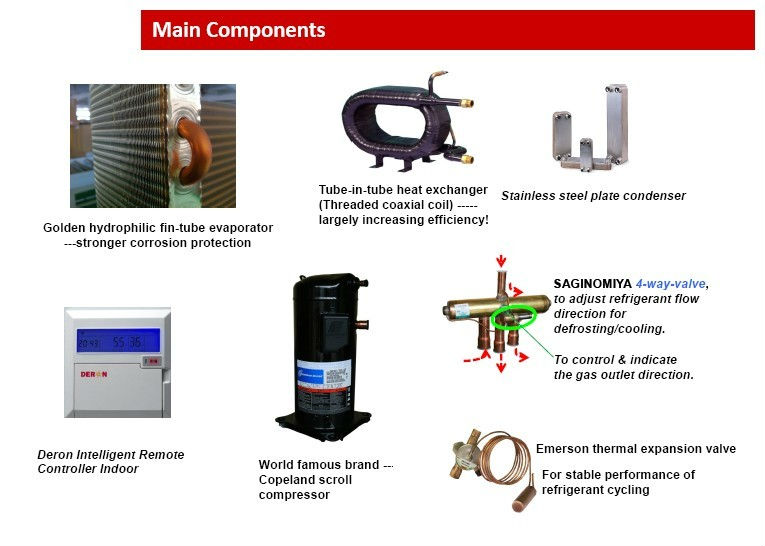

Air to water heat pump main Components:

Parameter

Model		DE-150W/D
Power supply(V/ph/Hz)		380/3/50
*Heating capacity	kw	62
	BTU	211500
*Rated power input(kw)		15
**Heating capacity	kw	47.7
	BTU	162750
**Rated power input(kw)		12.3
Water feed speed(L/H)		1330
Refrigerant		R417A
Refrigerant weight(g)		2300*3
Max.current(A)		40.5
Rared water temp.(°C)		55
Max.water temp(°C)		60
Level against electric shock		I
Water-proof grade		IPX4
Net weight(kg)		495
Net size(mm)-(LWH)		204611801750
Required water flow rate(m3/h)		12
Required tank cubage		10-15
Water connection		G2"
Operation temp.range(°C)		-10-45
Noise dB(A)		≤68
Test condition		Heating: Ambient temp. (DB/WB):20°C /15°C, Water temp. (Initial/Final):15°C/55°C. *Heating: Ambient temp. (DB/WB):7°C/6°C, Water temp. (In/Out):30°C/35°C.

Factory Scenes

Please contact us for more details including better price.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
