cold room temperature controls automotive digital electronic temperature controller with sensor SF-783

                                           About Shangfang

 We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

We are GMC(Global Manufacturer Certificate).

                                        Product Description

                                        Technical Data

                                 Colorful TouchScreen Electronic Thermostat SF-783

Technical data:

1 Temperature display

2 Temperature control
3 Defrost type optional
4 Self testing/Defrost control
5 Power switch
6 Range of temperature displayed:-50°C~150°C(-50~302°F)
7 Range of set temperature:-50°C~45°C(-50~113°F)
8 Accuracy:±1°C(1°F)
9 Temperature sensor: NTC, two sensors, 2 meters (Neither positive nor negative)
10 Compressor :NO. 30A/250VAC
11 Defrost: NO. 10A/250VAC
12 Fan: NO. 8A/250VAC
13 Light: NO. 8A/250VAC
14 Dimension:208(Length)×64(Width)×72.5(Depth)mm
15 Mounting hole dimension:191.5(Length)×58(Width)mm

the other 30 parameters are not displayed on the website, if you need the a complete parameter, please contact with me.

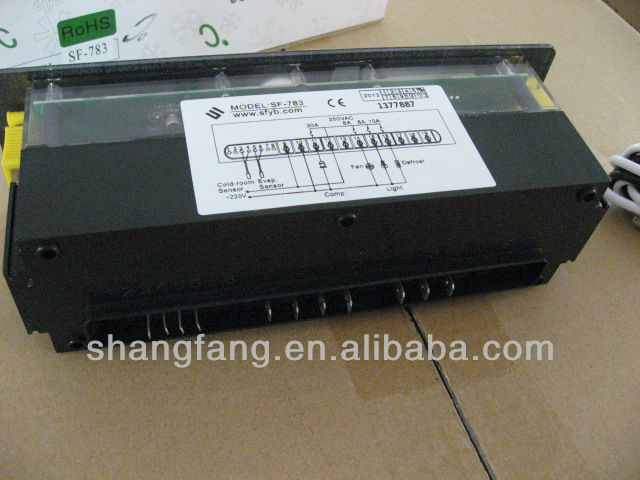

                                           Product Show

50pcs/carton

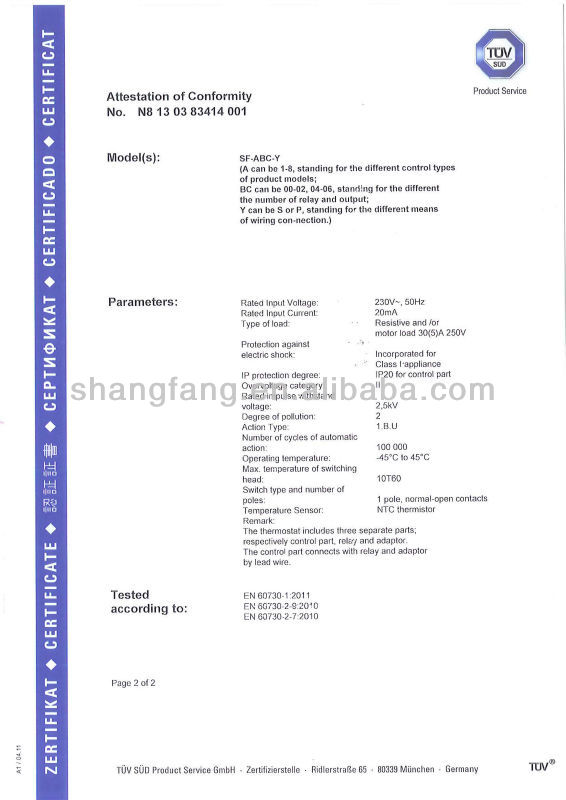

                                          Certification

                                                 What we supply

                                     Our Factory

                               2013 China Refrigeration Exhibition

                   How to choose a suitable model with Shangfang

Thank you for your interest to our product.

*Do you feel confused that the model is not perfectly meet your require?

*Do you think that you don't really understand the specification well?

Dear friends, What are you waiting for?  Please contact us now.

+We will provide you the detail specification, more photos etc.

+We have professional technical team will solve your problem.

+And there are many customized options, so there is always one suitable for you.

+Custom product for acceptable order quantity.

Shangfang controller, your BEST CHOICE!!

We look forward to hear from you! Have a nice day!
