2015 Newest Smart Hygrostat Thermostat ED66

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

20000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Shangfang

Products Model:

ED66

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: ED66

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

About Shangfang

We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

We are GMC(Global Manufacturer Certificate).

Product Description

Product	Smart Hygrostat Thermostat
Model	ED66
Brand	Shangfang
Usage	high heatinh equipment.

Technical Data

1. CE, CQC, RoHS approved.

2. Ideal for freezers of ultra-low & high-accuracy temperature

3. Waterproof panel

4. Refrigerating& heating modes selection

5. Temperature range:-150 to 550^oC

6. Accuracy: ±1^oC

7. Sensor: PT100, 1pc

8. Power supply: 230VAC or 120VAC, 50 / 60Hz

9. Relay output: 10A/ 250VAC

10. Dimension: 77(L)×35(W)×60(D)mm

11. Mounting hole dimension: 71(L)×29(W)mm

Specification

Parameter	Function	Set range	Default
E1	Lower setpoint limit	-150^oC to Set temp.	-100^oC
E2	Higher setpoint limit	Set temp. to 550^oC	400^oC
E3	Temp.Hysteresis	1 to 99^oC	10^oC
E4	Comp.start delay time	0 to 10Min	0Min
E5	Offset on room temp.	-30 to 30^oC	0
C1	Temperature control mode	0=refrigerating 1=heating	1

Product Show

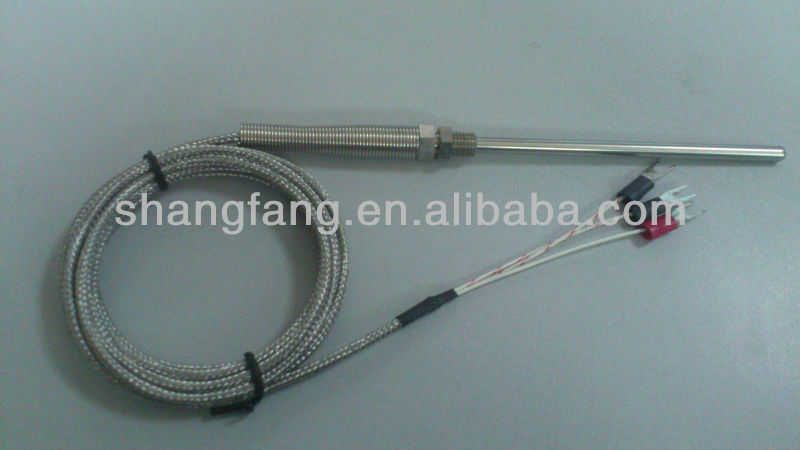

PT100 sensor

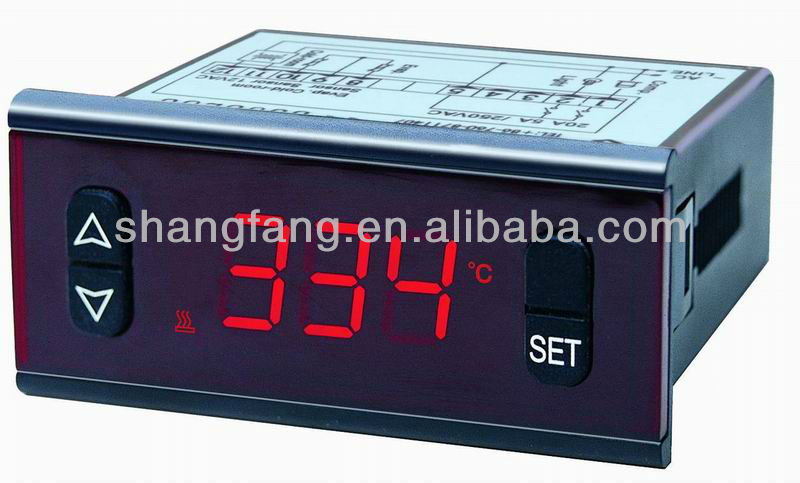

Smart Hygrostat Thermostat

Packing & Shipping

Smart Hygrostat Thermostat

Certification

What We Supply

Our Factory

Each production procedure is processed under austere safety& quality control, each product needs pass strict aging, environmental temperature& humidity tests before leaving factory to ensure the customers choose Shangfang all over the world can use the controllers of excellent quality. On the other hand, we struggle with our suppliers every day, so that to make sure our quality higher and cost of material lower.

China Refrigeration Exhibition

How to choose a suitable model with Shangfang

Thank you for your interest to our product.

Dear Customer, before we cooperate, it's important for you to know the following information.

Payment

We support T/T and Western Union.

Shipping & Handling

We ship to worldwide, as soon as you make an order, please leave your contact information to us.

Items will be shipped out within 15 days after payment cleared.

Contact us

If you have any problems, we are very glad to help you. We are handling large volume emails every day. Please allow us to reply your email within 24hrs.

About Technical Problem

Any doubt or question when you are choosing a product, please do not hesitate to contact us. We have our own engineers and production lines, excellent service and products will be offered as long as you cooperate with us.

Our Services

We have technical support group for the guidance of usage and after sales support.
One year Manufacturer's Warranty for defective items (excluding items damaged or misused after receipt).

We care about all our customers,and appreciate your positive feedback.
We understand the concerns and frustrations you might have,please contact us before any negative feedback.

Shangfang controller, your BEST CHOICE!!

We look forward to hear from you! Have a nice day!

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
