Controller temperature sf 104 temperature controller SF-104B

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,other

Brand:

Shangfang

Products Model:

SF-104B

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: SF-104B

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

Controller temperature sf 104 temperature controller SF-104B Features 1 Temperature display/Temperature control 2 Manual/Automatic defrost by electric heater 3 Evap.Fan control 4 Time/Temp.setting to end defrost 5 Value storing/Self testing 6 Parameter locking 7 Mini-sized and integrated intelligent controller 8 Applicable to the compressor of 1HP Technical Data 1 Range of temperature displayed:-45°C~66°C(-45°F~150°F) 2 Range of set temperature:-45°C~45°C(-45°F~120°F) 3 Accuracy:±1°C(±2°F) 4 Compressor:NO.30A/250VAC 5 Defrost:NO.10A/250VAC 6 Evap.Fan:NO.5A/250VAC 7 Power supply:230VAC 50/60Hz 8 Temperature sensor:NTC,2pcs(for colde room temp.&defrost control),2m(L) 9 Temperature of the operating environment:-10°C~60°C(14°F~140°F) Relative humidity:20%~90%(Non-condensing) 10 Dimension:77(L)x35(W)x70(D)mm 11 Mounting hole dimension:71(W)x29(W)mm Circuit diagram

Parameter

Controller temperature sf 104 temperature controller SF-104B

Features

1 Temperature display/Temperature control

2 Manual/Automatic defrost by electric heater

3 Evap.Fan control

4 Time/Temp.setting to end defrost

5 Value storing/Self testing

6 Parameter locking

7 Mini-sized and integrated intelligent controller

8 Applicable to the compressor of 1HP

Technical Data

1 Range of temperature displayed:-45°C~66°C(-45°F~150°F)

2 Range of set temperature:-45°C~45°C(-45°F~120°F)

3 Accuracy:±1°C(±2°F)

4 Compressor:NO.30A/250VAC

5 Defrost:NO.10A/250VAC

6 Evap.Fan:NO.5A/250VAC

7 Power supply:230VAC 50/60Hz

8 Temperature sensor:NTC,2pcs(for colde room temp.&defrost control),2m(L)

9 Temperature of the operating environment:-10°C~60°C(14°F~140°F)

Relative humidity:20%~90%(Non-condensing)

10 Dimension:77(L)x35(W)x70(D)mm

11 Mounting hole dimension:71(W)x29(W)mm

Circuit diagram

Parameter

Parameter	Function	Set range	Default
E1	Lower setpoint limit	-45°C/-45°F~Set temp.	-22°C/-8 °F
E2	Higher setpoint limt	Set temp.~45°C/120°F	20°C/68°F
E3	Temp.hysteresis	1~10°C/1~18°F	4°C/7°F
E4	Comp.start delay time	0~10Min	3Min
E5	Offset on room temp.	-20~20°C/-20~20°F	0
E6	Offset on evap.temp.	-20~20°C/-20~20°F	0
C1	Temperature unit	°C=Celsius °F=Fahrenheit	°C
F1	Max.defrost duration	1~60Min	20Min
F2	Defrost internal time	0~24Hr	4Hr
F3	Defrost termination temp.	0~20°C/32~68°F	8°C/46°F
F4	Display during defrost	0=Normal display 1=Last value before defrost	0
F5	Fan operating function	0=Parallel with comp. 1=Continuous running except defrost	0

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.

Basic Information

Business Type: Manufacturer,Trading Company
Main Products: digital temperature controllers for freezer/heating, humidity controller, temperature and humidity indicator
Location: Guangdong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency: USD,GBP,RMB,EUR,HKD,CNY
Accepted Payment Type: T/T,Western Union,Credit Card,Cash
Nearest Port: Shenzhen,Zhongshan

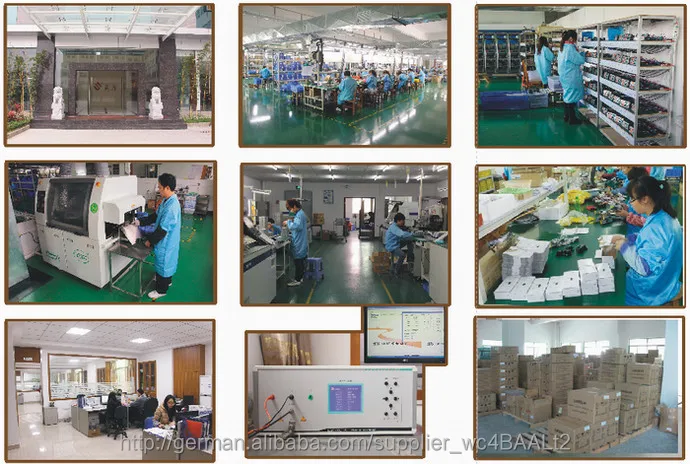

Company Photos
