Best Price Digital Thermostat for Beverage Fridge Temperature Control and Display TC-01

FOB Price:

US 1-100 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

2000000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Shangfang

Products Model:

TC-01

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: TC-01

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 15 business days
Delivery Detail: --

Specifications

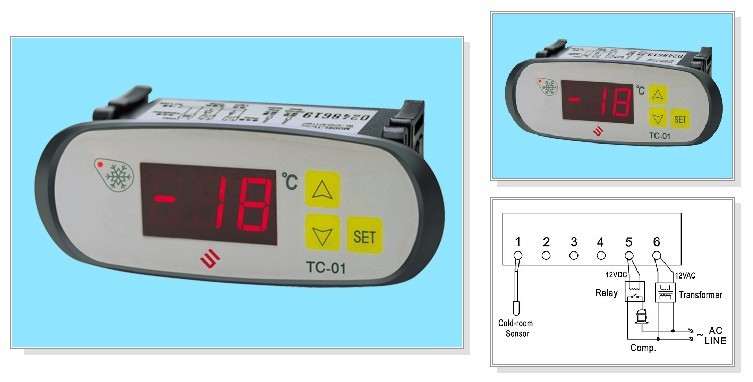

Refrigerator Temperature Control TC-01

Product Description

Features

Mini-sized and integrated intelligent control

and applicable to the compressor of one HP.

Temperature Display/Temperature Control

Value Storing/Locking function/Self Testing

Technical Data

Range of temperature displayed:-45°C~99°C;

Range of set temperature:-45°C~45°C;

Accuracy:±1°C

Temperature sensor:NTC, one sensor,2m(L)

Compressor relay: N.O. 30A/250VAC

(applicable to 1 HP Compressor,if more connected to AC contactor)

Dimension:118(Length)×44(Width)×35(Depth)mm

Mounting hole dimension:87(Length)×34.5(Width)mm

Parameters

Code	Function	Set range	Default
E1	Lower setpoint limit	-45°C~Set temp.	-35°C
E2	Higher setpoint limit	Set temp.~45°C	20°C
E3	Temp.hysteresis	1~10°C	4°C
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-10~10°C	0 °C

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
