water chiller 12v dc temperature control part SF-405

Feature

1.Mini-sized and integrated temperature control

2.can directly control 1HP compressor (include 1HP)

3.Temperature display/Temperature control/Manual

4.automatically defrost/Evap. fan control

5.Time, temperature setting to end defrost/ Energy saving mode

6.Value storing/ Parameter locking/Self testing

Technical Data

1.Temperature display range: -45~66℃(-45~150℉)

2.Set temperature range:-40℃~45℃(-40~113℉)

   Accuracy:±01℃(02℉)

3.Temperature sensor: NTC, three sensors (cold room& defrost control), 2 meters (Neither positive nor negative) Condenser sensor, door switch (optional)

4.Compressor :N.O. 30A/250VAC (can directly connect to 1HP compressor, if more needs

to connect an AC contactor)

   Defrost heater: N.O. 8A/250VAC (can directly connect to 1KWload, if more needs to

connect an AC contactor)

  Evap. fan: N.O.5A/250VAC Alarm: N.O.5A/250VAC

5.Increase dor (condenser sensor, door switch, alarminput) model selection input, when

door control input there is energy saving mode.

Size

Dimension:77(L)mm×35(W)mm×70(D)mm

Mounting hole dimension: 71mm( L)×29mm(W)

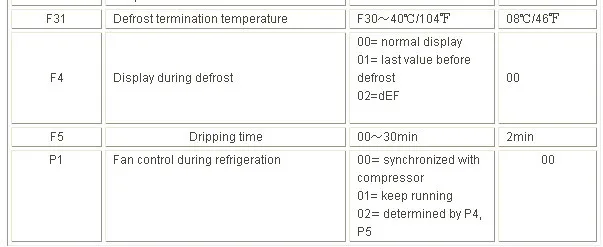

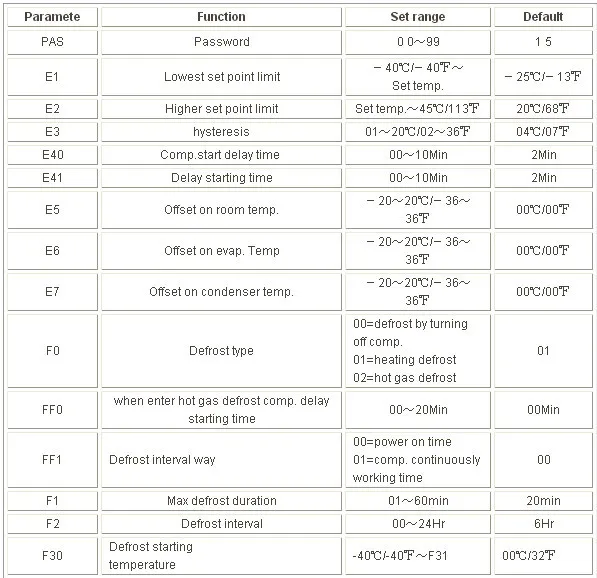

Parameter

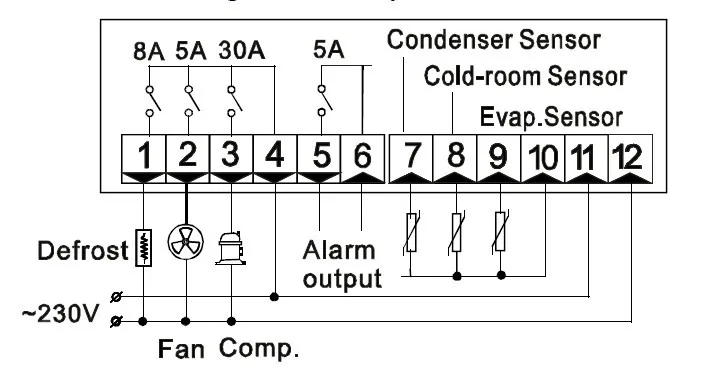

Circuit diagram
