SF-734 wise electronics regulate temperature freezer digital thermostat refrigerator temperature controller

Features

1 Touch screen

2 Temperature display&control

3 Manual/Automatic defrost by electric heater

4 Evap.Fan control/Value storig/Self testing/Parameter locking

5 °C/ °F degrees

6 Mini-sized and integrated intelligent controller

7 Applicable to the compressor of 1HP

8 Ideal for Freezer Temperature Control

Technical Data

1 Range of temperature displayed:-45°C~66°C(-45°F~120°F)

2 Range of set temperature:-45°C~45°C(-45°F~120°F)

   Accuracy:±1°C(± 2°F)

3 Compressor:NO.0A/250VAC

   Defrost:NO.30A/250VAC

   Evap.Fan:NO.30A/250VAC

   Output of the outsied sealed transformer:12VAC

4 Temperature sensor:2 NTC

5 Temperature of the operating environment:-10°C~60°C(14°F~140°F)

    Relative humidity:20%~90%(Non-condensing)

Dimension

Dimension:171(L)x38(W)x18(D)mm

Mounting hole dimension:164(L)x30.5(W)mm

Parameter

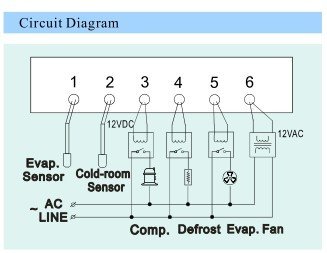

 Circuit diagram
