Made in China Electronics Thermostat for Beverage Cooler Temperature Control SF-203

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Shangfang

Products Model:

SF-203

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: SF-203

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard Export Package
Delivery Detail: 15 business days

Specifications

Cooling Digital Temperature Controller SF-203

Product Description

Features

1 Mini sized and intelligent controller and applicable to the compressor of one HP.
2 Temperature Display/ Temperature Control
3 Automatic defrost by turning off compressor/ Light Control
4 Electric heater defog/ High,Low temperature alarm
5 Value Storing/ Parameter Locking/ Self Testing

Technical Data

1 Range of temperature displayed : -45~150°C
2 Range of set temperature:-45~50°C
3 Accuracy:±1°C
4 Temperature sensor:NTC, one sensor,2m(L)
5 Compressor: N.O. 30A/250VAC
(applicable to one HP Compressor,if more it needs to cornect an AC contactor)
6 Light: N.O. 5A/250VAC
7 Defog: N.O. 10A/250VAC
8 Panel dimensions:142(Length)×40(Width)×40(Depth)mm
9 Mounting hole dimensions:138(Length)×32.5(Width)mm

Circuit diagram

Parameters

Code	Function	Set range	Default
E1	Lower setpoint limit	-45°C~Set temp.	-30°C
E2	Higher setpoint limit	Set temp.~50°C	30°C
E3	Temp.hysteresis	1~10°C	4°C
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-10~10°C	0°C
F1	Max.Defrost duration	1~60Min	20Min
F2	Defrost interval time	0~24Hr	6Hr
F4	Display during defrost	0=Normal display 1=Last value before defrost	0
C2	High temperature alarm	C3~50°C	40°C
C3	Low temperature alarm	-45°C~C2	-40°C
C4	Alarm delay time	1~90Min	60Min

Packaging & Shipping

A set of SF-203:

Temperature controller X 1

Transformer X 1

Sensor X 1

Packaging: 50 pieces/Box

Weight:26KG/Box

Payment Terms: T/T or Western Union.

Lead time: 10 business days.

Shipping: by sea or by air.

Our Services

1. Technical solution: we have our technical team. Your questions will be solved with our professional opinion.

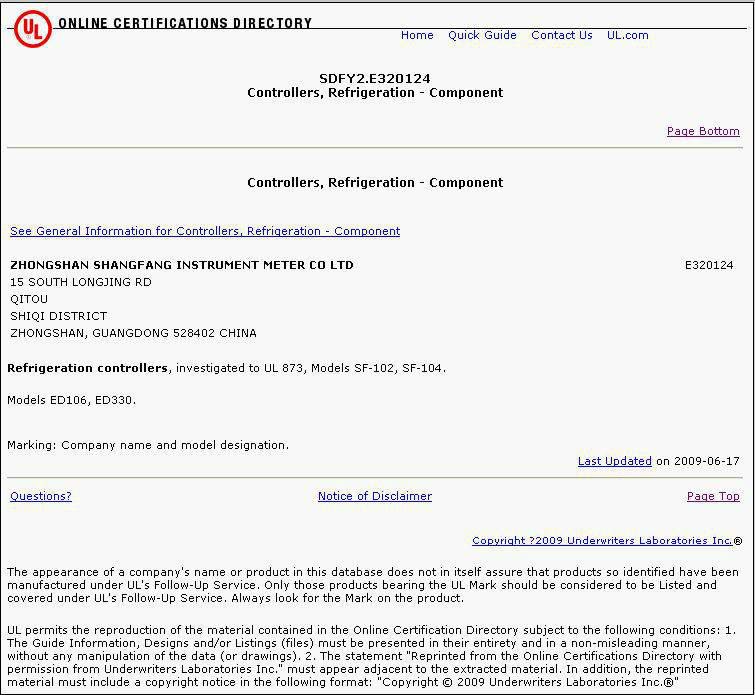

2.High quality product.Our products are CE, CQC, UL, TUV approved.

3.Customized is OK for acceptable quantity.

Company Information

Established in 1998, started from customizing digital temperature controllers for freezer manfacturers, according to the idea of "Credit standing roots quality, quality creats brand", and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration,air conditioning,heating,food and packaging machinery etc

According to the idea of "Credit standing roots quality, quality creates brand", Shangfang is ISO9001:2000 certified. Each production procedure is processed under austere safety& quality control, each product needs pass strict aging, environmental temperature& humidity tests before leaving factory to ensure the customers choose Shangfang all over the world can use the controllers of excellent quality. On the other hand, we struggle with our suppliers every day, so that to make sure our quality higher and cost of material lower.

We attend the China Refrigeration Show every year and get well recieved from customer.

FAQ

1. How long can I get the goods?

For samples, our lead time is 7 business days after the payment arrives to our account.

For MOQ, our lead time is 12 business days.

The lead time can be negotiated according to the actual situation.

2. If this one is not my desired temperature controller, how can I get a desired one?

We customize for acceptable order quantity. We have our own technical team and production line, so that we can provide our best service to you!

3. Could not understand the description well?

Just feel free to contact us and tell us your doubt, we will reply you as soon as possible!

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
