Brand Name: Baiyilun
Model Number: L-002
Place of Origin: Zhejiang, China (Mainland)

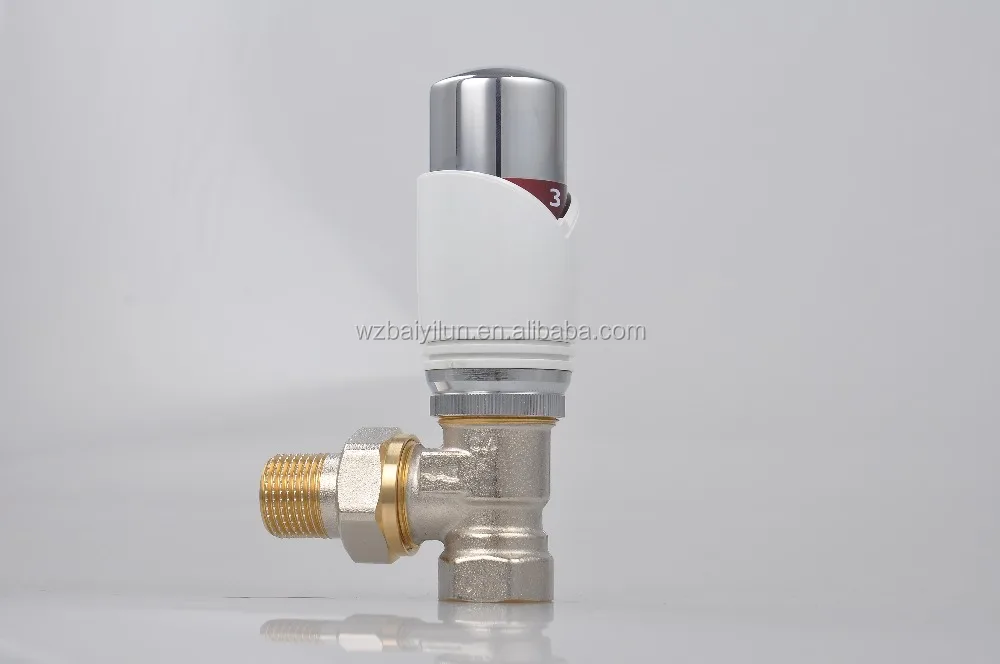

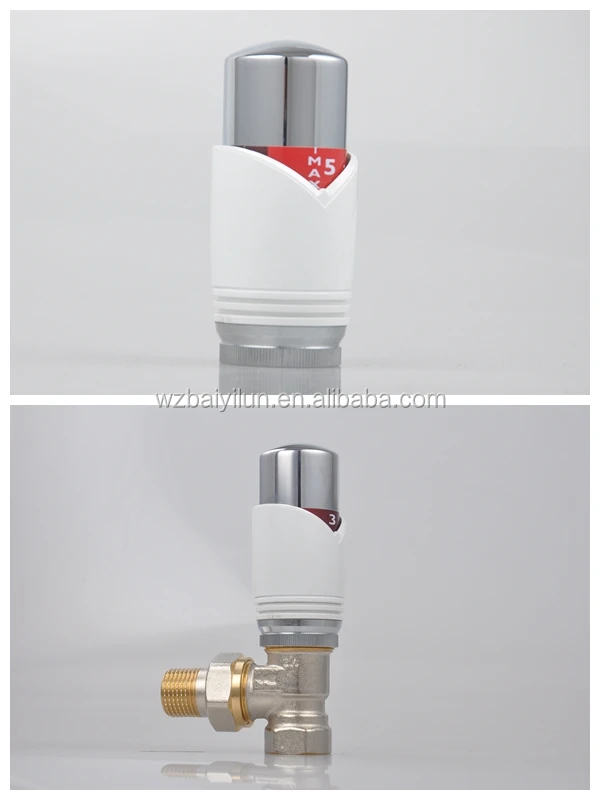

High quality radiator for Thermostatic water head with liquid sensor L type
Avonflow Baiyilun TRV Co.,ltd specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
Thermostatic valve

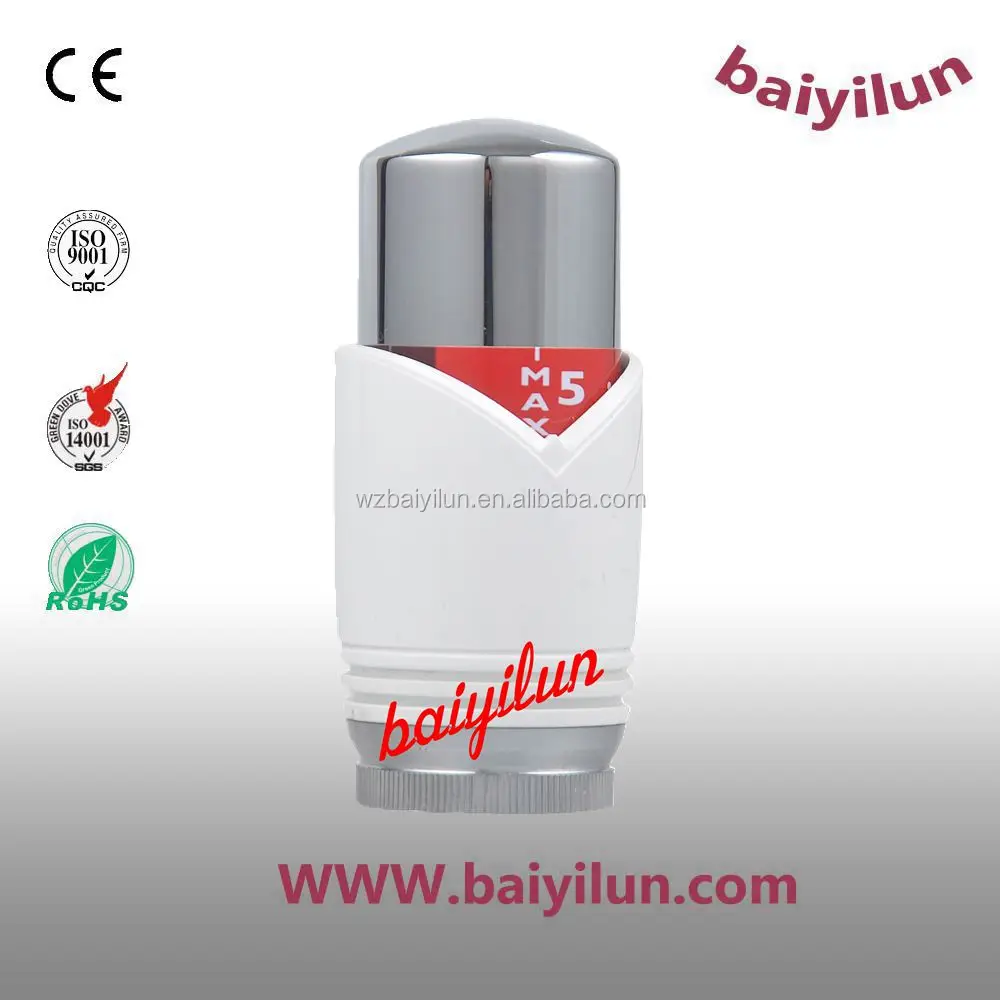

1.Temperature sensor
Temperature hysteresis:1.0 k
Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 degree
Temperature extent:6-28°
Temperature degrees as follow:
| Room temperature(°c): | 6 | 12 | 16 | 20 | 24 | 28 |
| Scale interval: | * | 1 | 2 | 3 | 4 | 5 |
2.Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 bar
certificates and declarations:
Certificate: EN215 ,CE ,ISO9001:2008, ISO14001:2004,RoHS
product conforming to standard PN-EN 215.
material:ABS/PC ALLOY
Size:DN15/DN20/DN25
Angle/Straight Valve
Weight information (valve body only)
DN15 straight valve |
DN15 angle valve |
DN20 straight valve |
DN20 angle valve |
DN25 straight valve |
DN25 angle valve |
DN15 3 way |
DN20 3 way |
DN25 3 way |
245 g |
230 g |
315 g |
300 g |
390 g |
370 g |
360 g |
455 g |
600 g |
About Packing
50 sets per carton with paper box ,carton size:51x36x22 cm;
40 sets per carton for blister packing, carton size : 48x35x29 cm;
100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
About 20000 sets /20” container with blister packing;
About 25000 sets/20” container with carton box;
Pallet packing is available.
About Guarantee:
2 Years guarantee counted from the days arrived in your warehouse.
Specifications
Size:DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'') Angle valve ,Straight valve, 3 way valve, H valve,Maxing valve
Used Connection Pipe:
PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe
OEM condition
Logo for the thermostatic head, the MOQ is 3000 pieces.
Logo for the thermostatic valve body, the MOQ is 10000 pieces.
Payment terms:
30%TT as deposit payment,70%TT against the Copy of B/L
L/C is available.
Delivery terms:
FOB NINGBO or FOB SHANGHAI can be choosed.
The production time is 25 days normally.
