Brand Name: Baiyilun
Model Number: J-002
Place of Origin: Zhejiang, China (Mainland)

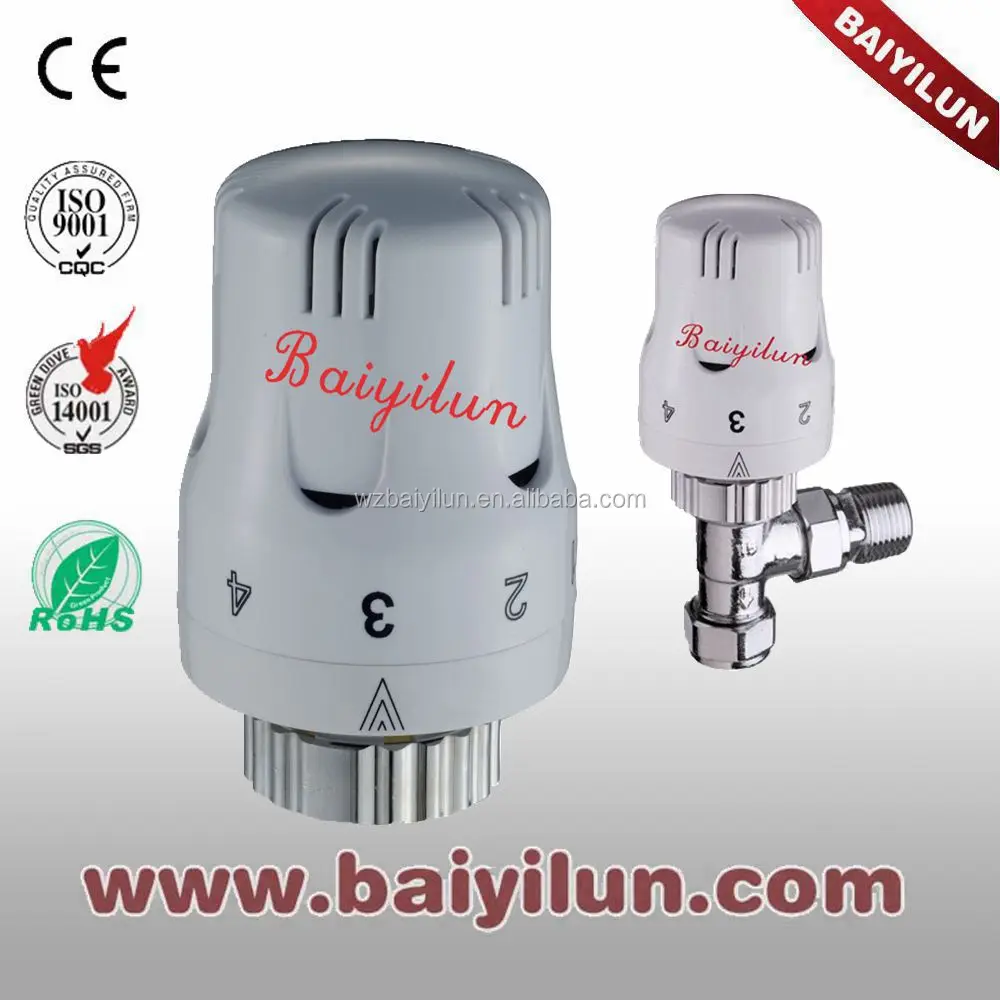

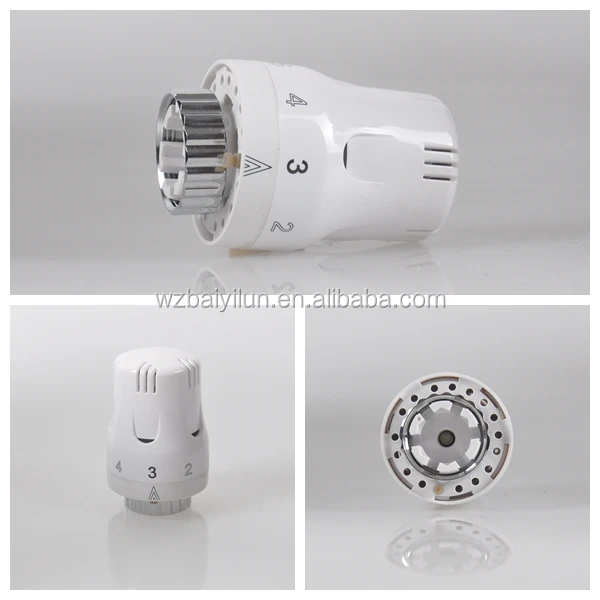

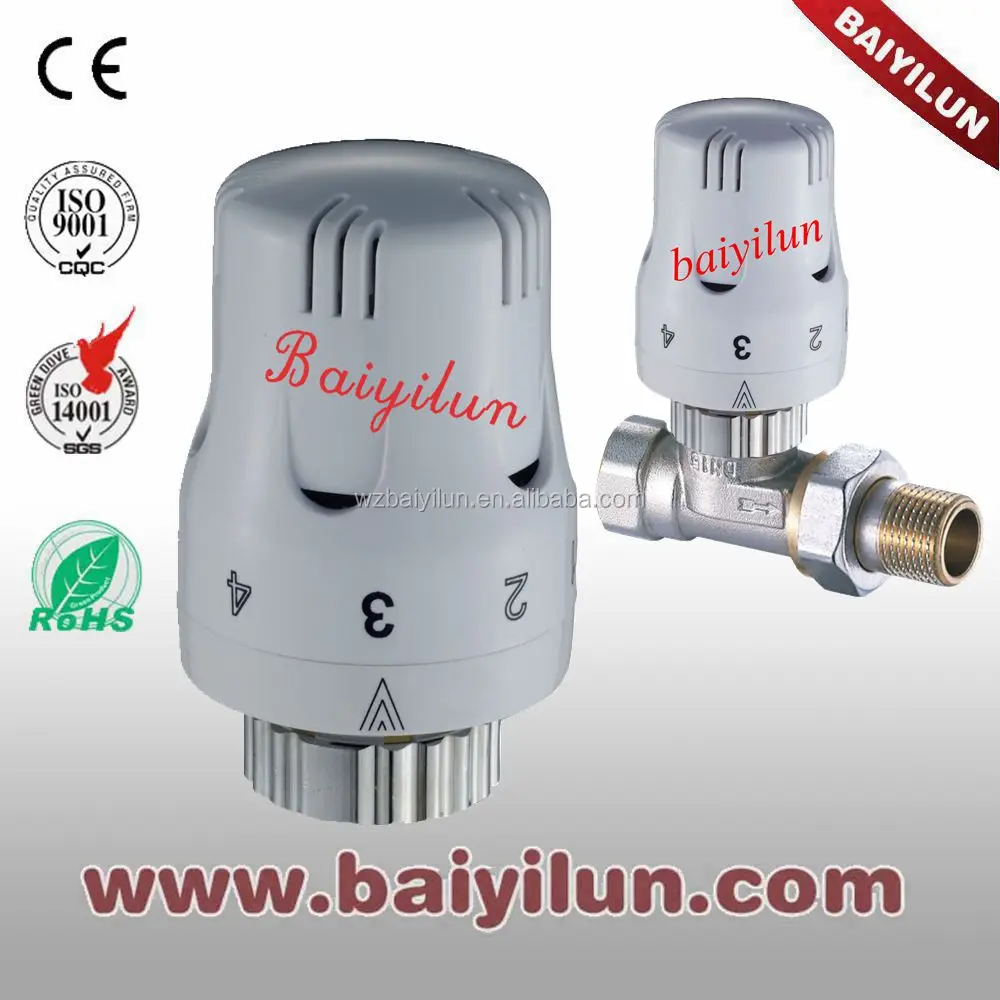

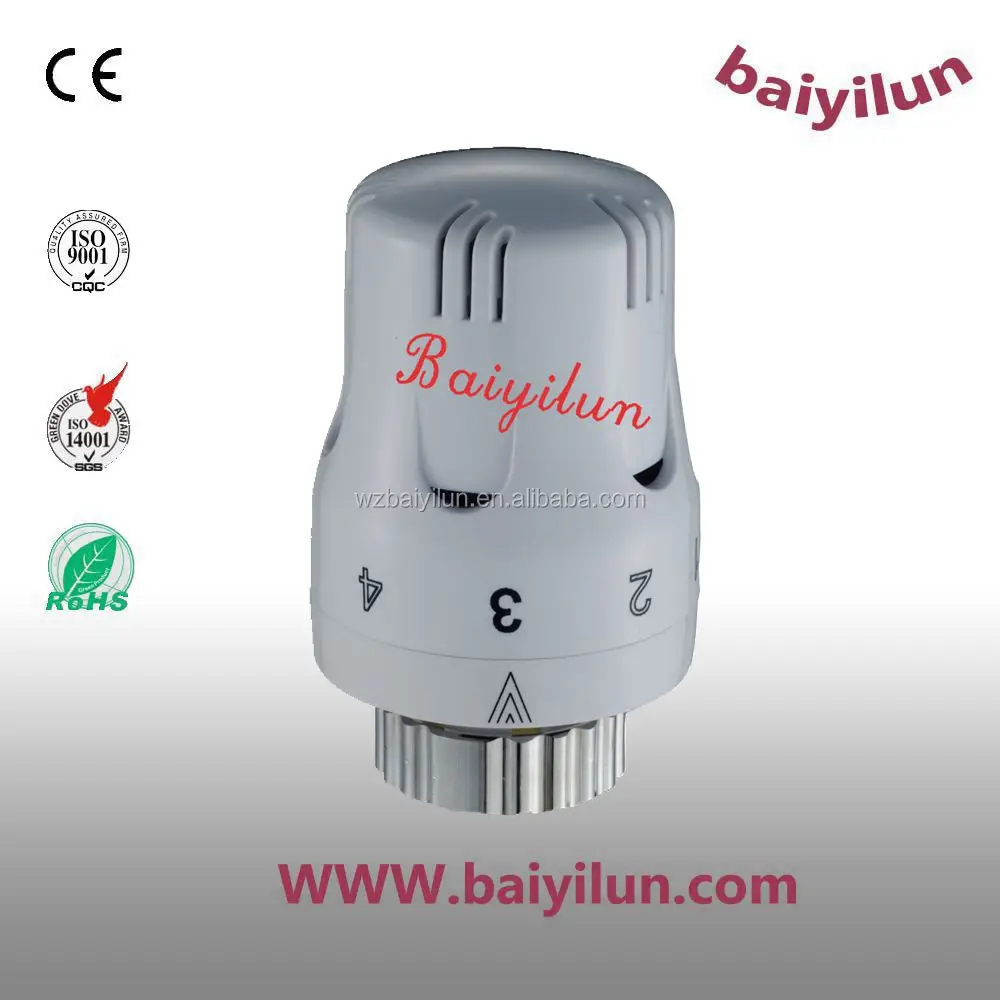

BYL high quality temperature controller valves head with RoHSr
Avonflow Baiyilun TRV Co.,Ltd. specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.
Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
Introduction
The thermostatic valve can automatically adjust the room temperature to meet your need.It is designed to control the volume of heat in the room so as to reach a balance between the interior heat and the needed heat.
Characteristics of products
European standand design
Humanization design outside,easy to be installed and simple to be operated.
Sensitive adjusting and excellent linearity
Convenient to set and lock a degree of temperature(to lock a degree or a degree extent)
Comfortable handle
Thermostatic valve
1.Temperature sensor
Temperature hysteresis:1.0 k
Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 °C
Temperature extent:6-28°
Temperature degrees as follow:
| Room temperature(°c): | 6 | 12 | 16 | 20 | 24 | 28 |
| Scale interval: | * | 1 | 2 | 3 | 4 | 5 |
2.Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature : less than 120 °C
Normal resistance to pressure: 10 bar
certificates and declarations:
Certificate: EN215 ,CE ,ISO9001:2008, ISO14001:2004,RoHS
product conforming to standard PN-EN 215.
material:ABS/PC ALLOY
Size:DN15/DN20/DN25
Body type:Angle/Straight / Three-way valve
Weight information (valve body only)
DN15 straight valve |
DN15 angle valve |
DN20 straight valve |
DN20 angle valve |
DN25 straight valve |
DN25 angle valve |
DN15 3 way |
DN20 3 way |
DN25 3 way |
245 g |
230 g |
315 g |
300 g |
390 g |
370 g |
360 g |
455 g |
600 g |
About Packing
50 sets per carton with paper box ,carton size:51x36x22 cm;
40 sets per carton for blister packing, carton size : 48x35x29 cm;
100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
About 20000 sets /20” container with blister packing;
About 25000 sets/20” container with carton box;
Pallet packing is available.
About Guarantee:
2 Years guarantee counted from the days arrived in your warehouse.
Specifications
Size:DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'') Angle valve ,Straight valve, 3 way valve, H valve,Maxing valve
Used Connection Pipe:
PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe
OEM condition
Logo for the thermostatic head, the MOQ is 3000 pieces.
Logo for the thermostatic valve body, the MOQ is 10000 pieces.
Payment terms:
30%TT as deposit payment,70%TT against the Copy of B/L
L/C is available.
Delivery terms:
FOB NINGBO or FOB SHANGHAI can be choosed.
The production time is 25 days normally.
