auto line air ducts machine

SBKJ INC. is based in the Yangtze River Delta, nearby Shanghai, China. Our company is a national new high-tech enterprise which is specialized in the development and manufacture of machines, such as tube forming machines, plasma cutting machines, for the production of round ducting and fittings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2000 and ce. Our customers from more than 60 countries in the world.

SBKJ’s research and development is the cornerstone for our automatic tubeformers that produce a higher quality duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.

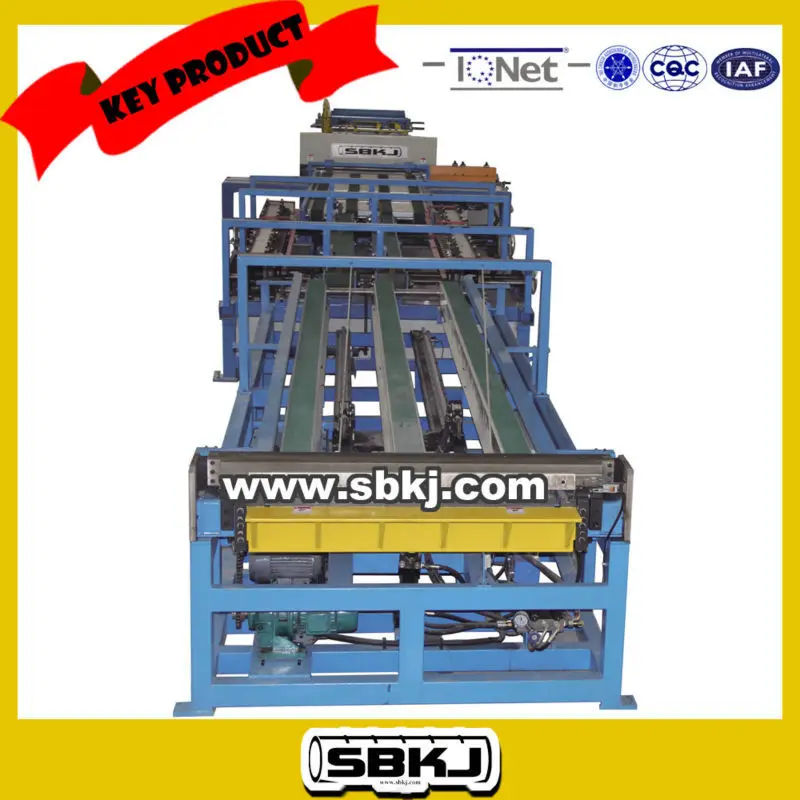

Model No.: SBAL-V-1250/1550

Max Coil Width:1250/1550mm.

Thickness Range:0.4-1.2mm,18-30ga.

Speed:0-18m/min,0-59FPM.

Shearing Tolerance:±0.5mm.

Diagonal Tolerance:±0.5mm.

Other Information

Shearing tolerance of ±0.5mm.

Hydraulic folding diagonal tolerance of ±0.5mm.

0-54FPM (0-18m/min) feeding speed, fast acting back gauge.

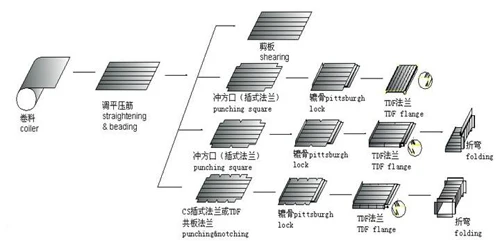

Stations:coil-straightening-beading-punching square-notching-shearing-folding-automotion pittsburgh lock Forming-coil.

Conveyer (optional)-duplex TDF flange forming -hydraulic folding.

Product Features

Linear structure reduces sheets transferring time and improves production efficiency.

The material frame being controlled by the independent speed adjustable converter motor.

10 Rollers for leveling and grooving that ensure the flatness of sheet metal for various thicknesses.

With the material processing saving mode.Users can reduce the waste of sheet metal significantly to less than 20mmper material coiler.

With the feature of the servo motor driven in folding process and accurate positioning.

It has the obvious advantage especially when producing the shaped duct.

The input adopted two models:screen touch and keyboard which ensures stability of the system.

Require only one person to operate the machine, two persons take away the ducts.

The speed of each part can be adjusted as needed.

A processing counting function for statistic and management with day count and total count.

Support print function and production management.

Basic Equipments

A motor-driven material feeding frame.

4coils;the max loading Per coils is 6 tons).

A material supporting frame.

A main machine.

A manipulator for material clutch, transferring and positing platform.

A movable high-speed Pittsburgh lock forming machine.

A duplex angle steel flange forming machine.

A servo-motor driven material feeding platform.

A hydraulic folding machine.

A CNC System and a set of production software).

Packaging

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment

smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.

1. BUYER needs mounting service and training abroad, all costs will be charged: visa, round flight tickets, boarding & lodging, labor charge of one engineer. After receiving all the cost, seller will send engineer to Buyer’s site.

2. Buyer should send 1~2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.ite.

3. Parts included in guarantee will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.

4. When Buyer requests technical assistance, seller must respond within 7 days.

1. How to get a accurate quotation from us?

Provide us the detail of the material such as metal thickness and width.

2. What’s the shipping cost from China to your country?

We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.

3. How to check imported charges or tax?

For example: Spiral tubeformer machine is 8455229090.
Flange Forming Machine is 8455229090.

Elbow Making Machine is 8455229090.

Plasma cutting machine is 8456901000.

Welding machine is 8515290000.

4. Payment terms, MOQ, warranty, FOB.

Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set, FOB Shanghai.
Delivery time :30 days after receipt of formal order and 30% deposit.
Warranty:12 months.

Following delivery: We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time, if urgently, please call us.

5. What’s the package?

Fumigation-free plywood case or without package.

6. What about commissioning service?

We can offer commissioning service, the buyer need to afford plane tickets.

7. Do you offer teaching & training?

Training at supplier’s plant.

8. What’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

9.What's the certificate of company have?
