Refrigeration magnetic solenoid valve

FOB Price:

USD 8-28 / Piece

Min.Order Quantity:

50 Twenty-Foot Container

Supply Ability:

10000 Twenty-Foot Container per Month

Port:

Shanghai/Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C, T/T, Western Union

Brand:

ZOER

Products Model:

ZRVS-1064/4

Products Details
Company Profile

Quick Details

Brand Name: ZOER

Model Number: ZRVS-1064/4

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: single box packed in carton on pallet
Delivery Detail: Shipped in 20 days after payment

Specifications

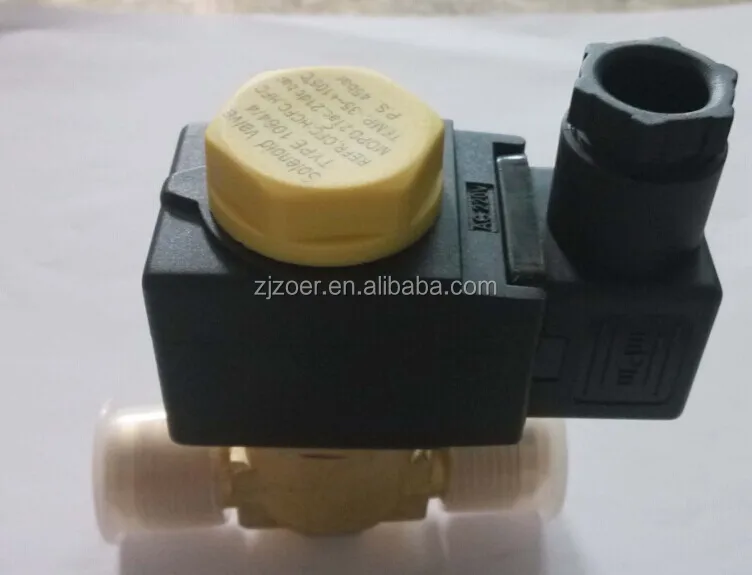

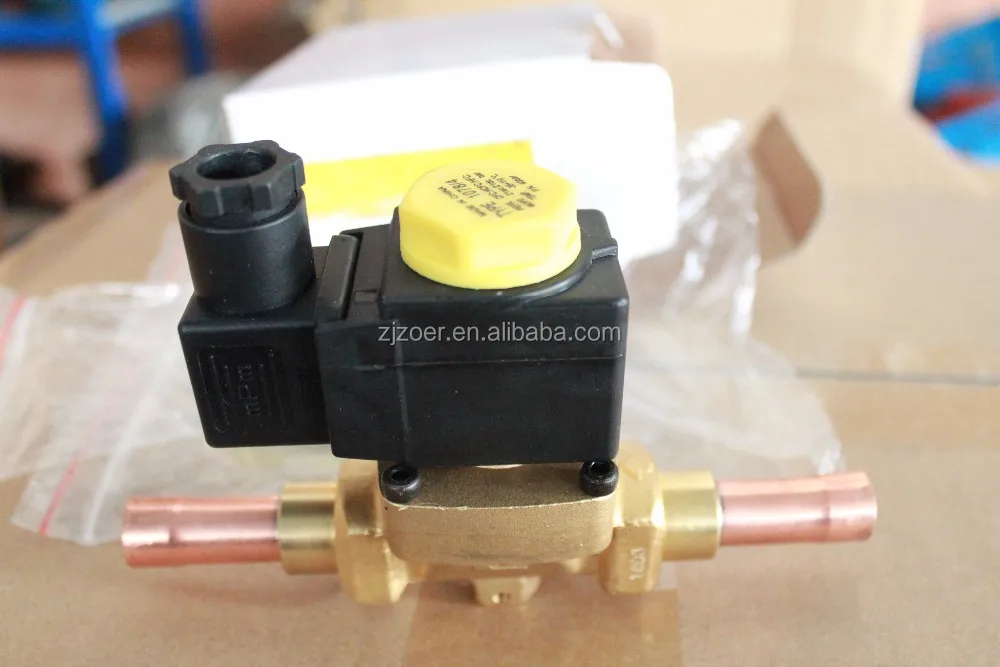

Refrigeration magnetic solenoid valve

Product Introduction:

ZRVS series magnetic solenoid valve is to control the refrigeration system refrigerant pass, off and realize automatic control of the controlled cooling system components, is widely used in refrigeration compressor group, central air conditioning, refrigeration equipment, bus and air conditioning piping systems.

Feature:

1. Only NC type solenoid valve is available.

2. Complete range of solenoid valves for refrigeration, freezing and air conditioning plant

3. Wide choice of coils for A.C. and D.C.

4. The sealed solenoid has a long service life and it can be used even in an adverse circumstance.

5. Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

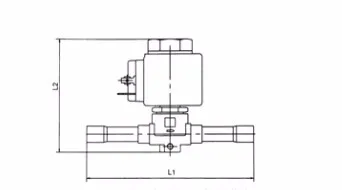

Dimensional Data:

Specification:

Type	Liquid flow capacity(KW)				Connection(in)		Porting (mm)	Kv valve m3/h	Dimension
Type	R12	R22	R502/R404a	R134a	SAE	ODF	Porting (mm)	Kv valve m3/h	L1	L2
ZRVS-1020/2	2.50	3.15	2.08	2.95	1/4		2.5	0.175	67	75
ZRVS-1020/3	3.30	4.15	2.75	3.90	3/8		3.0	0.230	75	75
ZRVS-1064/3	11.45	14.50	9.50	13.50	3/8		7.0	0.800	82	82
ZRVS-1064/4	11.45	14.50	9.50	13.50	1/2		7.0	0.800	83	82
ZRVS-1070/4	31.50	39.60	26.20	37.10	1/2		12.5	2.200	112	90
ZRVS-1070/5	37.20	47.00	31.00	44.00	5/8		12.5	2.610	121	90
ZRVS-1090/6	73.00	102.60	67.85	96.00	3/4		16.5	5.700	150	110
ZRVS-1090/7	73.00	102.60	67.85	96.00	7/8		17.0	5.700	150	110
ZRVS-1028/2	2.50	3.15	2.08	2.95		1/4	2.5	0.150	125	75
ZRVS-1028/3	3.30	4.15	2.75	3.90		3/8	3.0	0.230	125	75
ZRVS-1068/3	11.45	14.50	9.50	13.50		3/8	7.0	0.800	111	82
ZRVS-1068/4	11.45	14.50	9.50	13.50		1/2	7.0	0.800	127	82
ZRVS-1078/4	31.50	39.60	26.20	47.10		1/2	12.5	2.200	127	90
ZRVS-1078/5	37.20	47.00	31.00	44.00		5/8	12.5	2.610	175	90
ZRVS-1098/6	73.00	102.60	67.85	96.00		3/4	16.5	5.700	250	115
ZRVS-1098/7	73.00	102.60	67.85	96.00		7/8	17.0	5.700	278	172

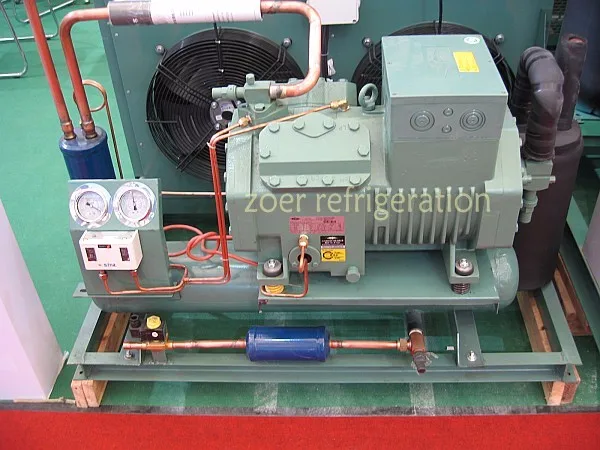

Application:

Exhibition we attended:

Certification:

Company profile
ZhuoEr was founded in 2015, comes from a factory with 10 years' professional experience of refrigeration components manufacture(original company name:Xinchang Zhuoer Refrigeration Co.,Ltd),specialized in manufacture refrigeration products, and organized to expand production, and get self-management of export for our perfect components to the whole world.

Development
ZhuoEr has developed as a group owning professional skilled technology and solid enterprise cohesive force, top quality and customer satisfaction at the first level is our target. We commit ourselves to continuous absorption of advanced technology and superior management from domestic and international markets, and introduced advanced equipments, such as highly automatic CO2 Brazing Machine, Automatic Molecular Staffing Machine and Electrical Pressure Testing Equipments, etc.

ZhuoEr uphold mature and scientific management, such as 6S field management system, making production according to European quality requests and safety regulations successfully, approved & registered ISO9001: 2008 Certification and PED Certificate.
Our components have a well market-share in both domestic and international markets, and exported to worldwide, mainly in Europe, India, Saudi Arabia, America, Asia and everywhere in the world.

Products
Our components including Filter Drier, Suction Line Accumulator, Oil Separator, Oil Receiver, Filter drier Core Shell, Liquid Receiver, Nuts & Adapters, all are compatible with all available new eco friendly refrigerants,

All components are developed and manufactured inside the factory itself. The wide range of standard components can be found in our catalogue is further enriched by the special components which ZhuoEr R&D designs according to the customer's specific needs, and OEM is available.
