single stage vacuum pump vacuum suction pump 1.8 cfm VP115

FOB Price:

USD 1-50 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

50000 Twenty-Foot Container per Year

Port:

NINGBO or SHANGHAI

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C, T/T, PayPal

Brand:

Yangyi

Products Model:

VP115

Products Details
Company Profile

Quick Details

Brand Name: Yangyi

Model Number: VP115

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: color box and carton, customizable logo brand according to customers's request
Delivery Detail: Shipped in 3 days after payment

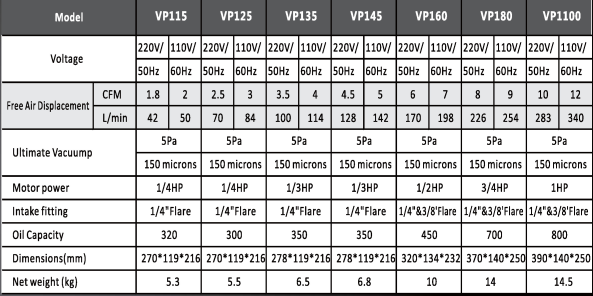

Specifications

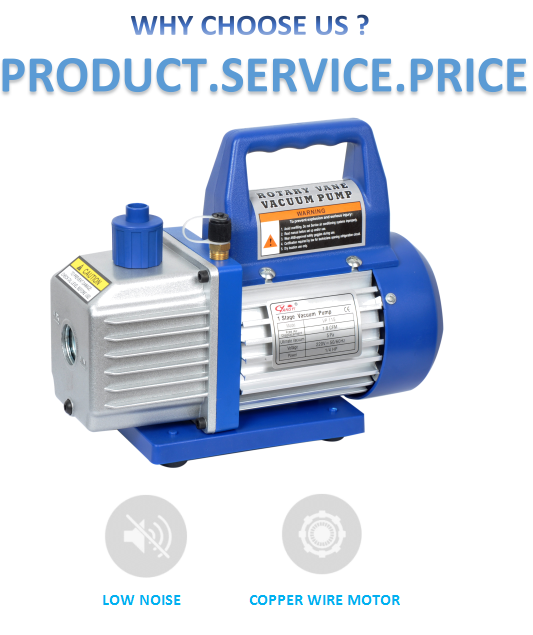

Single Stage Vacuum Pump VP115

Structure chart

1	Fan Cover	24	Die cast aluminum housing
2	Cross screw	25	Sight glass
3	Fan	26	Oil drain
4	Motor cover	27	Oil drain screw O-ring
5	Power supply cords	28	Screw
6	power switch	29	Sealing ring
7	Undee washer	30	Screw
8	Bearing	31	Rubber foot
9	Motor rotor	32	Base plate
10	Capactitor box	33	Self tapping screw
11	Centrifugal switch	34	Back pump cover
12	Motor stator	35	Oil seal
13	Casing	36	Back pump body
14	Capacitor	37	Back-rotary vane
15	Handle	38	back pump cover
16	Trestle	39	Spring
17	Gas cap	40	Middle fense
18	Intake nozzle	41	Front pump body
19	Screw	42	Front pump rotor
20	Front rotary vane	43	Front cover
21	Spring	44	Oil seal
22	Cap board	45	O type ring
23	Drip Catcher	46	Screw

Packaging & Shipping

Packing Details

Packing :calor box + cartons,within pump oil and instructions

About Shiping

	Southeast Asia	South America	Southern Europe
POL	Ningbo / Shanghai / Shenzhen /, FOB,CIF,EXW,CFR
By Sea	4-5 days	about 30 days	about 25 days
By Air	1-2 days	1-2days	about 4 days
