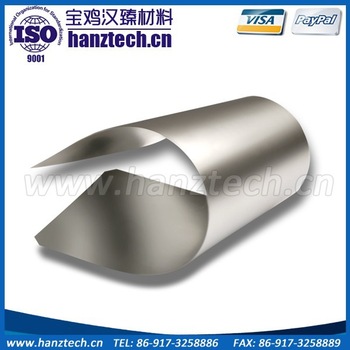

Titanium foil

Product Introduction

Titanium foil is a thin sheet of titanium metal that is typically less than 0.5 millimeters thick.

Titanium foil is produced through a process known as rolling, which involves passing a titanium ingot through a series of rollers to gradually reduce its thickness. The resulting titanium foil is typically very thin, with a thickness ranging from a few micrometers to a few millimeters. Titanium foil is valued for its high strength-to-weight ratio, excellent resistance to corrosion, and biocompatibility with the human body.

What is titanium?
Titanium is a relatively new type of metal that exhibits unique properties which are affected by the presence of impurities such as carbon, nitrogen, hydrogen, and oxygen. The impurity content in pure titanium is typically less than 0.1%, resulting in a metal with low strength but high plasticity. For industrial purposes, titanium with a purity of 99.5% is commonly used. This grade of titanium has a density of 4.5 g/cm³, a melting point of 1800℃, and a thermal conductivity of 15.24 W/(m.K). It also has a tensile strength of 539 MPa, an elongation of 25%, a section shrinkage rate of 25%, an elastic modulus of 1.078 × 10⁵ MPa, and a hardness of HB195.

Parameter
Mateial: titanium
Grade: Gr 1, 2, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI), 15V-3Al-3Sn-3Cr
Thickness: 0.01-0.1mm
Wideth: 10-500mm,customized
Length: 10-1000mm, customized
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Standard: ASTMB265
Ti Content (%): 99.6%

Features
1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but also lightweight. This makes it ideal for applications where weight is a critical factor, such as aerospace and sporting goods.

2. Excellent corrosion resistance: Titanium has excellent resistance to corrosion, which makes it useful in harsh or corrosive environments, such as marine or chemical processing applications.

3. Biocompatibility: Titanium is biocompatible, which means that it is not harmful to living tissue or the human body. This makes it useful for medical implants such as dental implants, joint replacements, and pacemakers.

4. Low thermal expansion: Titanium has a low coefficient of thermal expansion, which means that it does not expand or contract significantly with changes in temperature. This makes it useful in applications where dimensional stability is important, such as precision engineering.

5. High melting point: Titanium has a high melting point of 1,668°C (3,034°F), which means that it can withstand high temperatures without melting or degrading. This makes it useful in high-temperature applications such as jet engines and furnace components.

6. Good electrical conductivity: Titanium has good electrical conductivity, which makes it useful in electronic applications such as capacitors and batteries.

7. Ductility: Titanium is ductile, which means that it can be easily formed into different shapes without cracking or breaking. This makes it useful in applications where complex shapes are required, such as aerospace components.

Application
1. Aerospace: Titanium foil is used extensively in the aerospace industry for a variety of components such as engine parts, structural components, fasteners, and landing gears. Its high strength-to-weight ratio makes it ideal for reducing the weight of aircraft while maintaining strength and durability.
2. Medical: Titanium foil is also used in the medical industry for implants such as dental implants, joint replacements, and pacemakers. Its biocompatibility with the human body and excellent corrosion resistance make it an ideal material for these applications.
3. Electronics: Titanium foil is used in the electronics industry for a variety of applications such as capacitors, batteries, and other electronic components. Its good electrical conductivity and resistance to corrosion make it ideal for these applications.
4. Automotive: Titanium foil is used in the automotive industry for exhaust systems and other components that require high strength and corrosion resistance. Its ability to withstand high temperatures without degrading makes it ideal for these applications.
5. Sporting goods: Titanium foil is used in the production of sporting goods such as golf clubs, tennis rackets, and bicycles. Its high strength-to-weight ratio and resistance to corrosion make it an ideal material for these applications.
6. Jewelry: Titanium foil is also used in the production of jewelry due to its unique properties such as its resistance to corrosion and biocompatibility with the human body.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
