Two Way Electric Fan Coil Unit Motorized Control Valve

Two Way Electric Fan Coil Unit Motorized Control Valve

FOB Price:
USD 11-35 / Piece
Min.Order Quantity:
50 Piece
Supply Ability:
30000 Piece per Day
Port:
Tianjin,Qingdao,Beijing
Place of Origin:
Beijing,China
Payment Terms:
T/T, Western Union, MoneyGram, Cash
Brand:
Hailin
Products Model:
HL-G2
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Hailin

    Model Number: HL-G2

    Place of Origin: Beijing,China

Packaging & Delivery

  • Packaging Details: Carton case packing
  • Delivery Detail: 3-5 days for standard,

Specifications

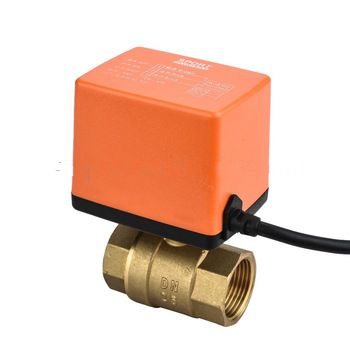

Two Way Electric Fan Coil Unit Motorized Control Valve

HL-G2 Model is a series of two-way motorized valves with screw connection;the valve and actuator can be seperated in two units.When a thermostat send the control signal to the motorized valve,the valve is opeded with water flowing. The signal disappears;the valve will be completely closed by its own spring.

1.All valves conform with the Eu Pressure equipment Directive PED97/23/EC

2.All actuators confirm with the protection requirements of Counil Directive 89/336/EEC relating to electromagnetic compatibility (EMC)

3.Forging brass body

4.Stainless base with aluminum shell

5.Synchromoter drive

6.Efficient power consumption and less noise

7.BSPP/NPT connections

8.Strong seaworthy packing suitable for export

Specification:

Power supply: 220vAC 110VAC.24Vac

Pressure: 1.6Mpa

Valve Action Time: Open <10s.Return <6s

Power consumption: <7w

Media Temp:5-90℃

Working Environment:5-60℃,10%-95%RH

Medium:Hot or cold water use up to 50%Glycol

Weight:0.95kg(net),0.99kg(Gross)

Dimension:11.6*10.7*7.2mm

Packing Dimension(20pcs):52*41*19.5mm







Beijing Hailin Control Technology Inc. is a kind of R&D manufacture of thermostat, DDC, sensor, automatic control valve and building automation system, energy management system and smart home system etc hvac control product.

Hailin uses automatic control technology to monitor, control, analyze and manage the air conditioning, heating, fresh air, hot water, lighting, curtains and temperature, humidity, air quality and energy consumption in the building to achieve a comfortable and healthy indoor environment in the building and energy saving.

If any needs on motorized valves,welcome to contact anytime.
