The meaning and use of high-voltage cables for automobiles

Simple overview: The purpose of any HV electrical system is to transfer HV energy between the power supply and the receiving connector, maintaining the energy output with the vehicle.

What is the definition of high voltage? High voltage is defined as the amount of voltage power above a conventional standard or threshold. Two points related to high voltage describe its nature: it creates sparks in the air and an electric shock when a person is near it. The voltage may be related to both conductors of the system or to the conductor and the ground. For example, any voltage above 35,000 volts is considered high voltage when it comes to power transmission. The design and insulation of the equipment is critical to its classification.

High-voltage cables for automobiles are used in battery systems, powertrain, high-voltage electric control systems, charging systems, high-voltage equipment and other wiring harness systems. Application characteristics of cables for electric vehicles: small wiring space, high current and high voltage, high and low temperature environments, poor heat dissipation, harsh driving environments with salt spray and electromagnetic fields, oil and chemicals, low smoke and halogen free flame retardant and other environmental and safety requirements.

Characteristics of high-voltage power cables: High-voltage power cables are inherently special and are used with specific switches and switchboards.

Maintenance of high voltage power cables: It is critical to ensure that the high voltage cables installed for underground transmission are of the highest quality. When purchasing the correct high voltage power cable, make sure it is durable enough to withstand extreme conditions. Considering that this cable handles high voltage that can lead to severe electric shocks, the material should be made of high quality materials and some energy saving techniques must be used.

For cable maintenance, it is necessary to check the cleanliness of the surrounding environment. Regularly clean the surrounding area from debris or dust and regularly check its cable joints, fusion points and other ground connections.

Perform the necessary tests to keep up with the maintenance of high voltage power cables. Cable testing and cable diagnostics are required to determine the current condition of the cable and locate any damage.

High voltage power should not be taken lightly. Often used in commercial, residential and industrial environments, etc., high-voltage power cables must be inspected regularly to save any money or avoid unnecessary power outages. However, for electric vehicle high voltage cables, the power cables used in the vehicle also need to be inspected regularly to ensure safe driving.

Any voltage above 50 volts is considered dangerous to living creatures, emphasizing the need for increased safety and ensuring that the circuit also meets safety standards. Any power source above 1000 volts is also high voltage. Keeping this in mind, ultra-high voltage or EHV is a voltage between 345,000 and 765,000 V.

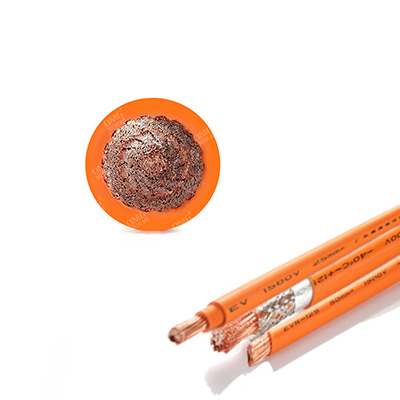

Among other things, OMG cable products have the following advantages: products are soft, feel good, bend radius less than 5D; oil, acid and alkali resistant, water resistant, wear resistant, tensile resistant, rolling resistant, crack resistant, UV resistant, color stable; good flame retardant properties; bending resistance more than 50,000 times; all materials comply with ROHS 2.0 and meet environmental standards # OMG cable. Welcome to visit: https://www.omgevcable.com
