5W shaped pole fan motor,shapde pole fan motor

Price:

USD 1.50-8.00 / Piece

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

500000 Piece/Pieces per Month

Port:

NINGBO

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: Standard export package
Delivery Detail: --

Specifications

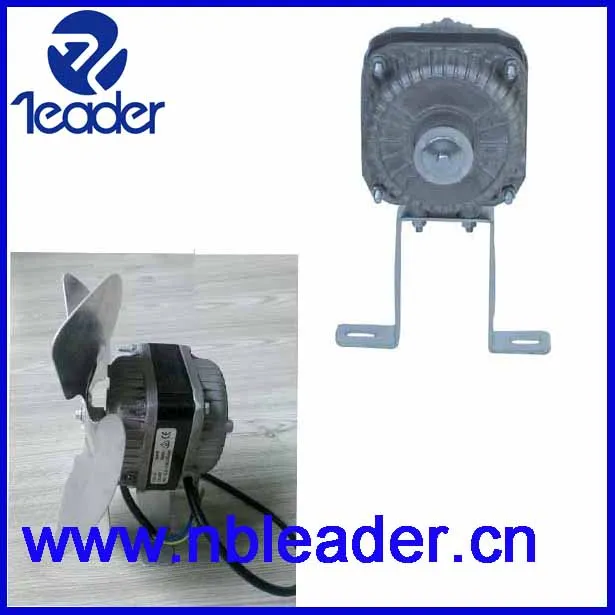

5W Shaped Pole Fan Motor,Shapde Pole Fan Motor

Feature:

* LM series motors are shaded pole motors with single phase,4 shaded poles and running at rated voltage of 220V~240V,50/60Hz or 110~120V,60Hz.

They are widely used in the radiator,evaporator and other refrigeration equipment.

* Insulation Class:B
* Protection Class:IP42(Standard),IP44(Optional).
* Bearing:Oil Sleeve Bearing(Standard),Ball Bearing(Optional).

* Shaded pole motor rotation:CW or CCW

* Cable:Copper wire or CCAW

* Direction of fan:Sucking or Blowing

* Inner copper wire wrapping Structure: Siamesed or Detached.

* Shaded pole motor accessories:Fan Bracket,Ring and Grid.

* The output poer is from 5W to 34W,which is relative to the stack length.

* The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135 °C for outpower above 10W.

* The applicable ambient temperature is from -30°C to +50°C.

Shaded Pole Fan Motor: 5w-34w

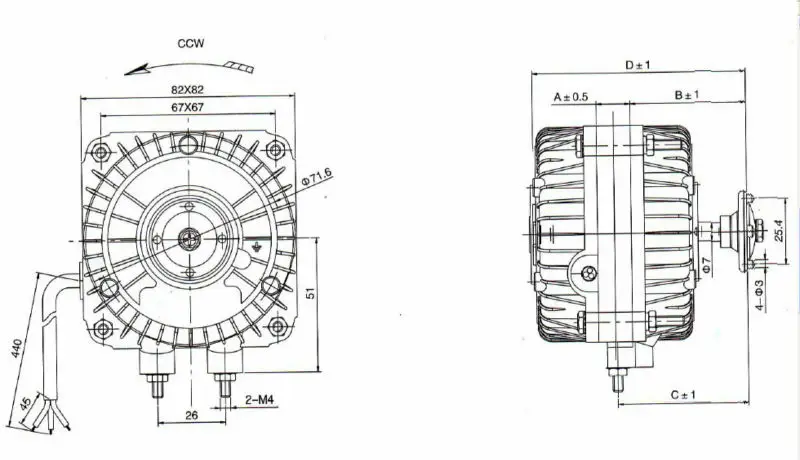

Specifications:

Attachments:

Fan Bracket,Blade and Ring
