Large capacity-96 telephone optical transceiver-ZMUX-3300 BT96 Large capacity-96 telephone optical transceiver-ZMUX-3300 BT96

Large capacity-96 telephone optical transceiver-ZMUX-3300 BT96

Price:
 Open price
Min.Order Quantity:
1 Pair
Supply Ability:
8888 Pair per Month
Port:
ShenZhen / GuangZhou
Place of Origin:
GuangZhou
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Credit Card, PayPal, Escrow, Cash
Brand:
YINXUN
Products Model:
ZMUX-3300 BT96
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YINXUN

    Model Number: ZMUX-3300 BT96

    Place of Origin: GuangZhou

Packaging & Delivery

  • Packaging Details: Carton packaging + avoid collision foam
  • Delivery Detail: 7 day

Specifications

The 96-channel telephone optical transceiver is a centralized integrated service access platform ZMUX-3300 BT96 independently developed and produced by Guangzhou Yinxun Communication Technology Co., Ltd. It can be based on optical fiber or E1 line, and can meet the unification of 64K narrowband services and broadband data services. Access, multiplexing and transmission requirements are applicable to provide users with large-capacity business access and transmission services.

ZMUX-3300 BT96 is composed of chassis, power board and IO business board. The chassis adopts a standard 19-inch 6U high, card-type structure, with a total of 16 board slots, including 2 power board slots, 14 IO business board universal slots, which can be flexibly configured according to different needs of business capacity or type : Optical transmission boards, cross-connect boards, cross-multiplexing boards, multi-service interface boards, voice interface boards and other general-purpose IO boards, which mainly complete telephone, audio, data, image and other integrated service access, and are multiplexed to optical fiber or E1 Line to realize point-to-point or point-to-multipoint communication of integrated service signals.

In addition to ZMUX-3300 BT96, you can also use ZMUX-300 + ZMUX-30 combination mode!



Features


Large capacity: It adopts a 19-inch 6U chassis, which can provide 1 to 96 channels of service access, and can be expanded up to 420 channels of general services.

Safe and reliable: adopting a distributed structure, each IO business board works independently of each other, and the failure does not affect each other.

Dual power protection: optional dual power input 1 + 1 protection, dual power supply board redundant backup; central office equipment, remote equipment, each equipment can provide two completely independent power supply boards, main and backup protection;

Power monitoring: support the real-time monitoring of the working status of the built-in power board of the central office equipment and remote equipment, and the real-time monitoring of the working status of the external Emerson switching power supply;

Transmission link: optional optical fiber or E1 line transmission mode to achieve unidirectional or multidirectional communication.

Flexible configuration: optional optical transmission board, cross-connect board, cross-multiplexing board, multi-service interface board, voice interface board and other general-purpose IO boards.

Multiple service types: optional FXO / FXS, 2 / 4-wire E & M, asynchronous / synchronous RS232, asynchronous / synchronous RS422, RS485, 10 / 100BASE-T, V.21 / V.22, V.24, V.34, Switch value, CAN bus, magnet phone, hotline phone, V.35, G.703 co-directional 64k, ADS-B radar, VHF VHF, synchronous radar data, meteorological observation data, transmission data, meteorological radar data, Blind drop of data and other services.

Centralized monitoring system: optional network management function, which can monitor equipment configuration information, transmission link status, link protection status, and user interface status of the entire network.

Networking application

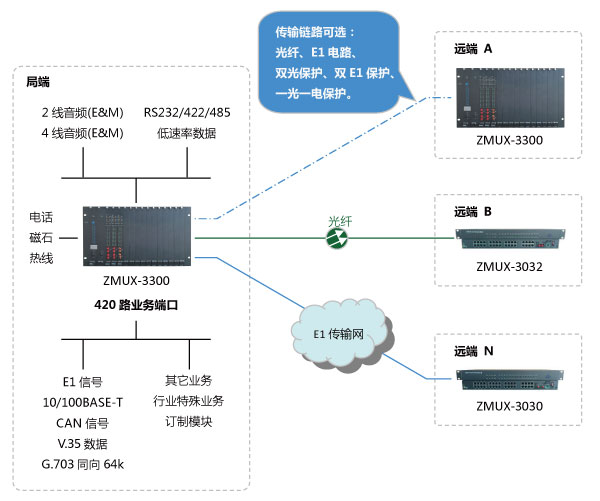

90路电话光端机点对多点组网图

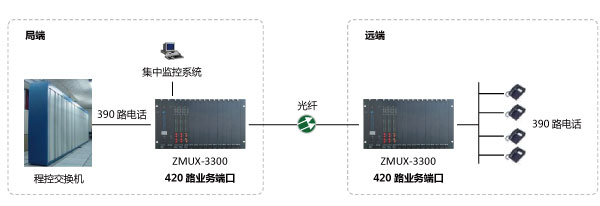

90路电话光端机点对点组网
