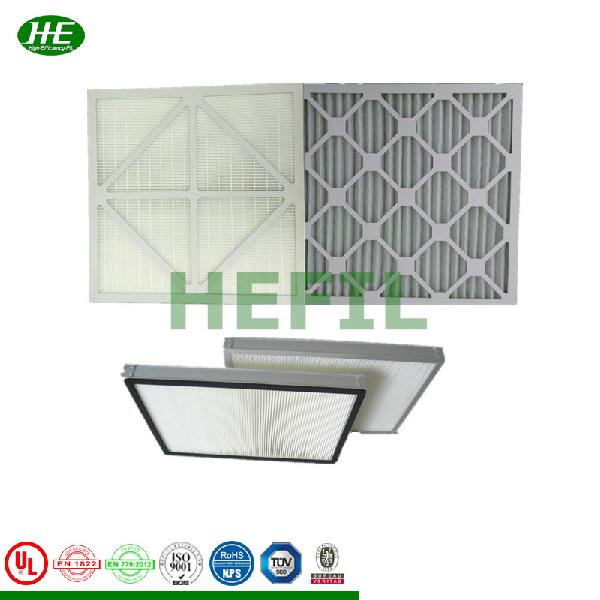

Primary Efficiency Cardboard Pre Panel Air Filter for HVAC System

Primary Efficiency Cardboard Pre Panel Air Filter for HVAC System

Price:

US 5-60 / piece

Min.Order Quantity:

1 piece

Supply Ability:

per

Port:

Shanghai, China

Place of Origin:

Shanghai

Payment Terms:

T/T

Brand:

Hefil

Products Model:

HPP

Products Details
Company Profile

Quick Details

Brand Name: Hefil

Model Number: HPP

Place of Origin: Shanghai

Specifications

Advantages
Filtration efficiency rating from G3 to M5, traps 40~60% of ≥5.0μm particles.
Use special low-resistance and high-throughput non-woven fabrics as the filter material, with high dust-holding capacity.
There are cardboard, galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic frame.
Meet EN779:2012.

Material Instructions
Media: Non-woven fabrics with pleated mesh supporter or metal pillar.
Frame: Cardboard, galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic.
Temperature: Maximum 90°C in continuous service.

Application
Suitable as pre-filter used to protect high-performance filters, and filtration of fresh air in clean room ventilation system and airport, subway, shopping malls and other places of public services.

Primary Filter: G3 to M5

Structure Drawings
Primary Efficiency Cardboard Pre Panel Air Filter for HVAC System

Common Specifications Common Specifications Model Dimensions Rated Air Flow (m³/h) Initial Pressure Drop (Pa) Media Area
(m²) Pitch
(mm) W×H×D (mm) Standard High Capacity Standard High Capacity HPP-12×24×1 290×595×23 600 1200 20 63 0.40 19 HPP-20×14×1 493×341×23 550 1100 0.39 HPP-20×15×1 493×366×23 625 1250 0.43 HPP-20×16×1 493×391×23 650 1300 0.45 HPP-20×20×1 493×493×23 800 1600 0.56 HPP-20×24×1 493×595×23 950 1900 0.65 HPP-24×24×1 595×595×23 1200 2400 0.83 HPP-25×14×1 620×341×23 700 1400 0.48 HPP-25×16×1 620×391×23 800 1600 0.57 HPP-25×20×1 620×493×23 1000 2000 0.71 HPP-14×20×2 341×493×46 850 1700 20 70 0.77 20 HPP-20×12×2 493×290×46 700 1400 0.70 HPP-20×16×2 493×391×46 900 1800 0.94 HPP-20×18×2 493×442×46 1050 2100 1.01 HPP-20×20×2 493×493×46 1200 2400 1.12 HPP-24×12×2 595×290×46 850 1700 0.79
