High and excellent quality fire retardant copper insulation pipe for single coil air conditioning

High and excellent quality fire retardant copper insulation pipe for single coil air conditioning

Price:

US 1-10 / Pieces

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Ningbo / Shanghai / Other

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: Simple Paper Box, Luxurious Paper Box, Plastic Package, Suitcase Package.
Delivery Detail: --

Specifications

Specification

Usage:

Save cost on insulate air conditioning compare with pure copper pancake kit.

Quality Assurance:
1. Welding point: no pores,cracks,slag,burrs and burn,not fusion
2. Air tightness: using a high pressure for 4.0MPa pressure for 5 minutes, no leakage;
3. Pressure: after the air tightness check is qualified, slowly press the pressure to 13MPa,keep for 1 minute, without any cracks ;
4. Bending: The sample is bent into a curved core diameter of 2 times than the nominal diameter of the pipe, after bending 180 degrees, the pipe does not produce wrinkles and cracks;
5. Tensile strength: The tensile strength is at 65-118mpa, the pull part is on the side of the aluminum pipe, and the weld is above 10mm;
6. KTG: Shrink good, sealed accessories have been melted, completely wrapped in copper aluminum joints, the seal can not turn

Single Coil

Single Coil Description Copper tube outside diameter x wall thickness (mm) (mm)		Insulating thickness (mm)	Single Coils per carton	Carton Dimensions Single Coils Length (20m) (30m) (50m)
1/4"	6.35x0.80	9	1	51x51x14	53x53x15	59x59x19
3/8"	9.53x0.80	9	1	52x52x15	57x57x15	65x65x20
1/2"	12.70x0.80	9	1	54x54x17	61x61x16	65x65x20
5/8"	15.88x1.00	9	1	65x65x19	70x70x20	79x79x23
3/4"	19.05x1.00	9	1	68x68x19	74x74x20	85x85x24

Rubber Insulation Properties

Extruded and closed cell synthetic rubber with external protection.

DENSITY (KG/M3):70-90

THERMAL CONDUCTIVITY	-20℃	0℃	40℃
( W/(M.K) )	0.031	0.034	0.038

Working temperature from-50℃ until +110℃ ( Flat surfaces + 85℃ ).
Reaction to fire: self-extinguishing GB 8624B1 (OXYGEN INDEX >34%).

Non-flammable.
Vapour resistance: μ>4500.

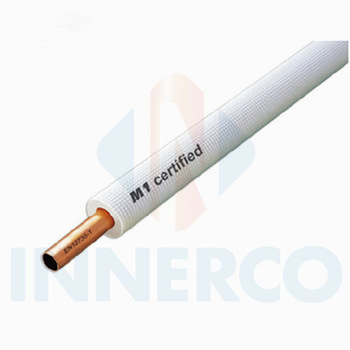

Fire Retardant Pipe

Insulation Properties

Extruded and closed cell white polyethylene with a white outside PE-protection layer.

White external non toxic and resistance to external.

Product Name	Insulation Pipe
Fire retardant certification	M1 VHF-1
Heating conduction	0℃ ≤0.033W/mK
Average Density	33Kg/m^3
Working temperature	-40℃ until +105℃
Vapour resistance	μ>5000
chemical agents and ultra	violat rays
RoHS Certificate	Approved

Air Conditioner Installation Kit

Rubber Insulation Pipe
