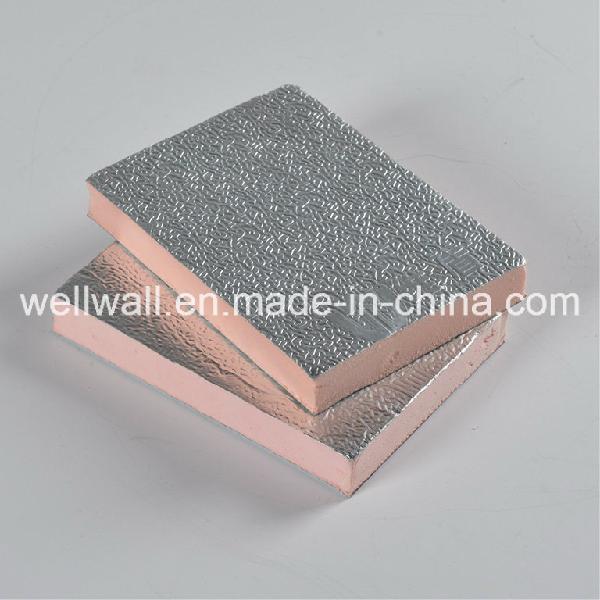

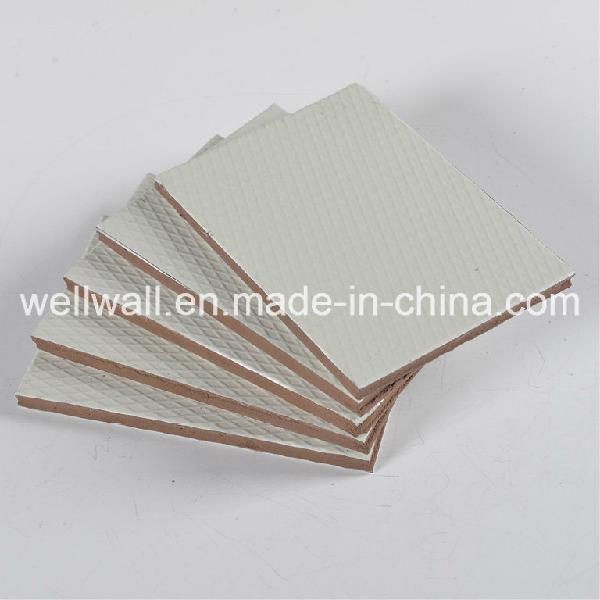

PF Board Wall Insulation Phenolic Foam Panel

PF Board Wall Insulation Phenolic Foam Panel

Price:

US 1-10 / Piece

Min.Order Quantity:

1000 Pieces

Supply Ability:

1000000 Square per Meter

Port:

Shanghai, China

Place of Origin:

Wuxi

Payment Terms:

L/C, T/T, Western Union, Paypal, Money Gram

Brand:

WELLWALL

Products Model:

WW-W5-SL

Products Details
Company Profile

Quick Details

Brand Name: WELLWALL

Model Number: WW-W5-SL

Place of Origin: Wuxi

Specifications

Phenolic foam air duct panels are widely used in central air conditioning ventilation system. Compared with the traditional air ducts, phenolic foam compound panels have the features of better insulation effect, noise elimination, light weight, long using life, extensive application,etc.

Phenolic foam panels materials:
1. Surface for both side: Aluminium foil, Galvanized sheet, colored steel plate, painted steel plate.
2. Inside: Phenolic Foam.

More details about Phenolic Foam:

Phenolic foam is one of the best fireproof and thermal insulation material,better than EPS, XPS, and PU foam.
It's cell-closed structure, over 90% closed cell.
Density vary from 35 kg/m³ to 100 kg/m³. Light weight
Low thermal conductivity. It is generally between 0.022 W/m.K and 0.028 W/m.K.
It has fire retardant properties and a low smoke level
It is waterproof
Environmental friendly. Zero CFC & HCFC
Long service life, more than 20 years
Widely used for Fireproof door, roof & wall insulation, HVAC System

Technical Parameters:

Item	National Standard	Specification	Test method
Density	>=50kg/m3	55 kg/m3	GB/T 6343-2009
Coefficient of thermal conductivity	<=0.035W/(M·K)	0.026 W/(M·K)	GB/T 10294-2008
180 ° peel strength	>=0.15N/mm	0.70N/mm	GB/T 2790-1995
Compression strength	>=0.15Mpa	0.16Mpa	GB/T 8813-2008
Bending strength	>=1.1Mpa	1.2Mpa	GB/T 8812-2007
Dimension stability	<=2%	0.5%	GB/T 8811-2008
Formaldehyde Emission	<=1.5Mg/L	1.3Mg/L	GB 18580-2001
Combustion performance	>=B	Class 0 (BS476 Part 6 & 7) Class A (ASTM E84)	EXOUV

How the Phenolic foam is processed:
PF Board Wall Insulation Phenolic Foam Panel

Factory review:
PF Board Wall Insulation Phenolic Foam Panel

Certification: ISO9001 & CLASS 0
PF Board Wall Insulation Phenolic Foam Panel

Our Factory Advantage:
Fast delivery time(within 7 days when received deposit)
High-grade and stable quality (passed NFTC and EXOUV testing)
Competitive price
Fast reply and good after-sales service.

Please contact with us for more details:
Sales Manager: Amanda
Mobile: +86 15706186955

Jiangyin Wellwall Insulation Materials Co., Ltd. is an independent innovative enterprise integrating R&D, manufacturing, sales and engineering services. The company has been focusing on the production of phenolic foam sheets and composite products, and has 12 years of production experience. The company is located in Jiangyin City, Jiangsu Province, 2 hours drive from Shanghai, with a very convenient transportation advantage.

The company occupies 40 acres and has 120 employees. Our company has four international advanced phenolic foam insulation board automatic production line, and equipped with relevant inspection and testing equipment, specializing in green, low carbon, energy saving, fireproof, environmental protection, heat preservation, light weight, high pressure, sound insulation, beautiful phenolic foam board and Production of composite materials. The company has a series of products: phenolic composite duct board series, phenolic external wall insulation board series, anti-corrosion silencer exhaust duct sheet. The company has an annual production capacity of 7 million square meters of phenolic composite air duct for central air conditioning, 500,000 cubic meters of phenolic external wall insulation board, and 3 million square meters of anti-corrosion silencer exhaust duct sheet. In 2015, 2016 and 2017, the country achieved the first national output for three consecutive years.
