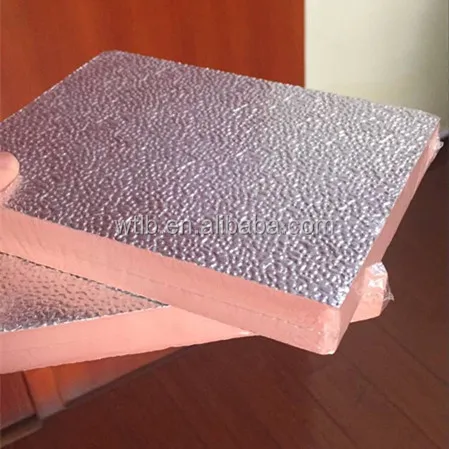

Phenolic Foam Insulated Air Duct

Price:

US 2.5-3.5 / Square

Min.Order Quantity:

3000 Square Meter/Square Meters

Supply Ability:

per

Port:

Shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: plastic film and carton.
Delivery Detail: --

Specifications

Technical Data Sheet of Phenolic Foam Air Duct Panel
ITEM	UNIT	SPECIFICATION
Density	kg/m3	50~65
Double side Aluminum thickness	mm	0.06
Total thickness	mm	20
Thermal Conductivity	w/m.k	0.02
Flexural Strength	Mpa	1
combustion property	~	Class “0” BS Part6&7
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature	C	-180 to150
Standard Size	mm	3000(4000)120020
