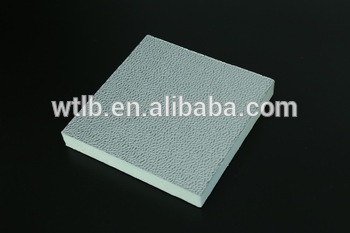

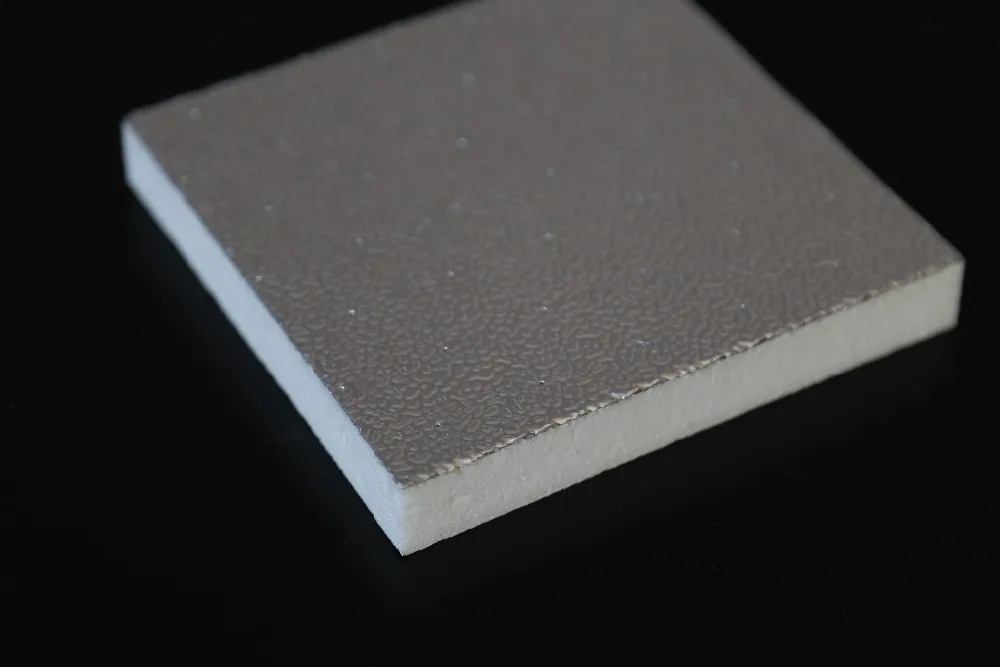

Air conditioning duct board PIR/PU sheet

Air conditioning duct board PIR/PU sheet

Price:

US 7-8 / Square

Min.Order Quantity:

1000 Square Meter/Square Meters

Supply Ability:

per

Port:

fobshanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: 10SHEETS/PACKAGE/
Delivery Detail: --

Specifications

Technical Data Sheet of PUR

PU foam air duct panel

PIR foam air duct panel

Sandwich Panel
1.Density:55kg/m3
2.foil thickness:0.08mm
3.Total thickness:20mm
4. Dimension:1200x3000/4000mm

ITEM	UNIT	SPECIFICATION
Density	kg/m3	55
Aluminum thickness	mm	0.08
Dimension	mm	4000120020
Thermal conductivity	W/m.k	0.025
Fire proof performance	~	Flame Retardancy B1
Compressive strength	Kpa	220
Water absorption(% by volume)	~	0.001
Water vapor transmission	~	<0.0585
Max smoke density	~	0.02
Dimension stability	~	0.003
Working temperature		80 centigrade
