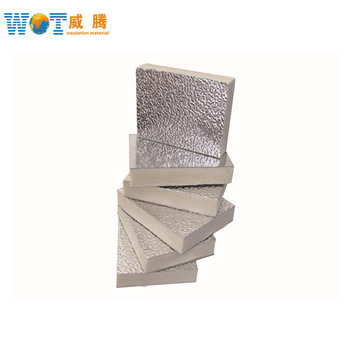

PIR/PU foam pre insulated duct panel

Price:

US 3-4 / Square

Min.Order Quantity:

100 Square Meter/Square Meters

Supply Ability:

per

Port:

Shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: Plastic films.
Delivery Detail: --

Specifications

Size:1200*3000/4000*20mm
Front and back: 40 microns embossed aluminum foil
Core material: extruded polystyrene
Class 0 BS476

Technical Data Sheet of PU Foam Air Duct Panel
ITEM	UNIT	SPECIFICATION
Density	kg/m3	40-45
Double side Aluminum thickness	mm	0.04
Total thickness	mm	20
Thermal Conductivity	w/m.k	0.02
Flexural Strength	Mpa	1
combustion property	~	Class “0” BS Part6&7
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature	C	-50 to75
Standard Size	mm	3000(4000)120020

Product description

board 20mm PU foam air duct panel
