phenolic foam board HVAC air duct panel

Price:

US 3-5 / Square

Min.Order Quantity:

1000 Square Meter/Square Meters

Supply Ability:

per

Port:

shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: carton
Delivery Detail: --

Specifications

Phenolic foam air duct panel:

ISO9001/SGS//BS test report

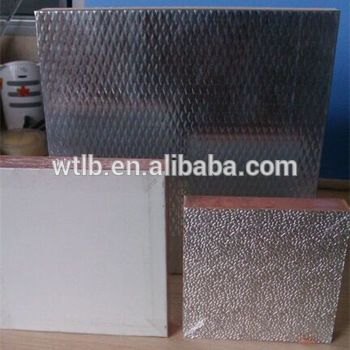

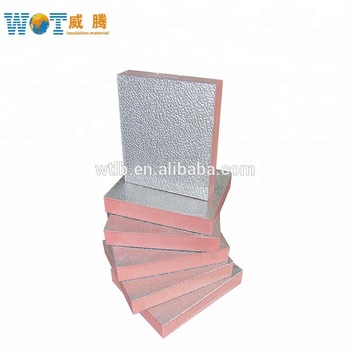

Phenolic Foam Air Duct Panel
Item No.: WT2-3A
Material: Double side aluminum foil+Phenolic Foam Air Duct
Thickness of aluminum foil: 80um
Total thickness: 20mm
Size: 1.2m(w)x4m(L)
MOQ: 210sheets(1008 square meter)

ITEM	UNIT	SPECIFICATION
Density	kg/m3	55-65
Double side Aluminum thickness	mm	0.08
Total thickness	mm	20
Thermal Conductivity	w/m.k	0.02
Flexural Strength	Mpa	1
combustion property	~	Non-combustible Class A
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature		-250 to150
Standard Size	mm	3000(4000)120020

Its widely used in insulation workshops, cleaning rooms, high class buildings, composite cold storages, containers, etc.

20140428144931_

A72E_

93C94837E2_

Accessories:

Accessories

QQ20180703142024_

HTB16f4nNVXXXXctXVXXq6xXFXXXk.jpg_.webp HTB1EGFRNVXXXXauXXXXq6xXFXXXY.jpg_.webp

certificate

workshop PACKING
