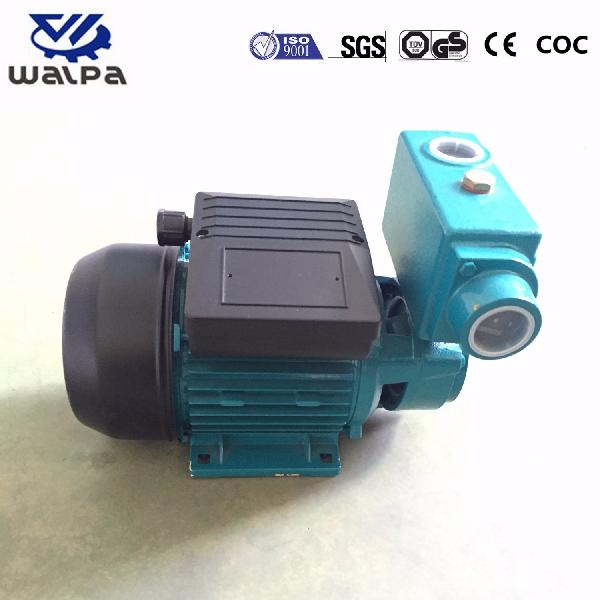

Small Electric Water Pump 0.5HP with High Quality & Cheap Price

Small Electric Water Pump 0.5HP with High Quality & Cheap Price

Price:
US 19-25 / Piece
Min.Order Quantity:
200 Pieces
Supply Ability:
  per
Port:
Fuzhou,Xiamen
Place of Origin:
Fujian, China
Payment Terms:
--
Brand:
WALPA or OEM
Products Model:
TPS60 0.37KW
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: WALPA or OEM

    Model Number: TPS60 0.37KW

    Place of Origin: Fujian, China

  • Position of Pump Shaft: Horizontal Pump

    Pump Casing Combined: Horizontal Split Pumps

    Mounting Height: Suction Centrifugal

  • Impeller: Closed

    Usage: Pump

    Speed: 2850r/Min

  • Insulation Class: B/F Is Available

    Protection Class: IP44

    Pump Body: Cast Iron

  • Front Cover: Cast Iron

    Motor Casing: Aluminum Alloy

    Shaft: 45# Steel / Stainless Steel

  • Transport Package: Carton

    Specification: package dimension: 265 x 185 x 235mm

    HS Code: 84137099

Specifications

TPS60 SELF-PRIMING WATER PUMPS


Applications & Installation

TPS series pumps are a good solution for self-priming because of the particular design of the pump body which is with a small tank. It is also with peripheral impeller and gain high pressure relative and its curves are steep particularly. These pumps have a compact size and are very economical, meets the most different operating requirements such as: supply water from well, pool and so on, increase the water pressure in the pipe, garden sprinkling and clean washing.



Small Electric Water Pump 0.5HP with High Quality & Cheap Price



.
Performance

TYPE  Output Power Current Capacitor H.max Q.max Size S.Head N.W Package Dimention
Kw HP (A) (uF) (m) (L/min) (inch) (m) (kg) L×W×H(mm)
TPS60 0.37 0.5 2.5 8 36 35 1"*1" 9 7.7 265×185×235

Working Limits
★ Max fluid temperature up to 80°C
★ Max ambient temperature up to 40°C


Motor
★Two-pole induction motor
★ The speed is 2850 r/min
★ Insulation Class: B/F is available on request
★ Protection Class: IP 44
★ Continuous duty
★ Cooling: External ventilation
★ Total suction lift up to 8 mt.


Materials
★ Pump Body: Cast iron
★ Front Cover: Cast iron
★ Motor Casing: Aluminum alloy
★ Impeller: Brass / Noryl / Stainless steel.
★ Shaft :45# steel/Stainless steel
★ Mechanical Seal: Ceramic/Graphite/ Silicon carbide


Notes
Pumps should be installed in a dry and covered area, protected against the weather.
